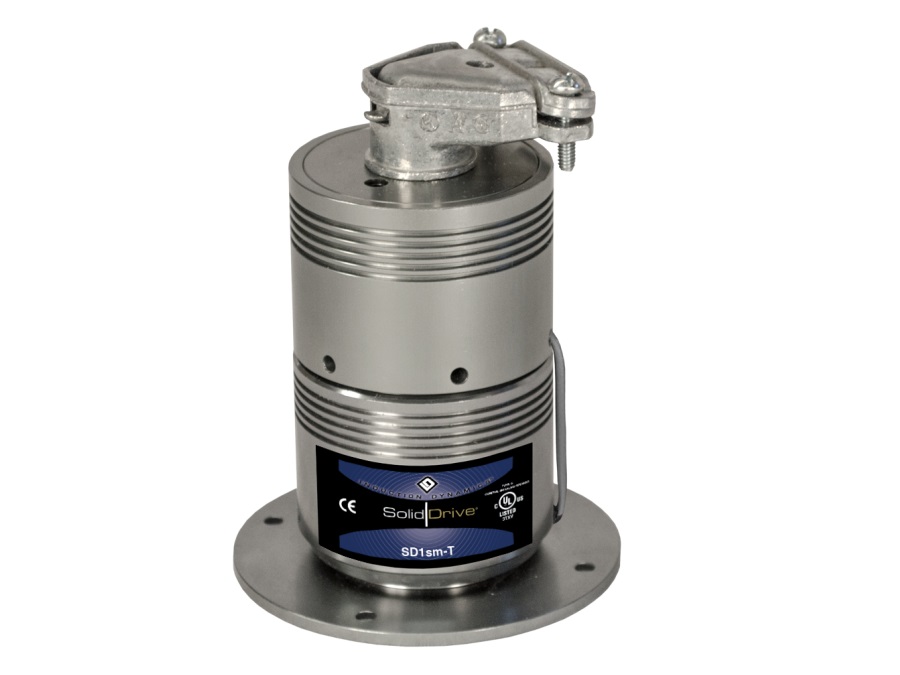

Soliddrive SD-1SM-T Wood Surface Mount Actuator with Transformer in Titanium

Description

The SD1sm-T can be installed onto wood and other hard surfaces. For best results, our engineers recommend trying out the SolidDrive on the desired surface before installing. Each SD1sm-T is designed for one channel of audio. SolidDrive utilizes patent-pending dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate. Using high-powered neodymium magnets and dual symmetrically opposed motors, SolidDrive converts audio signals into vibrations that transfer into solid surfaces through direct contact. The result is high-quality, full-range sound that radiates from the entire surface with a frequency response of 70 Hz to 15 kHz. The symmetrically opposed neodymium magnets and specifically engineered mounting hardware provide hidden planar-source acoustics and uniformity throughout the listening space.

Features:

• SolidDrive is a patented technology that utilizes neodymium magnets and dual symmetrically opposed motors to convert audio signals into acoustical energy in a wide variety of substrates.
• Includes an integrated transformer for 70.7V and 100V applications.
• With direct contact to glass, drywall and tabletops, SolidDrive-T units radiate full-range sound across the entire surface.
• Full-frequency sound can be delivered from 60 Hz – 15 kHz with a max SPL of 85 dB and a coverage angle greater than 120º (60 Hz – 3 kHz).
• With transformer taps between 2.5 – 10 W, SolidDrive-T units can deliver single to multichannel audio for distributed audio applications.
• Patented balanced cantilever spring bracket for behind-wall mounting allows for a completely hidden speaker system in drywall applications.
• For extended system performance, subwoofers are available.
• SolidDrives operate in a virtually friction-free environment and are engineered for infinite life. Induction Dynamics SolidDrives come with a 7-year warranty.
