Wall-Smart 033-1-917 Flush In-Wall Adapter 2G Keypad / Depth Calibration / Spacer

Description

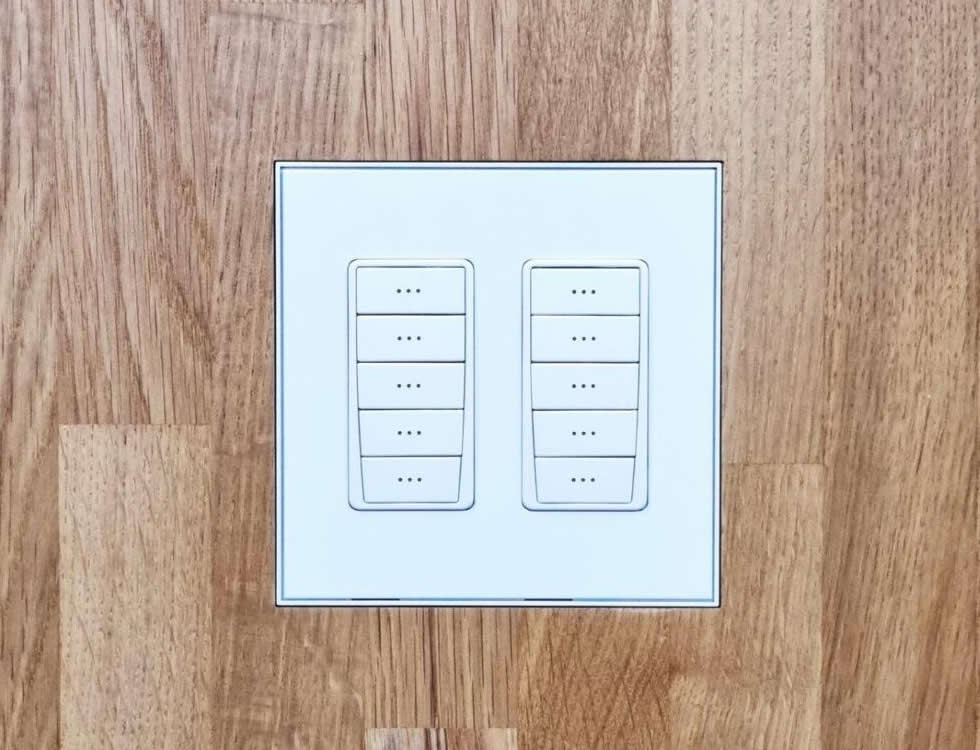

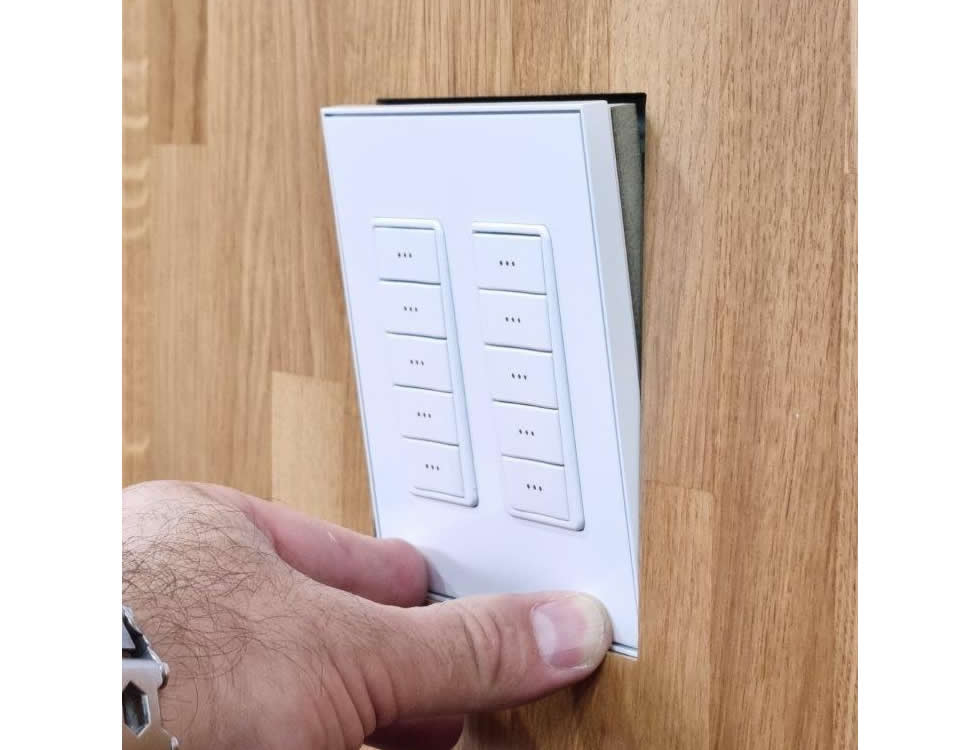

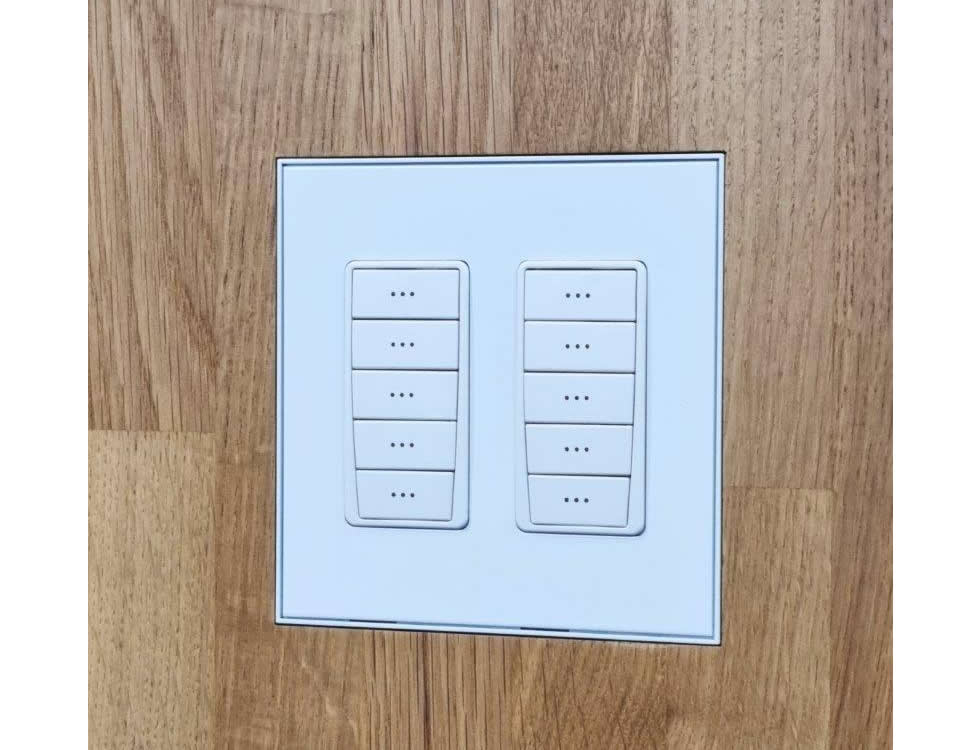

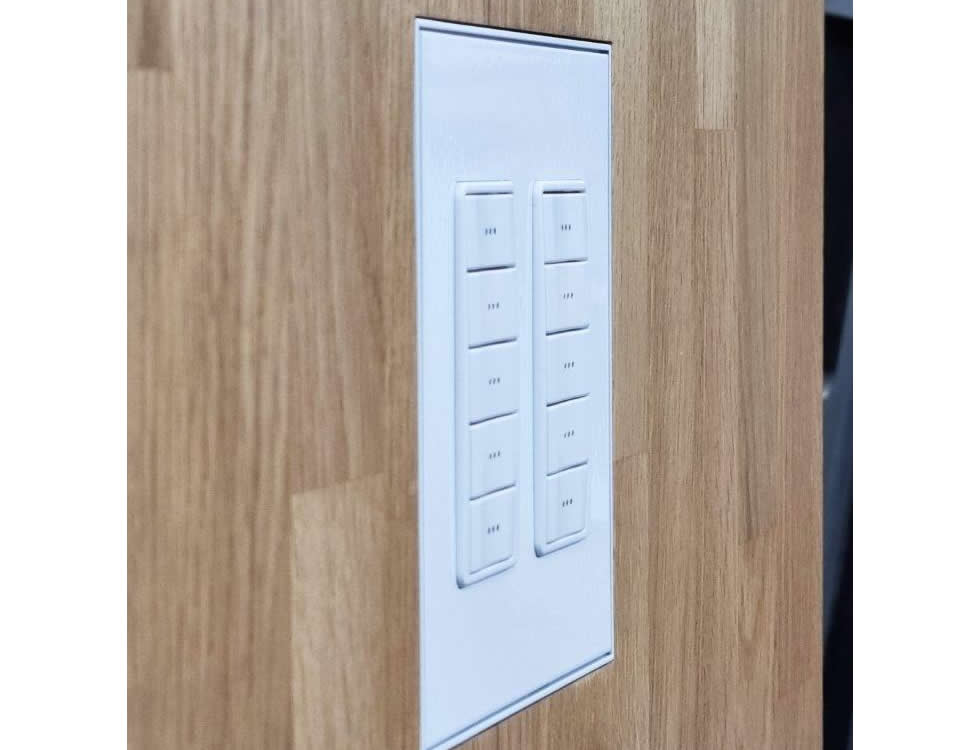

The flush in-wall adapter provides a secure mounting solution for 2G touch keypads intended for installation in solid board walls. It positions the keypad flush with the finished wall surface while preserving access for maintenance and service. The adapter is a passive mechanical accessory that does not require power and is engineered for professional AV installations.

The adapter includes a depth calibration mechanism and a removable spacer to accommodate a broad range of board thicknesses. With the spacer installed the adapter supports wall thicknesses from 7.78mm to 21.2mm and without the spacer it supports 19.38mm to 32.8mm. This flexibility simplifies site work and reduces the need for custom framing or rework.

Physical specifications are compact and installation-ready, with a face dimension of 150.2mm by 150.2mm and an overall depth of 41.1mm. The unit is constructed from moisture resistant MDF compliant with TSCA Title VI for safe interior use. Total shipped weight is approximately 0.4Kg which aids handling during install and transport.

Connectivity and compatibility are mechanical in nature – the adapter is designed to accept a compatible 2G keypad and provides a keyed mounting frame plus screws and nuts to secure the device. The spacer frame doubles as a routing template to ensure correct cutout sizes and placement. No electrical or signal connections are included because the product is an installation accessory only.

Common use cases include retrofit and new-construction installations where a keypad must sit flush in solid board walls, AV system deployments that require easy service access, and commercial interiors where consistent face alignment is required. The adapter reduces installation time by providing a repeatable mount and depth calibration for each keypad location. It is suited to conference rooms, control rooms, meeting spaces, and premium residential installations.

Installation is straightforward for trained AV technicians and carpenters – the kit includes a wall adapter, spacer frame, keypad adaptor frame, ST3x40 screws, M3x12 screws, and M3 nuts to complete the mechanical installation. The depth calibration mechanism allows fine adjustment after the wall finish is in place so that the keypad sits precisely flush. The material selection and hardware supply produce a durable mounting solution designed for long-term serviceability.
