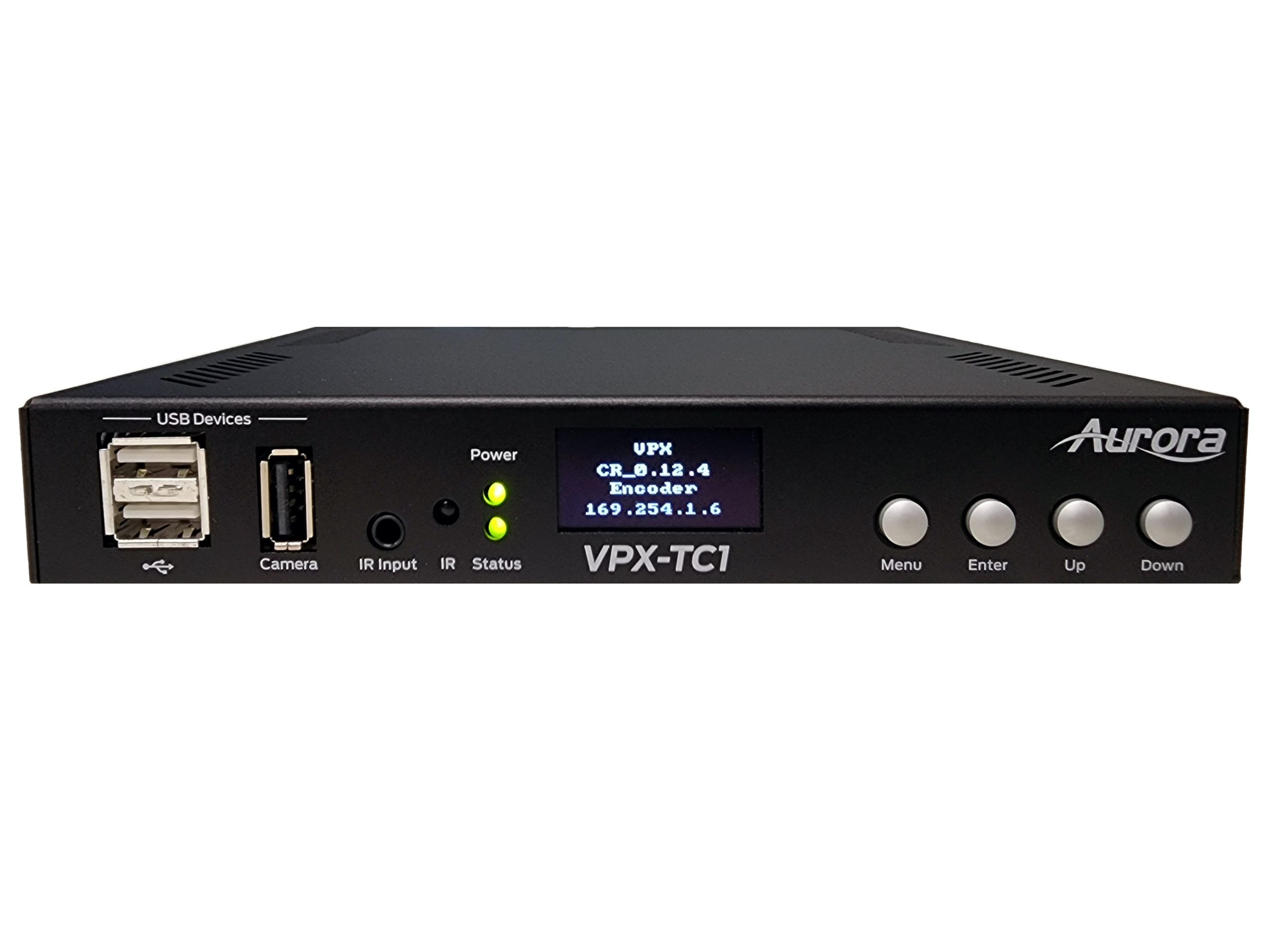

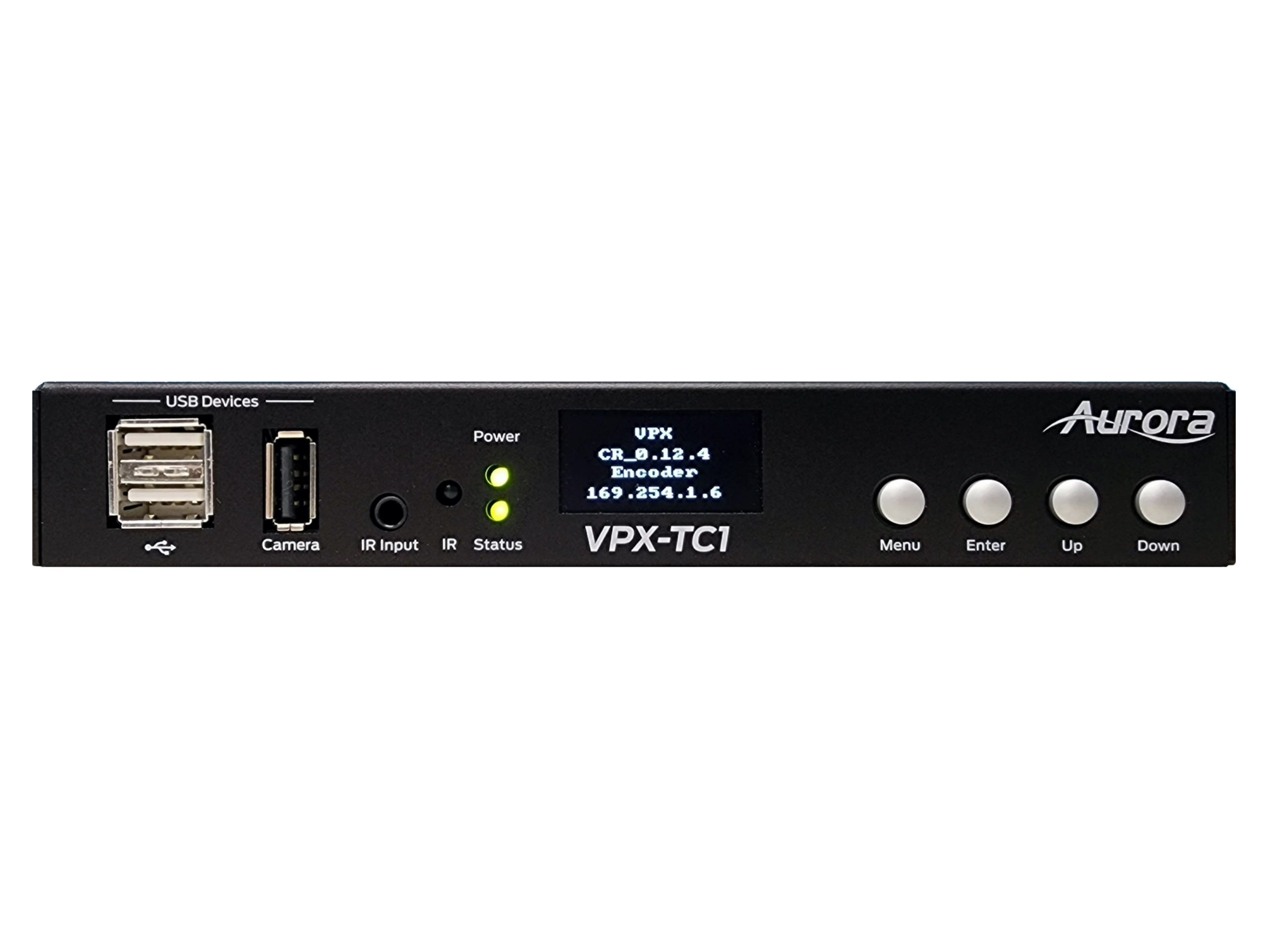

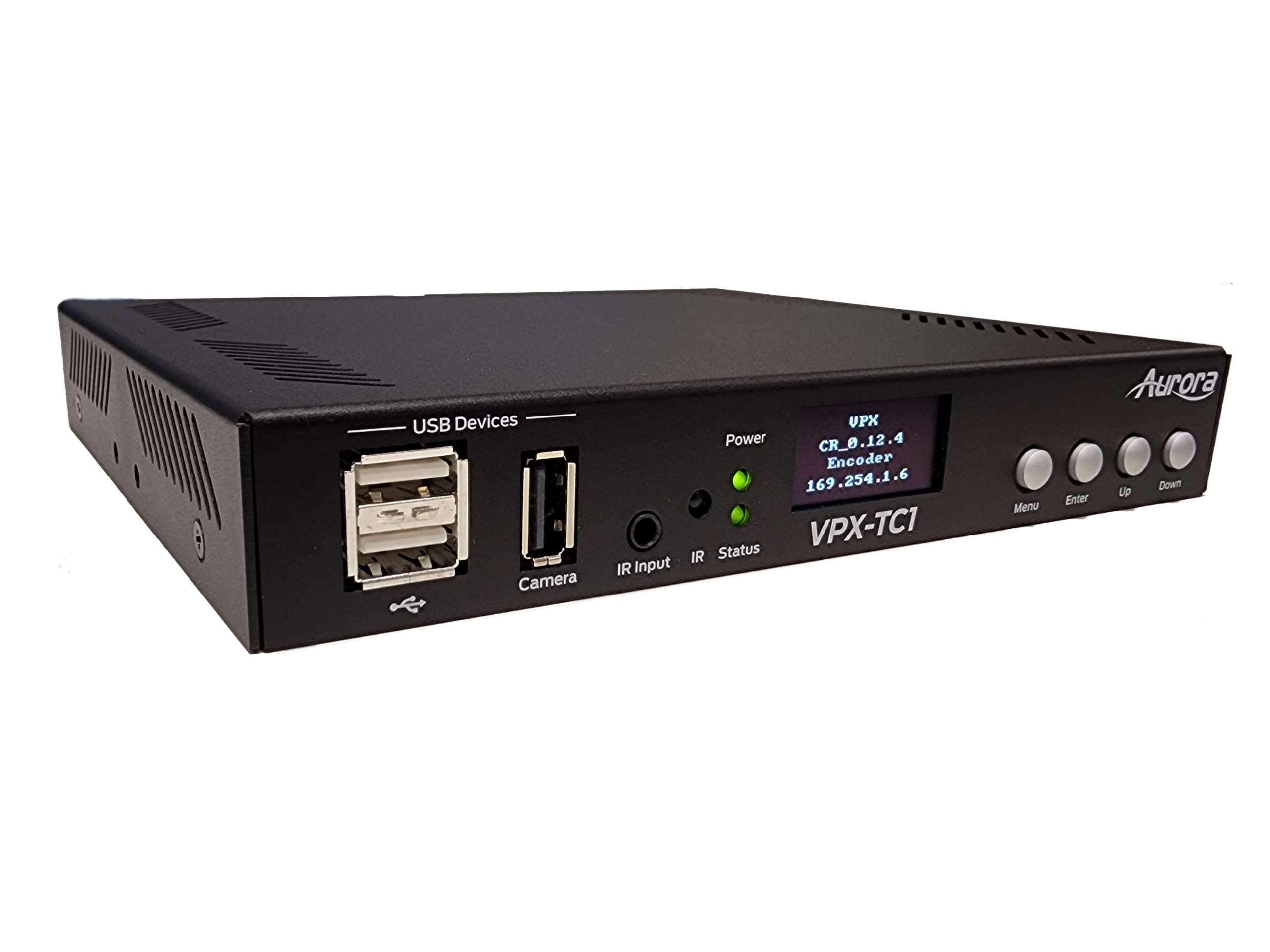

Aurora Multimedia VPX-TC1-Pro Next-Gen 4K60 4x4x4 1Gbps AV-over-IP Transceiver Box

Description

The VPX-TC1 Pro Series provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora’s new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has only one frame (16.6ms) of latency and seamless switching for fast lag free content. Power consumption is important as the VPX-TC1 uses as little as 8 watts. It does this with no fan and a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch. When the VPX-TC1 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the VPX-TC1 is set up, the audio can be de-embedded at any location, and/or be sent to or received from a Dante® enabled device. The USB is also flexible, working as a KVM and/or a high-speed data transfer (100Mbps) for memory sticks & cameras. Each VPX-TC1 USB feature can also be set as a host or a device. To keep the system friendly, an OSD and integrated web server are available for easy navigation and setup of features.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1.

Features:

• Configure as Encoder or Decoder
• 4K60 4:4:4 UHD 120m over 1G CAT 5e
• HDMI 2.0b, HDCP 2.2/2.3
• HDR10, HDR10+, Dolby Vision
• LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio, Dolby ATMOS
• 12 bits color depth processing, 16bits OSD
• Enterprise Security (AES 256, HTTPS, SSH, etc)
• One Frame Latency (16.6ms)
• Low Power Fanless Design
• Seamless Switching
• MJPEG Preview at up to 30 frames
• Video Wall with Image Rotation
• 1G LAN PoE and SFP for Fiber or Second RJ-45

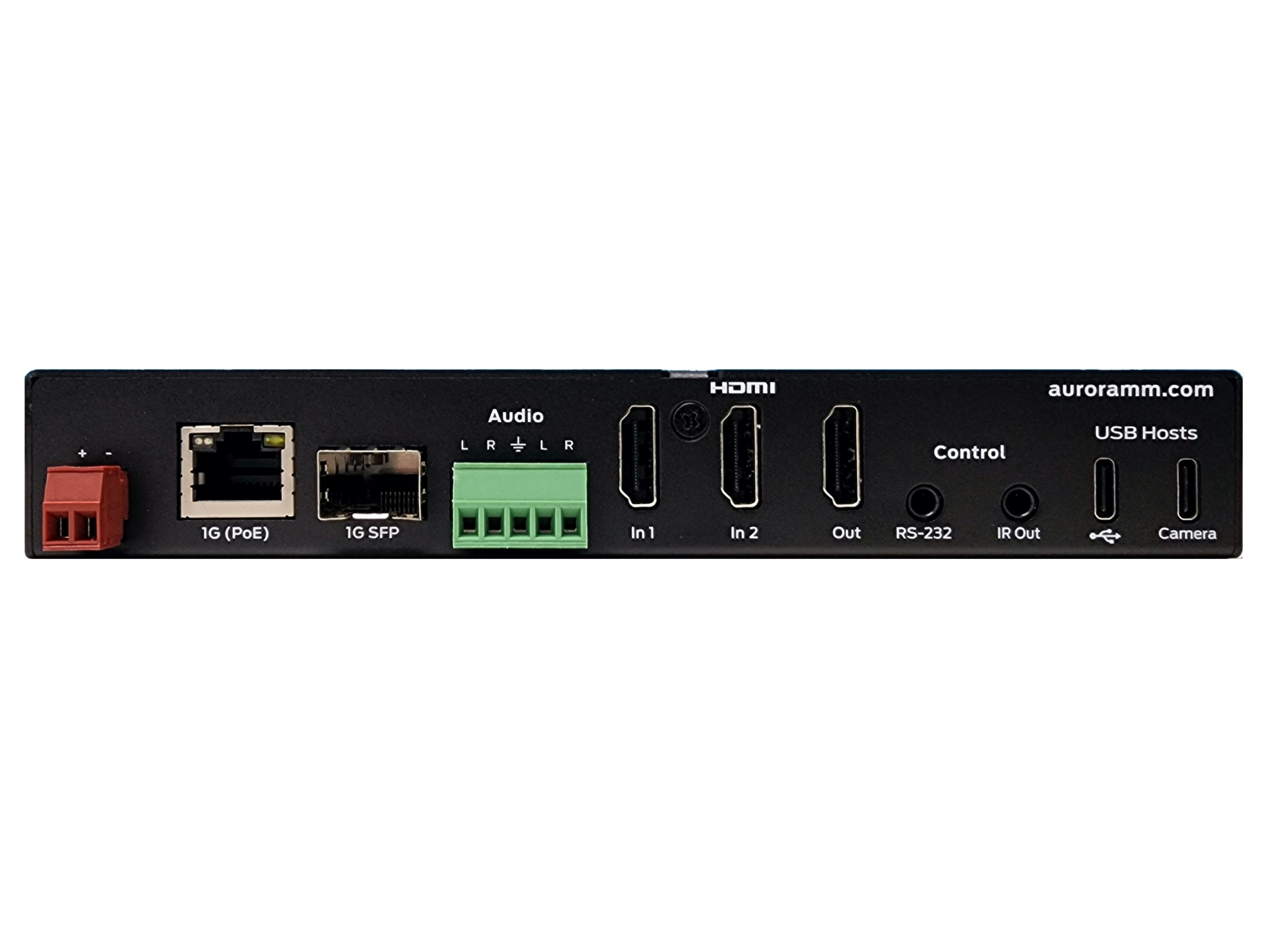

• 2 HDMI Inputs, 1 HDMI Output
• Line In/Out Stereo, Audio Fiber Output, & eARC
• RS-232 Serial Port and IR (In/Out)
• Channel Mapping with On Screen Display (OSD)
• Integrated Web Server for Configuration
• 1 x USB 2.0 Type C (Host for Camera)
• 1 x USB 2.0 Type C (Host for HID/Mass Storage)
• 1 x USB 2.0 Type A (Camera)
• 2 x USB 2.0 Type A (HID/Mass Storage Devices)
• Dante® IP 2/8 Ch Audio Option
• Audio DSP & eARC
• ReAX™ Control Option
