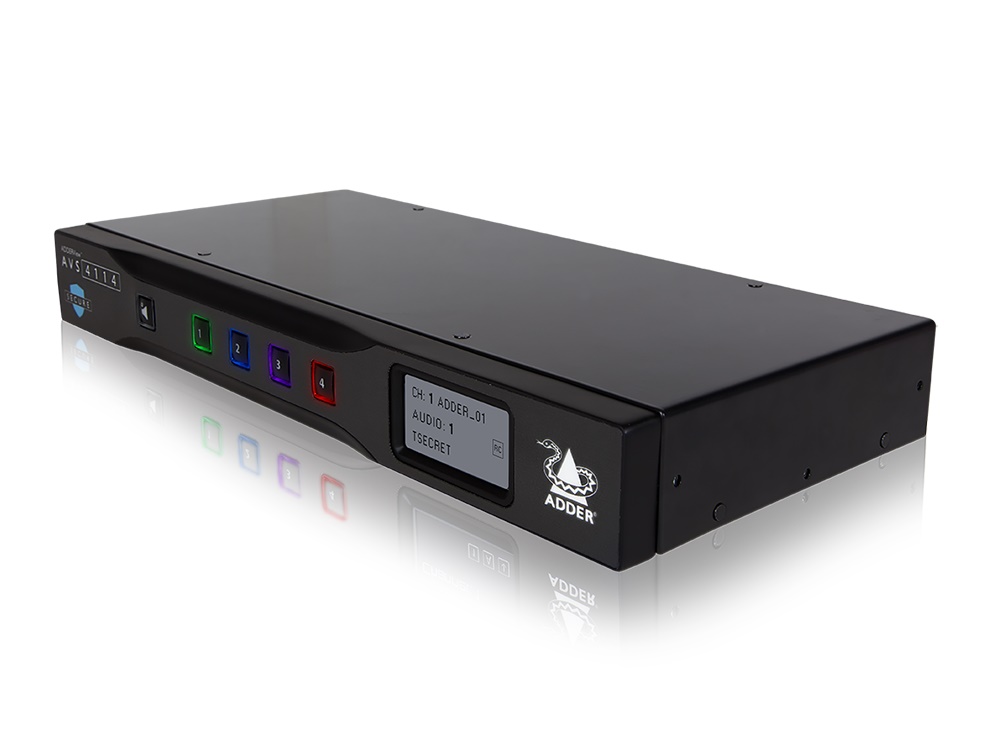

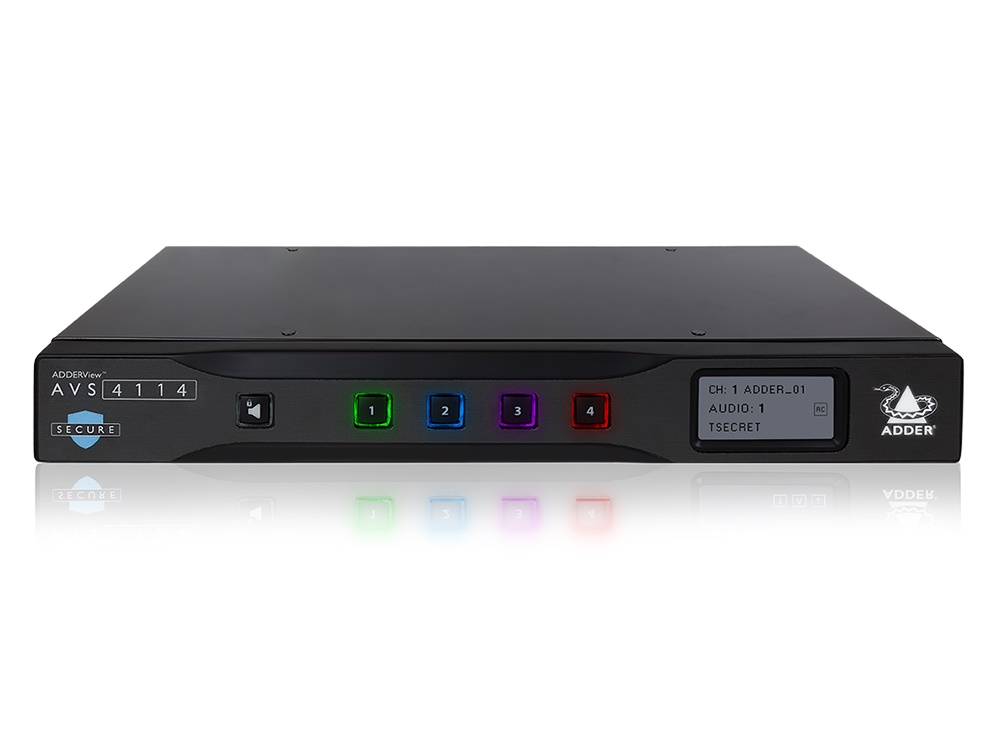

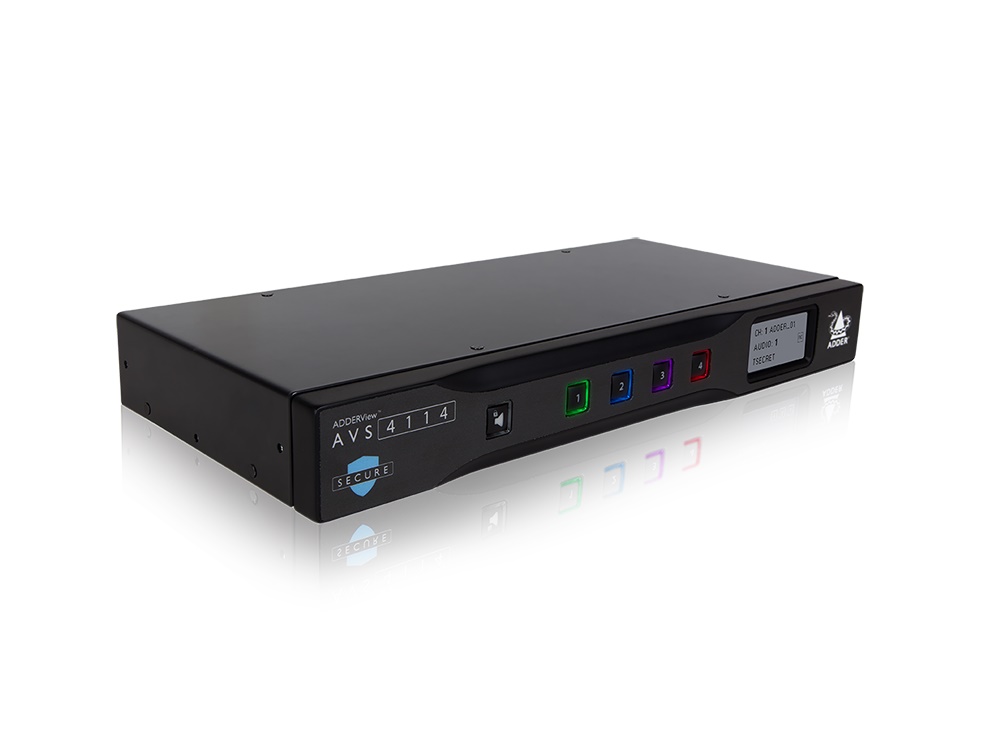

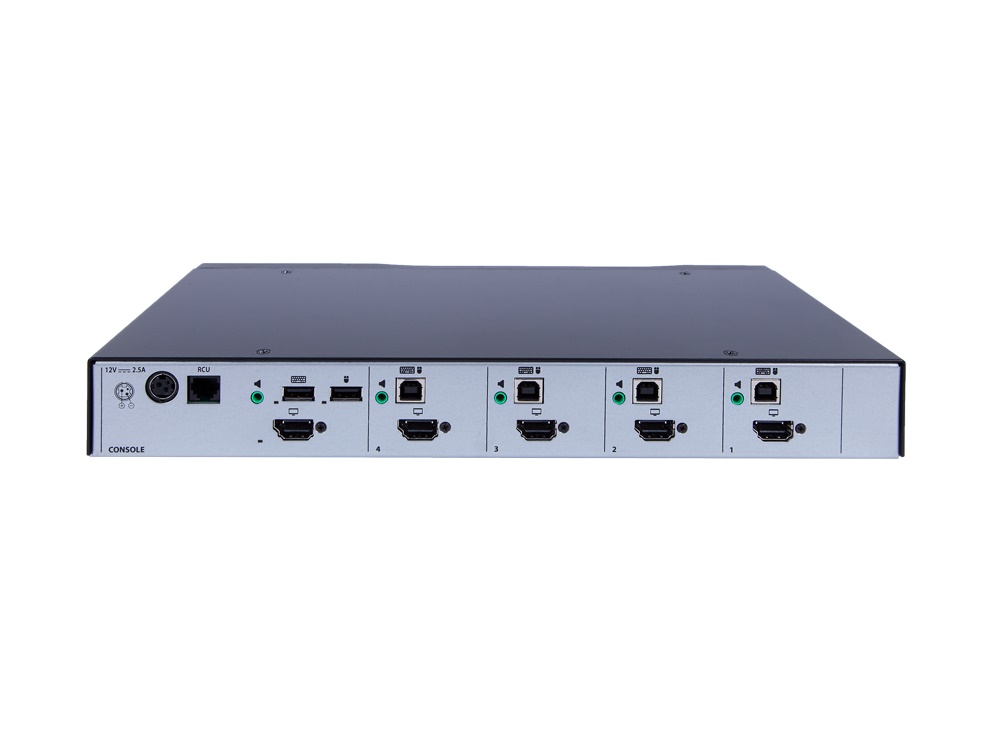

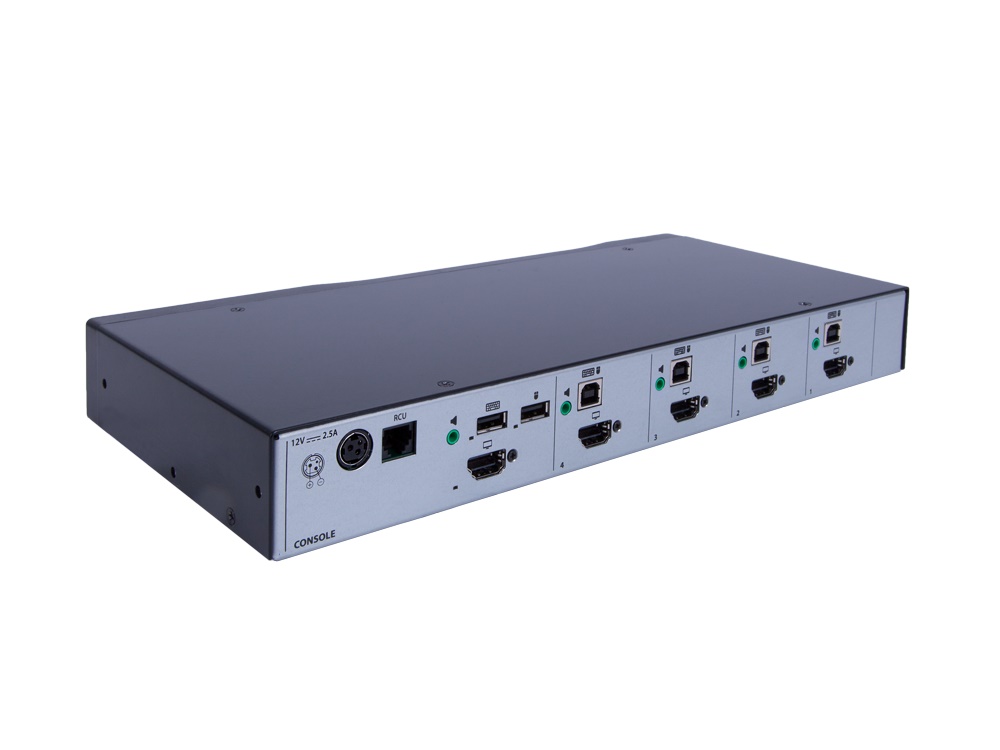

Adder AVS-4114 ADDERView Secure 4 Port DPHDMI Single Head Switch

Description

ADDERView Secure switches enable a KVM plus audio desktop to be shared between different classification level computers. Designed for superior usability, the switches feature configurable LED buttons and a real-time status display.

Features:

Uni-directional keyboard, video, mouse and audio data paths

Uni-directional optical diodes ensure data paths travel in only one direction, thus preventing data leakage through shared peripherals. A uni-directional structure also protects against timing analysis or forced malfunction attacks and prevents computers influencing the operation of any common circuitry.

Channel identification

Reduce the chances of operator error by displaying a name for each channel and its security classification on the E-paper display. The color of the channel LED may also be configured to reflect the security classification.

No shared RAM between ports

The keyboard and mouse processor is powered down and reset at each switchover to thwart shared RAM leakages. All data buffers are actively cleared once they have been used.

Automatic switching (configuration option)

Free-flow KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.

Hardware anti-tampering

Holographic anti-tampering labels protect the product’s enclosure, providing a clear visual indication if it has been opened or compromised.

Non-reprogrammable firmware

There is no access to the product’s firmware or memory through any port. Firmware is permanently stored in non-reprogrammable Read Only Memory (ROM) to prevent modification. Firmware integrity is verified through a self-test procedure during power up. Detection of a critical failure disables the device and provides a clear visual indication to the user.

Restricted USB function

The USB ports will only accept HID (Human Interface Devices), such as keyboards and mice. Other devices, such as USB storage drives, are actively prohibited.

Video Performance

Up to UHD 4K video resolution at 60 fps for graphics intensive applications requiring very high quality.

Audio hold

Assign the audio port to a specific computer while switching the KVM to other computers. Useful when a user needs to listen to audio from one computer, whilst working on another.
