Aurora Multimedia DTX-88D Medium-density 8×8 Dante DSP with 8×8 analog I/O

Description

Aurora’s DTX-88D is a Dante enabled, digital audio DSP with Analog I/O. This fully networked professional audio product is ideal complement to Aurora’s IPX and VPX Video over IP solutions for House of Worship, Bars and Restaurants, Conferencing, and Education markets. The DTX ecosystem of products are purpose built to deliver pristine audio throughout the network while significantly reducing traditional device count and cabling costs.

Features:

• ADI SHARC 21489 processor

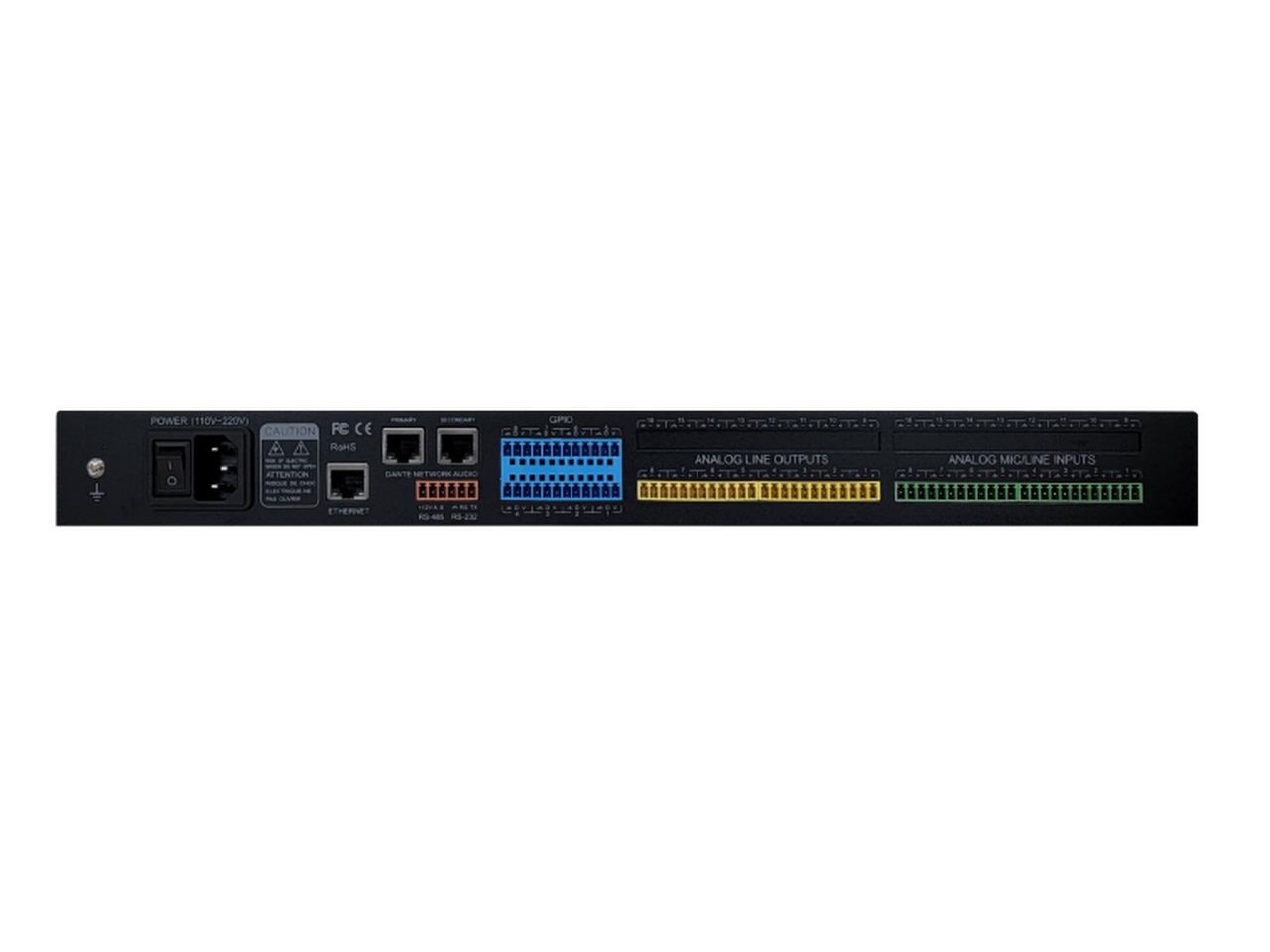

• 8 balanced microphone or line level inputs on Terminal Block connectors
• 8 balanced line level outputs on Terminal Block connectors
• 2 Dante audio interfaces on RJ-45 connectors
• 8 GPI/O multi-function ports on Terminal Block connectors
• Dante audio channels up to 8×8
• Defnable GUI for managing and confgurating multiple units
• All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay and more
• 16 preset slots to store all configuration data for easy recall
• Built-in USB sound card for recording and playing digital audio
• DSP Confgurator software tool for managing all audio operations
• Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)
