Atlona AT-UHD-EX-100CE-KIT-B 4K/UHD HDMI/HDBaseT Extender (Transmitter/Receiver) Kit

Description

Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

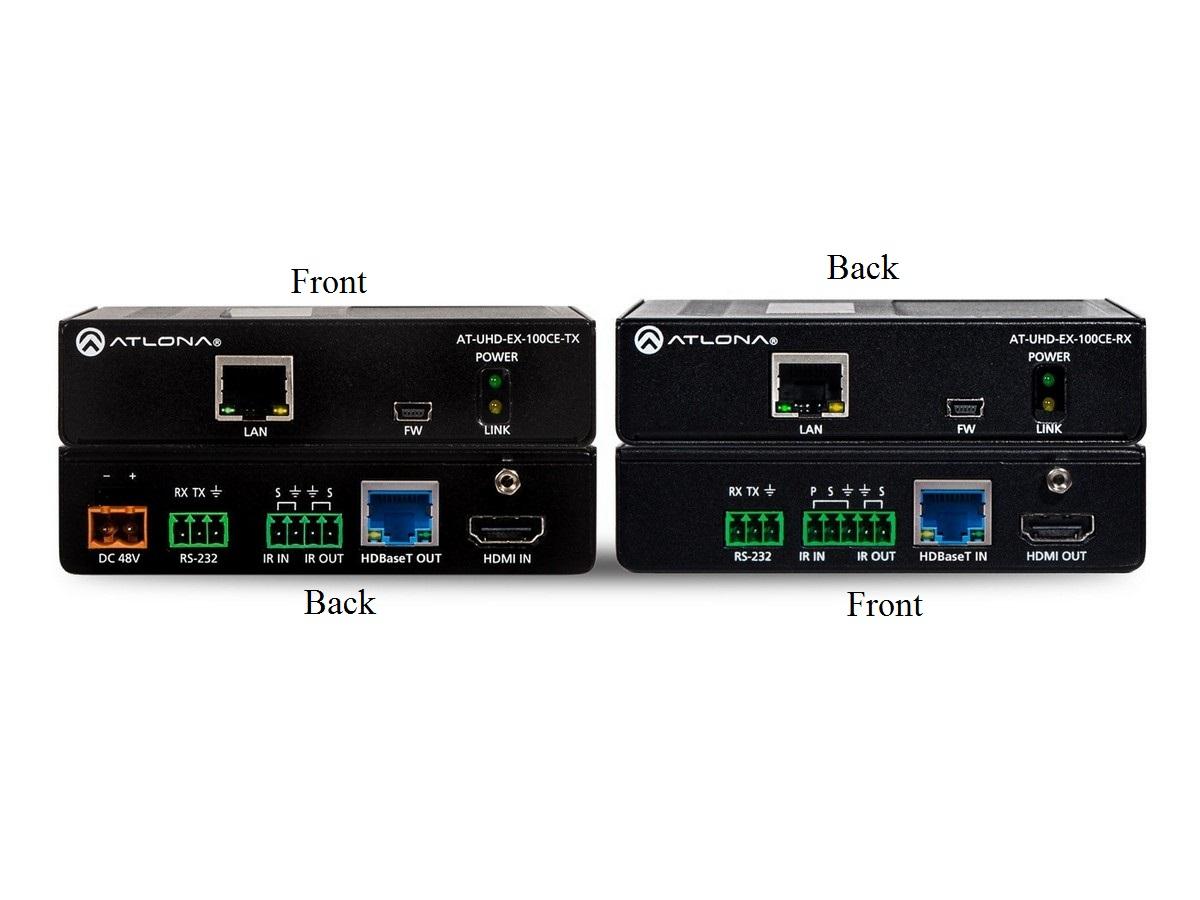

The Atlona AT-UHD-EX-100CE-KIT is an HDBaseT transmitter/receiver kit for HDMI transmission up to 328 feet (100 meters) over category cable with Ethernet pass through, RS-232 and IR control, plus Power over Ethernet. This extender kit transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. Additionally, the kit extends Ethernet, RS-232, and 12 volt-based IR control commands. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management.

4K/UHD capability

• Compatible with Ultra High Definition sources and displays
• Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices

HDCP 2.2 compliant

• Adheres to latest specification for High-bandwidth Content Protection
• Allows protected content stream to pass between devices

Remote-powered receiver

• Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
• Saves time and integration costs

AV, Ethernet, power, and control over HDBaseT

• Delivers 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
• Eliminates multiple cable runs between source, control system, router, and display

Extended distance HDMI extension

• Extended distance HDMI extension Transmits HDMI signals up to 328 ft (100m) @ 1080P and 328 ft (100m) @ 4K/UHD using CAT6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation

Rear panel I/O connectors

• Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter

Multi-channel audio compliant

• Supports PCM, LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, and DTS-HD Master Audio
• Allows any multi-channel audio stream to be used within a professional audio system

Field updatable firmware

• Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment

Front panel power and status LEDs

• LED indicators provide power and status information
• Provides easy setup and troubleshooting

Power Chaining

• Single power supply provides ample power for up to 3) Atlona Extender Kits
• Reduces clutter from multiple power supplies in equipment racks

Low-profile, 1 inch (2.5 cm) high quarter rack-width enclosure

• Easy installation into racks and confined spaces behind displays
• Keeps devices out-of-sight when placed in public spaces

The AT-UHD-EX-100CE-KIT provides integrator-friendly features including: IEEE standards-based PoE transmission for safety and compatibility; compliant with HDCP 2.2 to meet the latest copy protection requirements; an integrator-friendly form factor with rear panel HDBaseT, HDMI, control and power connections; a rack- mountable form factor that allows for four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates.

The AT-UHD-EX-100CE-KIT is ideal for use in residential or commercial point to point applications that require greater HDBaseT signal transmission distance than the UHD-EX-70C can support. As a transmitter/receiver pair, the kit can be used with the H2H matrix switcher and HDDA distribution amplifier series and third party control systems for long distance AV signal and control extension with PoE capability.
