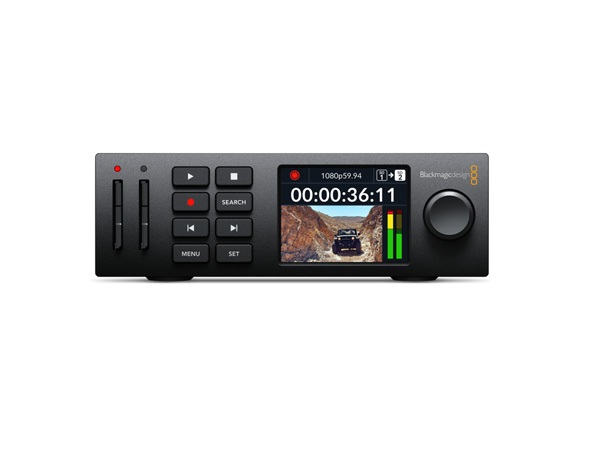

Blackmagic Design BMD-HYPERD/ST/DAHM HyperDeck Studio HD Mini

Description

The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. This modular design means that you can use a Teranex Mini Rack Shelf to rack mount 3 HyperDeck Studio HD Minis in a single rack unit, or you can combine them with other products such as switchers, converters or streaming processors. It might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer as HyperDeck Studio HD Mini works like a webcam so you can use any video software!

Features:

• SDI Video Inputs 1
• SDI Video Outputs 1
• SDI Rates 270Mb, 1.5G, 3G.
• HDMI Video Outputs 1
• Screen 2.2 inch LCD
• Timecode Connections 1 x BNC In, 1 x BNC Out.
• Reference Connections 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
• SDI Audio Inputs 16 channels embedded audio.
• SDI Audio Outputs 16 channels embedded audio.
• HDMI Audio Outputs 8 channels embedded audio.
• Remote Control 1 x RS-422 In.
• Recorder Configuration Via user interface orBlackmagic HyperDeck Ethernet Protocol.
• Ethernet 1Gb/s
• Computer Interface 1 x USB Type-C 3.0 (up to 5Gb/s) forexternal drive recording, webcam out,software configuration and updates.
