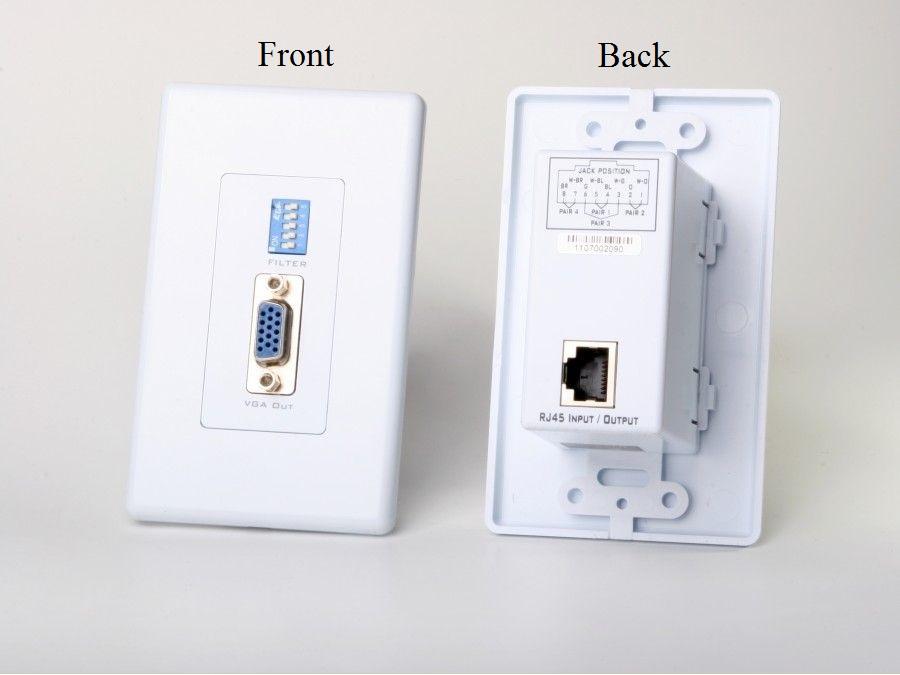

Atlona Passive VGA Wall Plate Extender up to 330ft over 1 x CAT5/6/7 Cable (RECEIVER ONLY). Model: AT-WPVGA-R
The Atlona passive VGA wall plate receiver unit allows sending a perfect video signal over 1 x CAT5/6/7 cable up to the distance of 330ft with resolutions up to 1280×1024. These extenders can be mixed and matched with each other. The wall plate transmitter can be matched with “box” receiver and the other way around and of course, the wall plate transmitter will perfectly work with wall plate receiver and “box” transmitter with “box” receiver.
Plug and Play, no drivers or software needed, user will not even notice the difference when using an extender versus a direct connection. The extenders require no external power.
Note: The AT-WPVGA-R is only a receiver unit, the transmitter is required (AT-WPVGA-S or AT-VGA100S)
Applications:
The VGA Extenders are a great solution for many different applications, e.g., classroom, office environment, data-center, training room and many others where the computer must be placed further away from the users display.
Max. Distance via CAT5 Cable:
- 800×600 pixels (30MHz) – 320ft
- 1024×768 pixels (60MHz) – 250ft
- 1280×1024 pixels (100MHz) – 200ft
Features:
- Extend signals up to 330ft away from the computer on a single low-cost Cat5, 6 or 7 cables.
- No power supplies are needed
- Perfect for extending VGA signal further away than standard cables may allows.
- Wall plate transmitter is compatible with “box” receiver and other way around.
- Resolution support up to 1280×1024
- Plug and Play, no drivers or software needed
- Any computer is compatible, no limitations
