FBT SUBLINE 118 SA Processed Active Subwoofer 1200W RMS – 134/137db Spl

Description

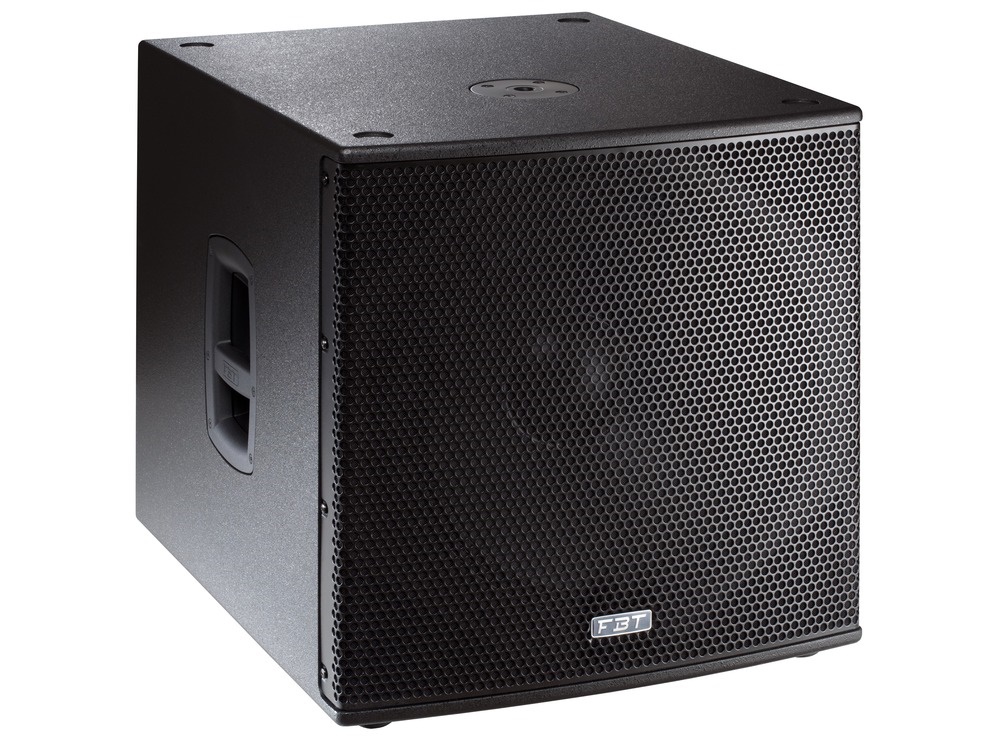

The FBT SUBLINE 118SA is an extremely compact bass-reflex design subwoofer. The FBT SUBLINE 118SA feature 0,70″ birch plywood construction covered in a scratch resistant black paint with two aluminum carrying handles; an M20 top mounted stand adapter allows satellite speakers, such as the FBT speaker series and others, to placed above the subwoofer cab.

The FBT SUBLINE 118SA features a 18″ high excursion woofer with 3″ voice coil. The FBT SUBLINE 118SA provides a Digital Signal Processor with 6 presets, 4 equalization with 2 LPF crossover settings, cardioid configuration. The FBT SUBLINE 118SA shall meet the following performance criteria: frequency response of 33Hz to 100Hz, max. SPL of 137dB peak, 1200W RMS Class D power amplifier with switch mode power supply; the control panel features stereo XLR in/out, level, EQ presets, 6 steps delay, phase reversal switch 0°-180°, 3 status led indicators.

Features:

• Bass-reflex design subwoofer
• 460 mm (18”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C
• Frequency response from 33Hz – 100Hz
• 1200W RMS Class D power amplifier with switch mode power supply
• Digital Signal Processor with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m
• Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
• 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
• M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
