Description

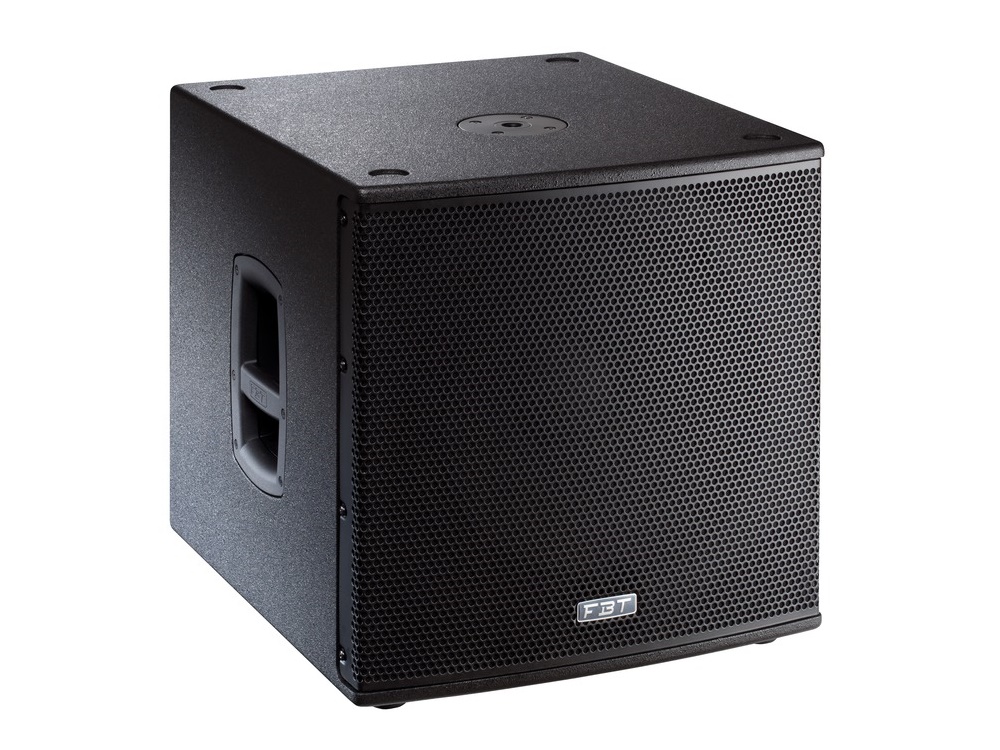

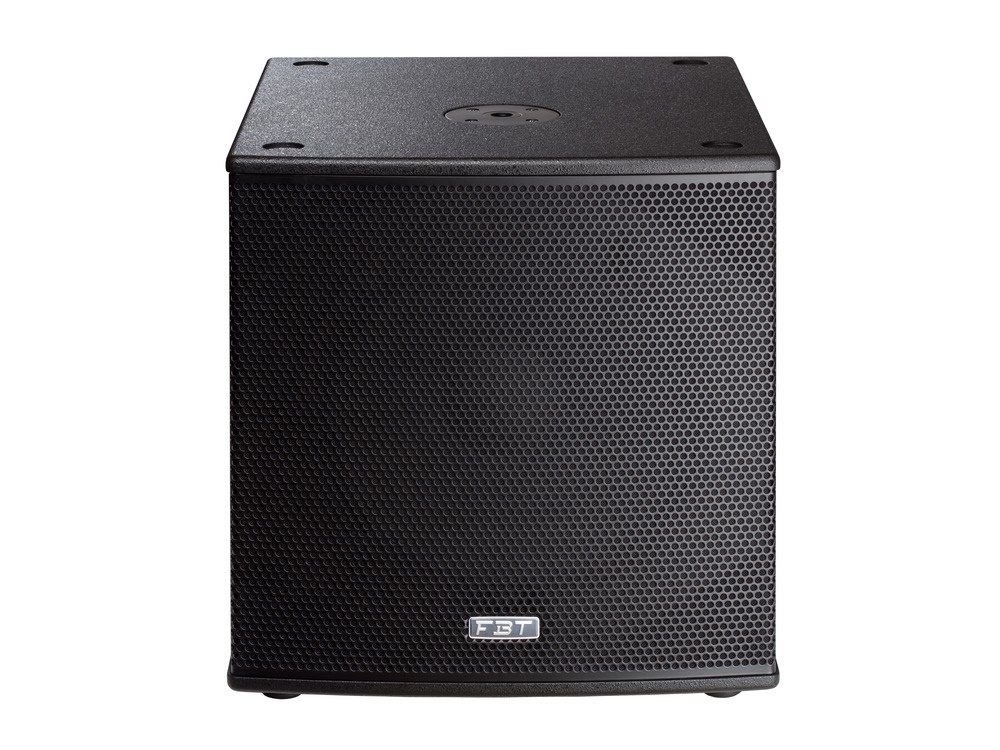

The FBT SUBLINE 115SA is an extremely compact bass-reflex design subwoofer with high SPL and punch. The FBT SUBLINE 115SAfeature 0,59″ birch plywood construction covered in a scratch resistant black paint with two aluminum carrying handles; an M20 top mounted stand adapter allows satellite speakers, such as the FBT speaker series and others, to placed above the subwoofer cab.
The FBT SUBLINE 115SA features a 15″ high excursion magnet woofer with 3″ voice coil. The FBT SUBLINE 115SA provides an FBT’s new Digital Signal Processor with 8 presets, 2 equalization with 2 LPF crossover settings, cardioid configuration. The FBT SUBLINE 115SA shall meet the following performance criteria: frequency response of 38Hz to 140Hz, max. SPL of 135dB peak, 700W RMS Class D power amplifier with switch mode power supply; the control panel features stereo XLR in/out, level, EQ presets, 8 steps delay, phase reversal switch, 3 status led indicators.
Features:
- Bass-reflex design with high SPL and punch
- 380mm (15”) high excursion magnet woofer with 75mm (3”) voice coil
- Frequency response from 40Hz to 140Hz
- New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
- Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration

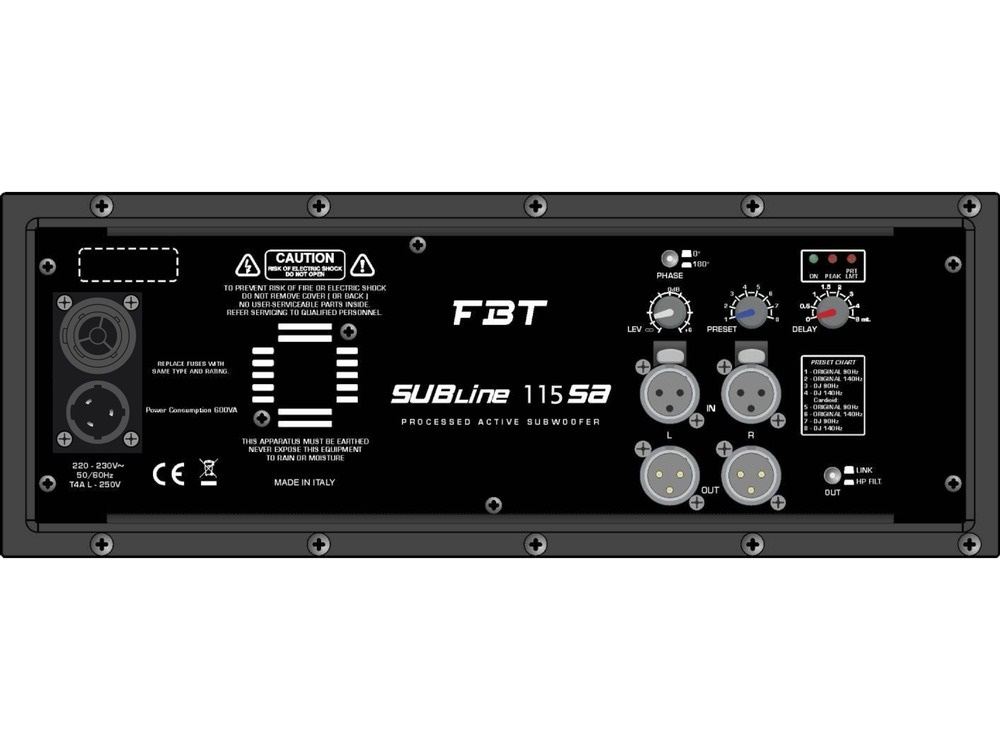

- Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
