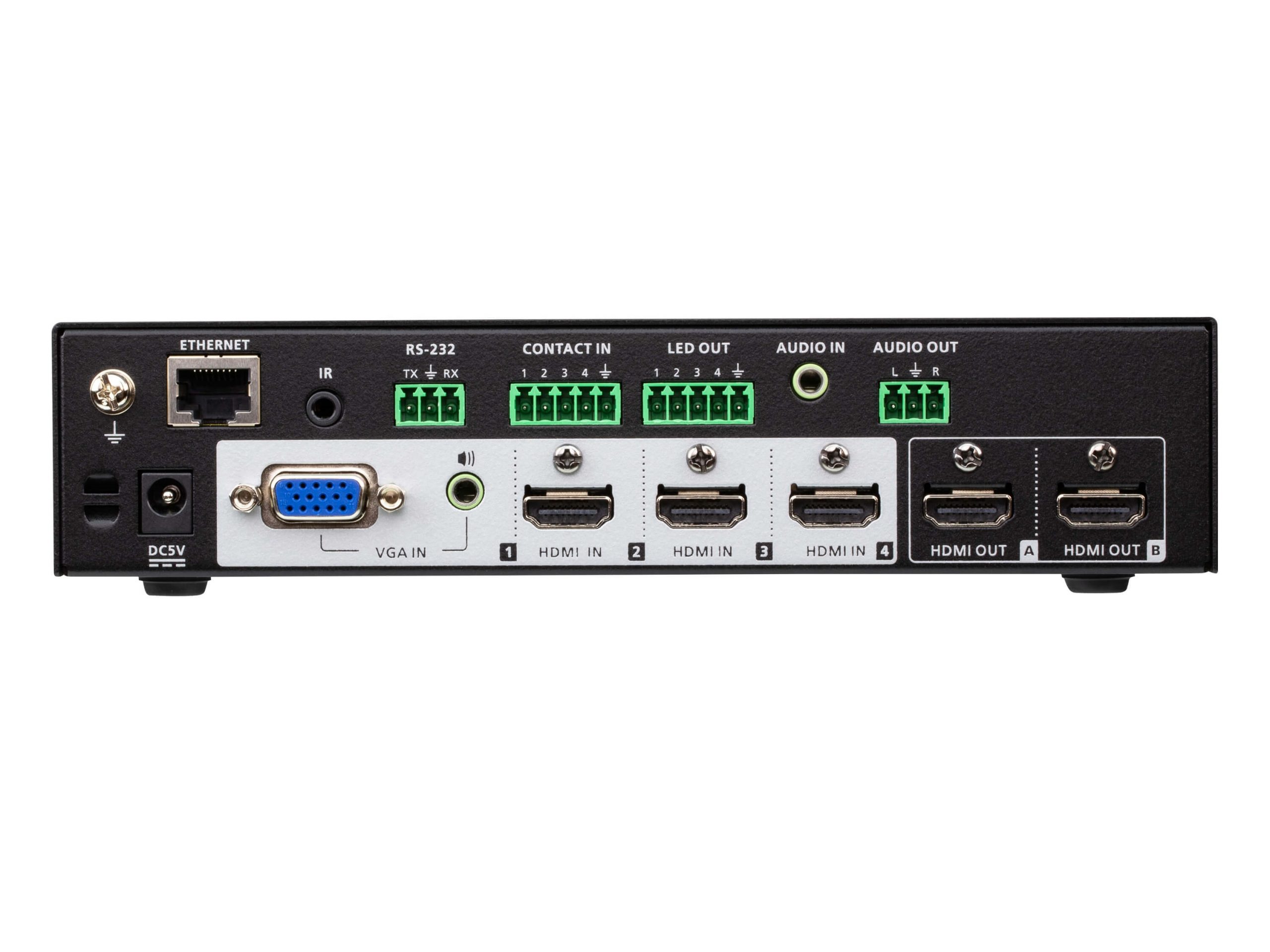

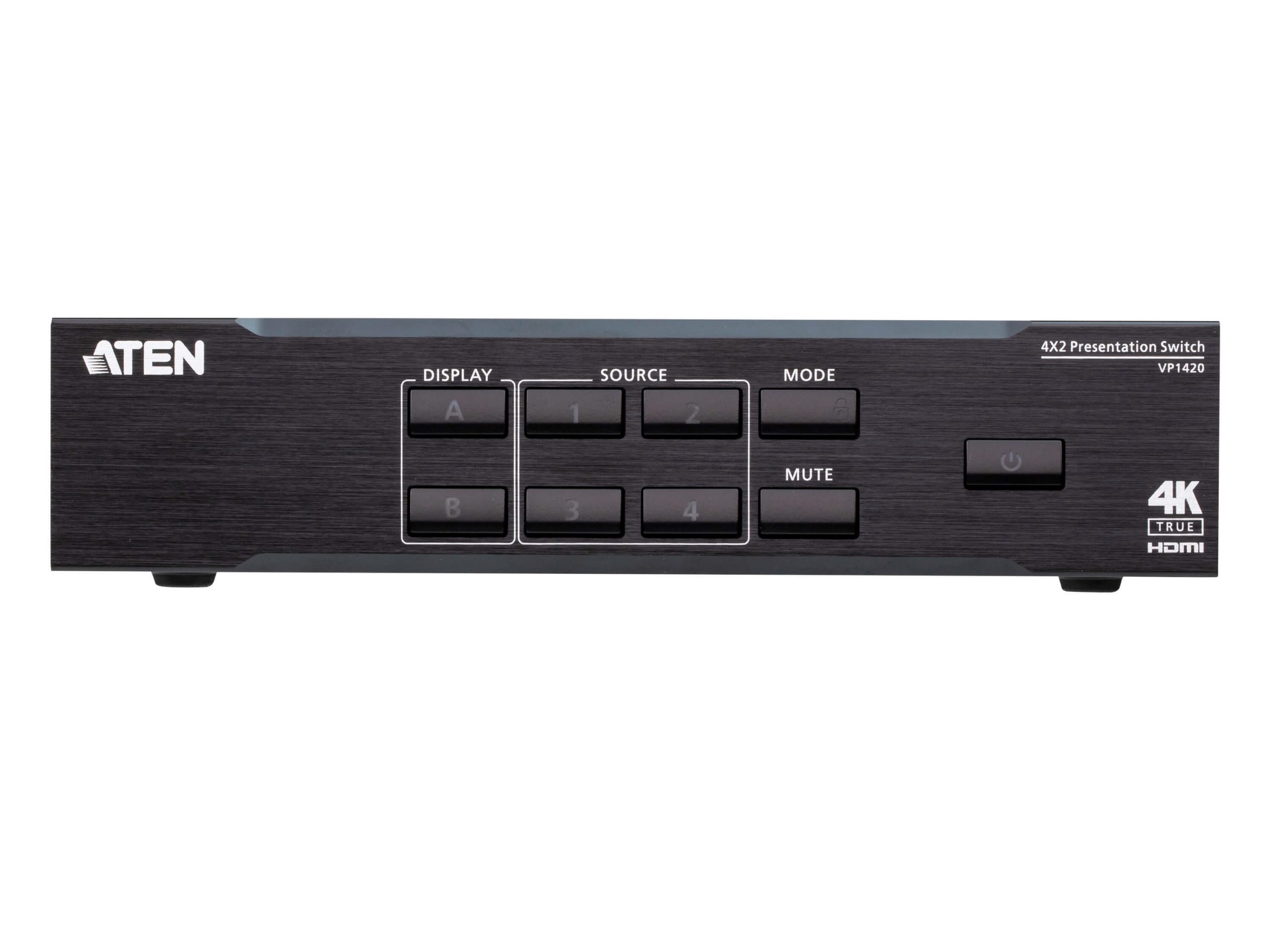

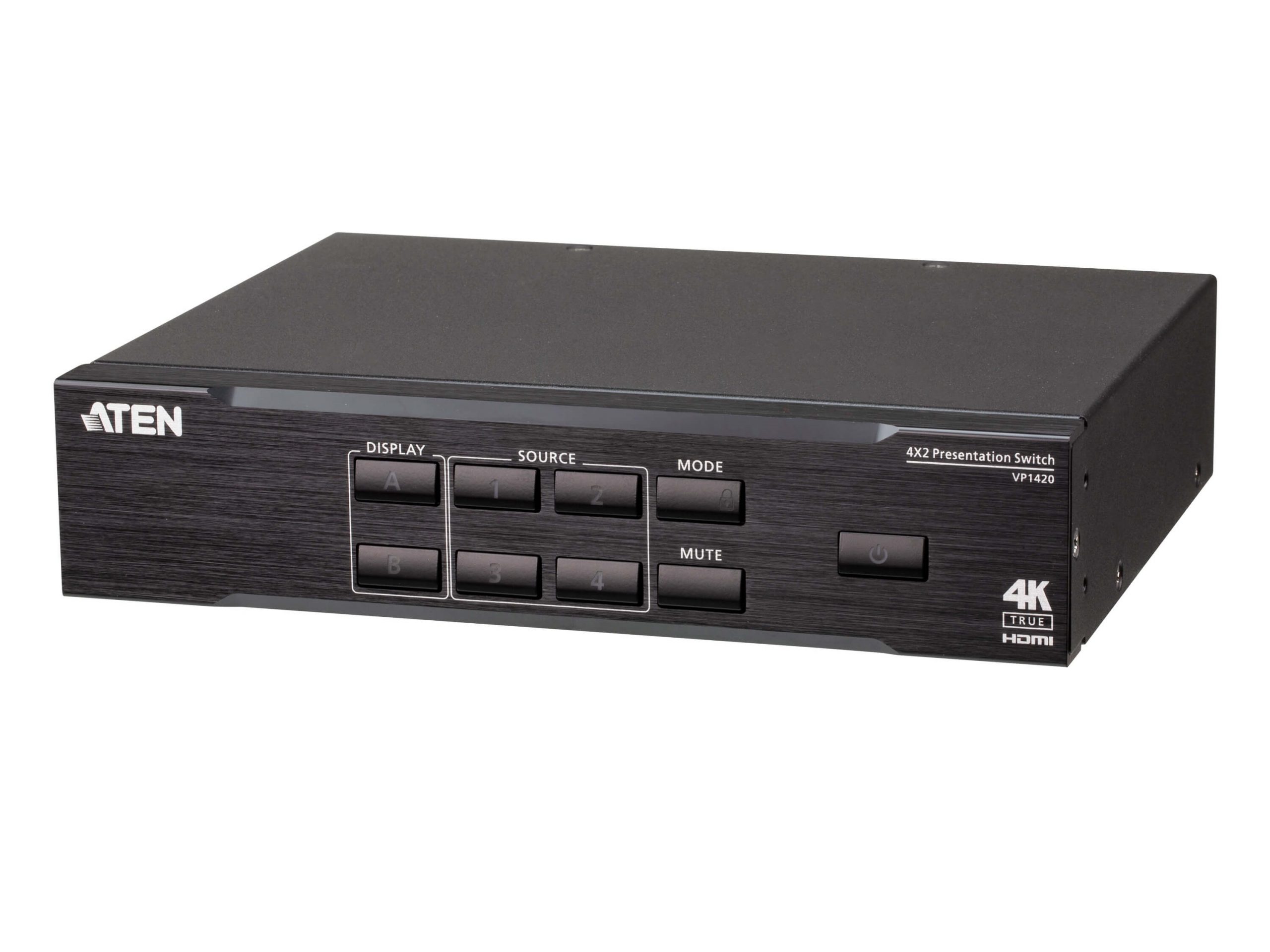

Aten VP1420 4×2 True 4K Presentation Matrix Switch

Description

ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device. With four analog/digital inputs to two HDMI outputs, it is designed to boost the impact of any professional presentation in small- to medium-size meeting rooms.

True 4K, HDR Visual Clarity

Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) with HDR to deliver vivid content in every presentation.

Smooth AV Switching Scaled to Perfection

Connect up to 4 sources (3 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.

Flexible Audio Embedding / De-Embedding

Supports stereo audio embedding and HDMI audio de-embedding to different audio outputs to ease adaptation to your preferred audio setup.

Versatile Control, Streamlined Operations

Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.

Features:

• Supports multi-format 4 inputs – 3 HDMI and 1 VGA inputs
• 2 HDMI outputs
• Audio embedding – stereo audio can be embedded into HDMI output or separated to stereo line out
• Audio de-embedding – HDMI audio can be extracted to stereo line out
• Auto switching – automatically detects and switches to a new source as soon as it is connected
• Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI)
• Supports 4K HDR
• Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B
• EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
• Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
• View and control via ATEN Video Presentation Control App in a swift and agile way
• Supports stand-by mode for power saving and fast waking up
• Consumer Electronics Control (CEC) support
• Built-in Contact in and LED out for keypad control using VPK104 Contact Closure Remote Pad
