Description

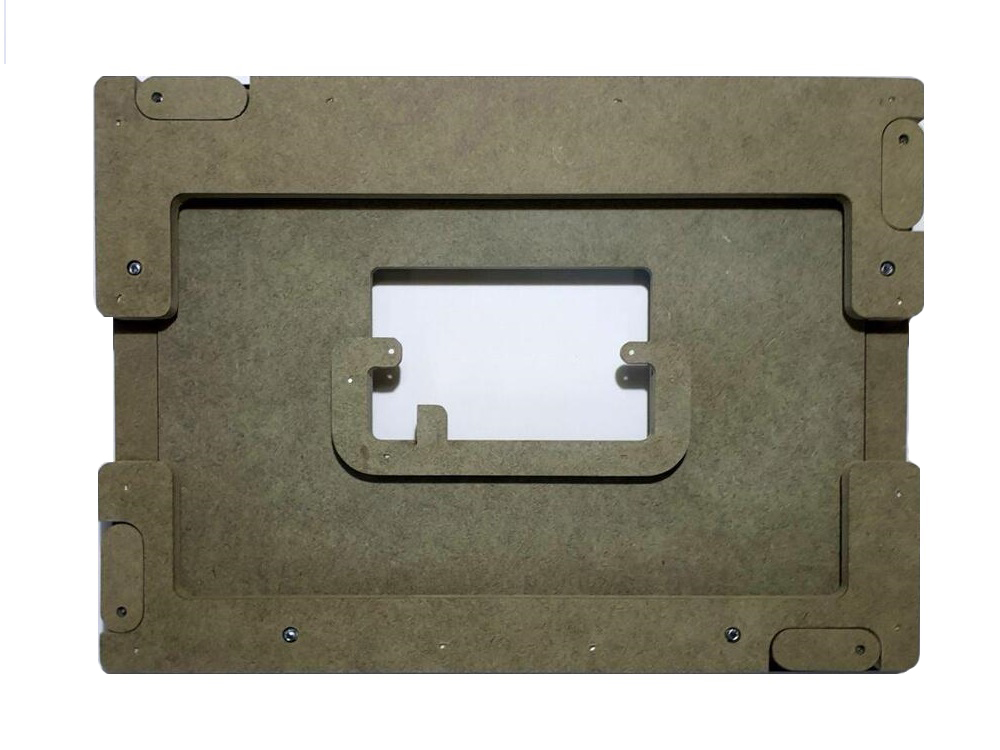

The “WS RETROFIT FOR C4 T4 10″” is an adapter for in-wall nearly flush retrofit installation of T4IW10 touch screen. The “WS RETROFIT FOR C4 T4 10″” firmly mounts the touch screen while allowing easy insertion, removal and operation.
Features:
- Nearly flush with the wall (4mm [0.16”] thick on-wall bezel).
- Wall mount contains depth calibration screws.
- Board thickness 10mm[0.39″] up to 21mm[0.83″].
For boards up to 32mm[1.25″] thick, reinstall cam latches
upside down. - Designed for POE power only.
- Line voltage connector is blocked.
- Does not require control4 back box.
- Designed for the use with T4IW10 touch screen (by Control4)
(touch screen is not included). - Adapter kit contains:
1. (X1) Wall adapter;
2. (X1) Bezel; - Color: White
