Description

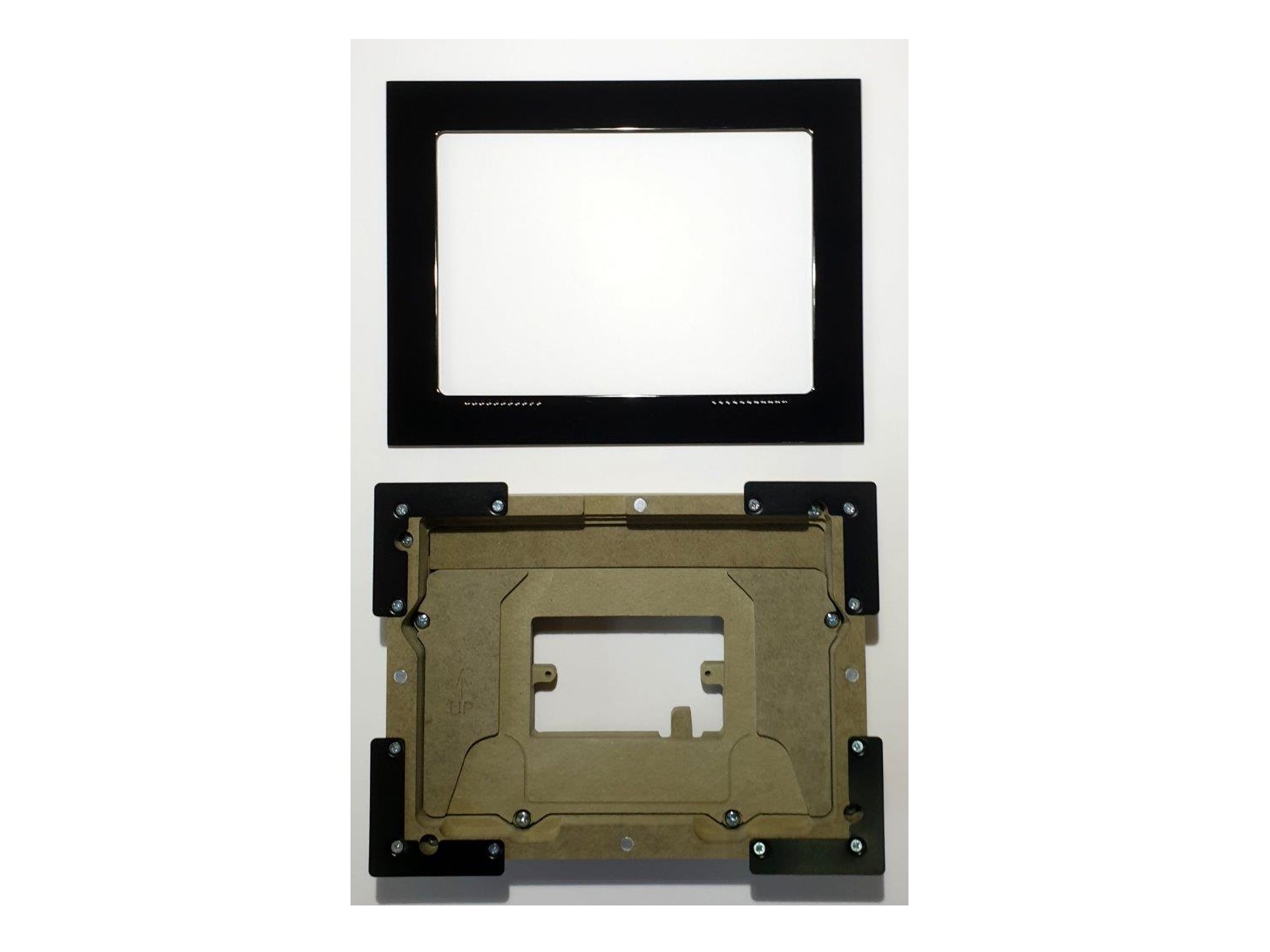

The “WS RETROFIT FOR C4 T4 8″” is an adapter for in-wall nearly flush retrofit installation of T4IW8 touch screen. The “WS RETROFIT FOR C4 T4 8″” firmly mounts the touch screen while allowing easy insertion, removal and operation.
Features:
- Retrofit
- For low voltage (POE) only – line voltage connector is blocked
- Does not require control4 back box.
- Nearly flush with the wall (4mm [0.16”] thick on-wall bezel).
- With speaker/mic grills.
- Bezel attaches magnetically to the retrofit wall mount base.
- The bezel is supplied painted black (-BL)
- Wall mount contains depth calibration screws.
- Board thickness 10mm[0.39″] up to 21mm[0.83″]. For boards up to 32mm[1.25″] thick, reinstall cam latches upside down.
Key properties:
- Dimensions: (W /H/D): 256mm (10.08)/ 195.8mm (7.71″)/ 48mm (1.89”)
