Description

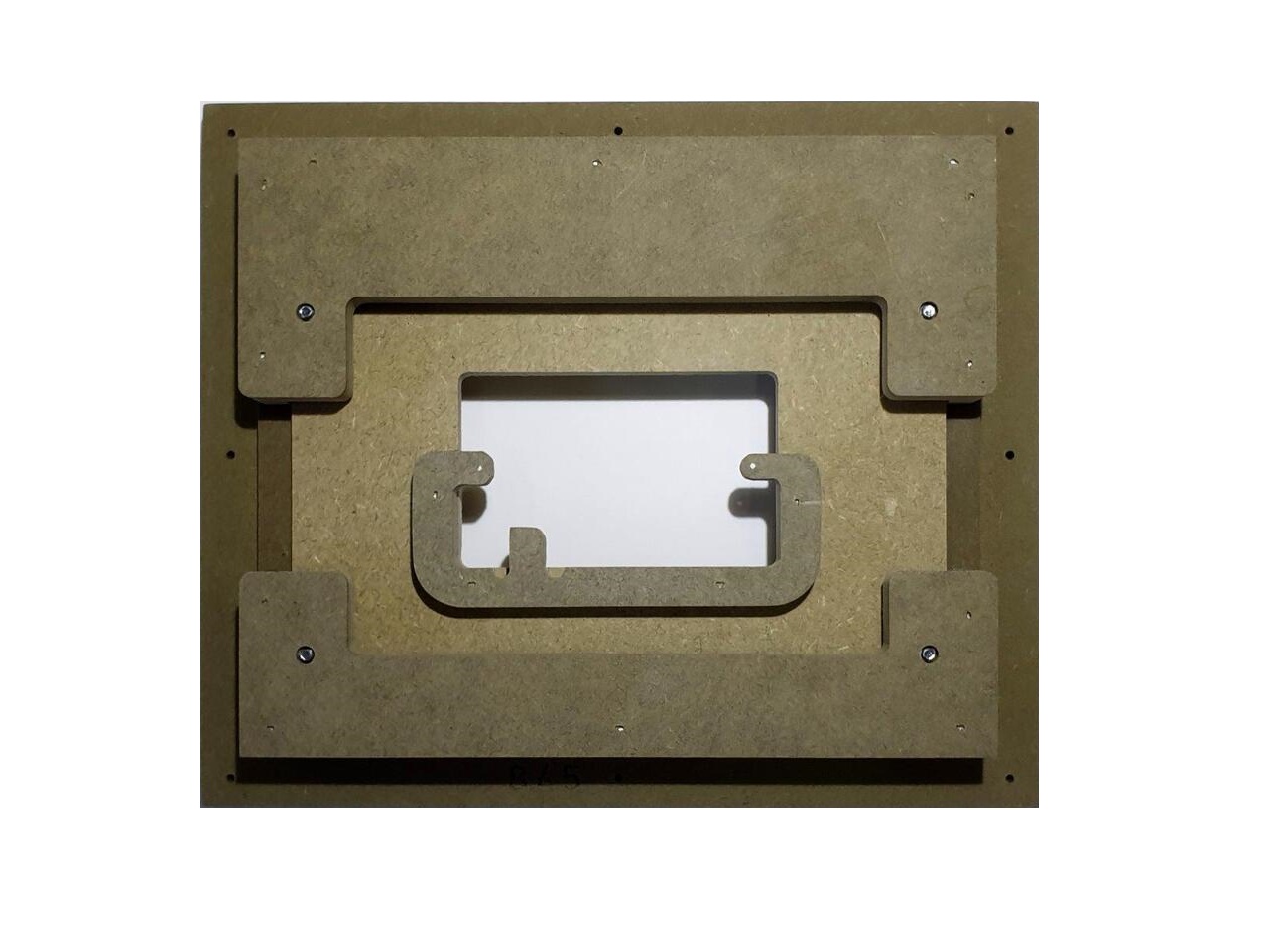

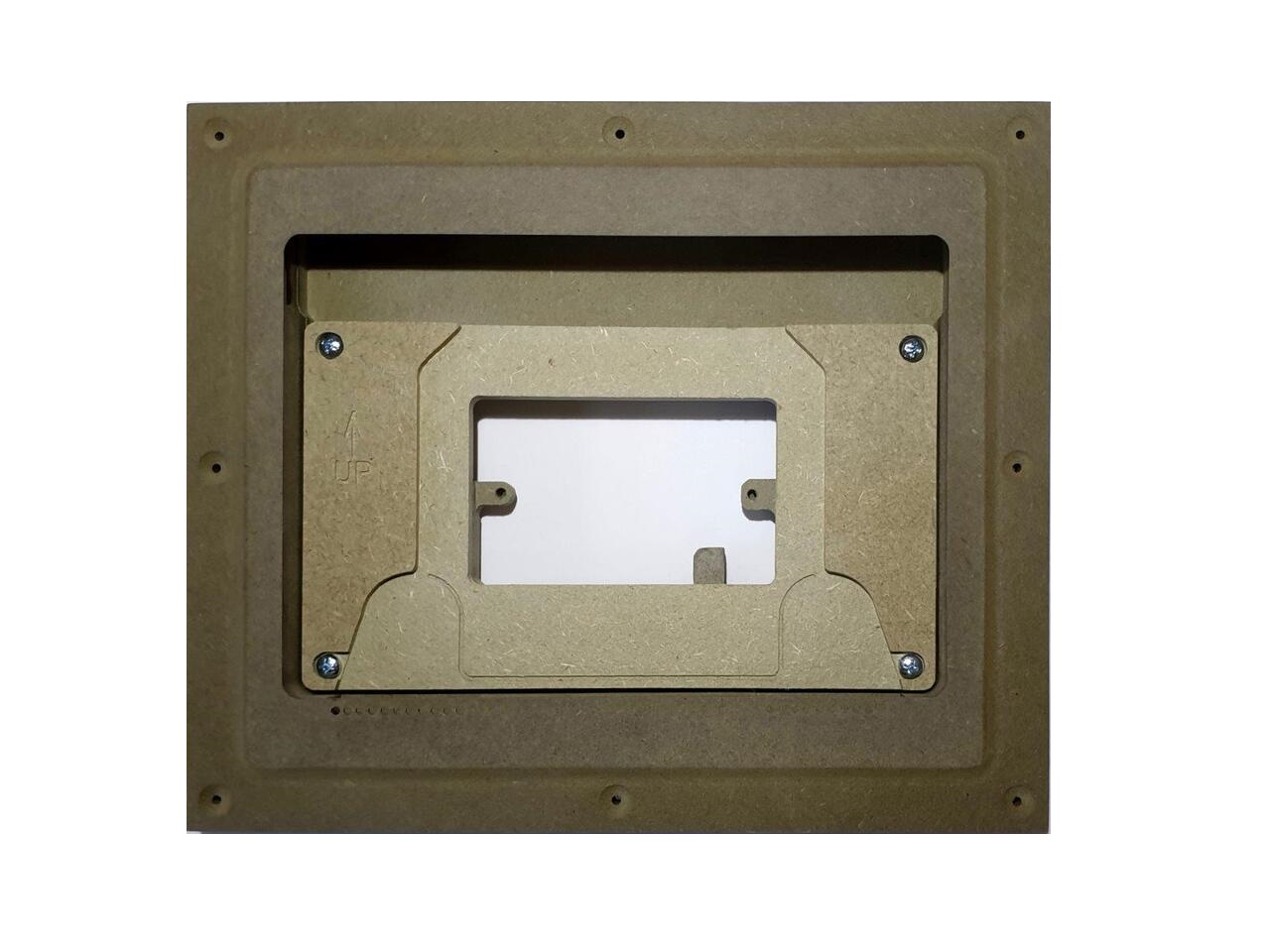

The “WS NC FOR C4 T4 8” is an adapter for in-wall flush installation of Control4 T4IW8 touch screen. The “WS NC FOR C4 T4 8” firmly mounts the touch screen while allowing easy access, insertion and operation.
FOR LOW VOLTAGE (POE) ONLY
Features:
- New Construction
- Flush with the wall.
- For low voltage (POE) only – line voltage connector is blocked
- For 1/2″ drywall. To install in 5/8″ use a shim pack 10-01-067.
- The adapter is supplied unpainted (To be painted after installation as part of the wall).
- With speaker/mic grills.
- For concrete installation use concrete adapter 100-1-790
Key properties:
- Dimensions (W/H/D): 267mm (10.51″)/ 227mm (8.94″)/ 44mm (1.73”)
- Power Supply: None (manual adapter).
