Description

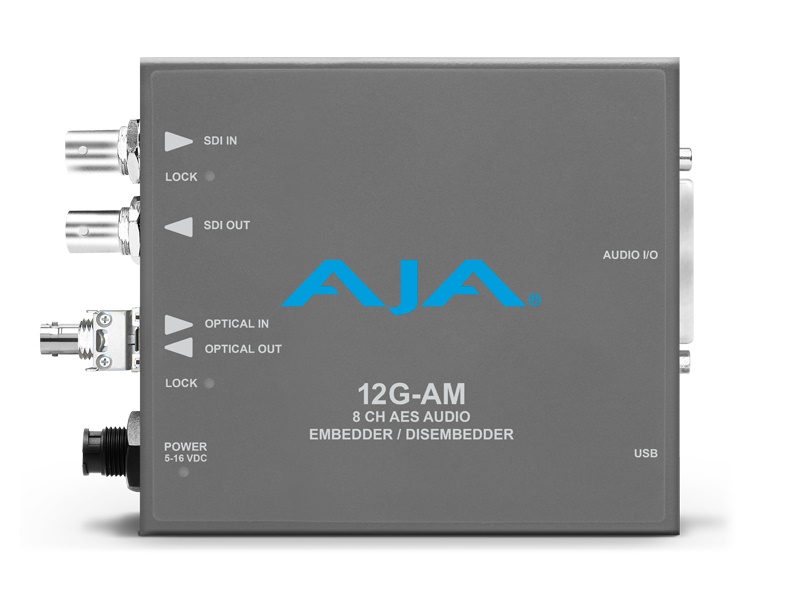

12G-SDI 8-Channel AES Embedder/Disembedder with ST Fiber Rx SFP
The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.
AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable.
The 12G-AM automatically detects and configures the input video standard.
Features:
- 12G-SDI Input and Output up to 4K/UltraHD
- 8-channel balanced AES audio Embedder/Disembedder
- Ships with a ST Fiber single channel SFP Receiver for extending 4K/UltraHD signals over long distances
- AES audio Disembedding is always functional with four AES outputs
- AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
- Selectable AES audio levels
- Automatically detects and configures the input video standard
- Small form factor allows for a wide variety of installation locations
- Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
- USB connectivity via AJA Mini-Config software
- Dipswitch configuration
- 5-16 VDC Power
- Five year warranty
