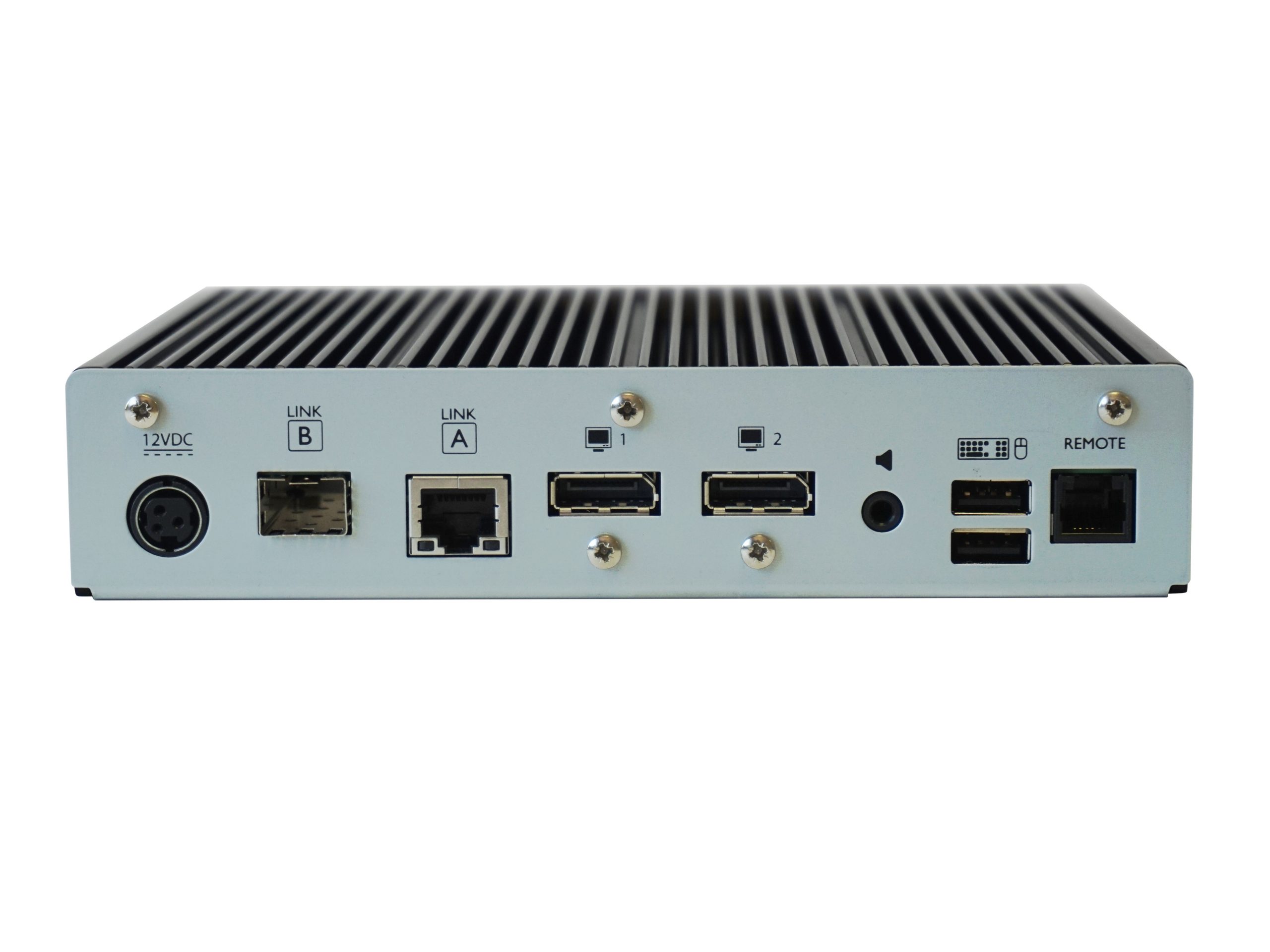

Adder XD641P-DP-US High-Resolution Single-Head KVM Extender (Ultra High-Definition 4K60 Video/USB2.0/Audio)

Description

The ADDERLink™ XD641 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.

Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance 4K KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.

• Single head 4K60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable.
• Point-to-point protocol for ultra-low latency.
• Flexibility between copper and fiber connectivity.
• Adder’s USB emulation ensures reliable computer bootup.

Features:

High-resolution video, real-time control

• The system supports resolutions up to 4096×2160 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling. A local pass-through video port is provided at the transmitter (TX).

Single cable

• 4K60 video, USB2.0 HID (human interface device) and audio are transmitted on a single CATx or fiber cable.

Up to 4km/2.5 mile extension distances

• The ADDERLink XD641 supports both copper and fiber interfaces. It provides a range of up to 100m over a CAT6 cable link, and up to 4km over an optical fiber link.

Emulated USB2.0

• Enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and joysticks.

EDID management

• The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and play

• The ADDERLink XD641 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.

Digital audio

• Video: Encapsulates up to eight channels of 24-bit, 192kHz sampled “Pulse-code modulation” (PCM) uncompressed audio integrated with the video signal.
• USB: Up to two channels of 24-bit, 96kHz sampled PCM audio. HD quality analog audio HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone/speakers. Serial communications  RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.

HD quality analog audio

• HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone/speakers.

Serial communications

• RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.
