Description

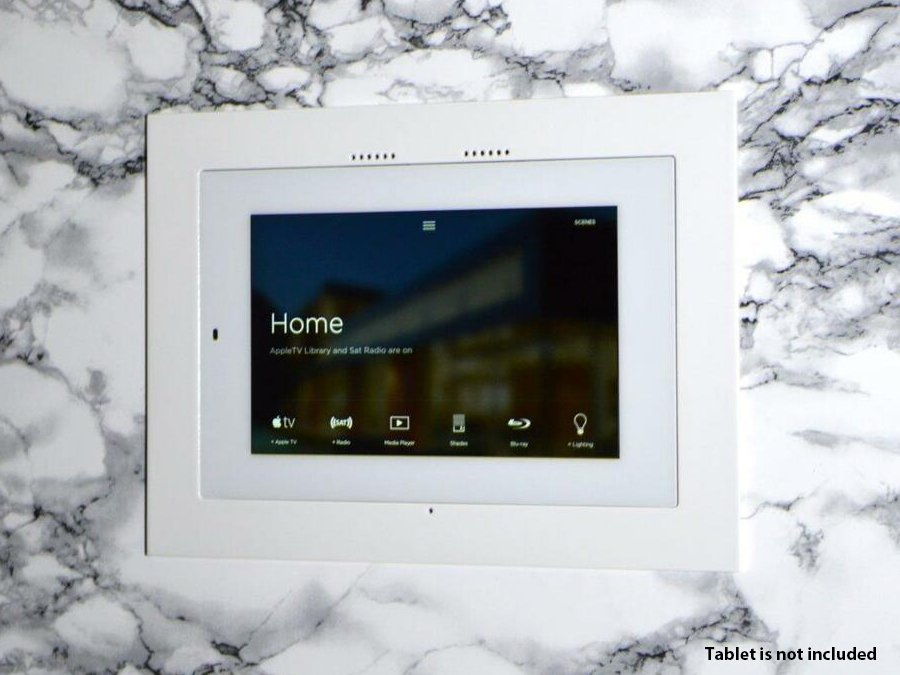

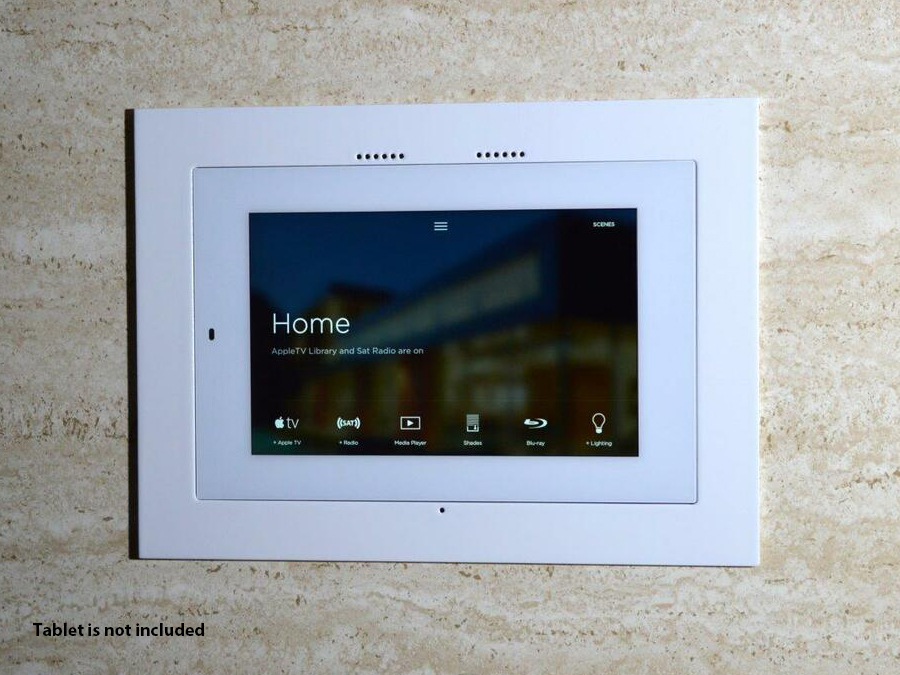

The “WS RETROFIT FOR SAVANT ITP-E8000 8″ SCREEN” is an adapter for in-wall nearly flush retrofit installation of a ITP-E8000 touch screen. The “WS RETROFIT FOR SAVANT ITP-E8000 8″ SCREEN” firmly mounts the ITP-E8000 touch screen while allowing easy insertion, removal and operation.
Features
- Nearly flush with the wall (4mm [0.16”] thick on-wall bezel).
- Allows easy insertion and removal of the touch screen.
- Wall mount contains depth calibration screws.
- Wall board thickness 10mm [0.39″] up to 21mm [0.83″]. For boards up to 32mm [1.25″] thick, reinstall cam latches upside down.
- Bezel attaches magnetically to the retrofit wall mount base.
- The bezel is supplied painted white.
- Designed for the use with ITP-E8000 touch screen (by SAVANT) (touch panel is not included).
- Adapter kit contains: 1. (X1) Wall mount base; 2. (X1) Bezel; 3. (X1) Touch screen adapter 4. (X4) M4 nuts 5. (X4) M4x10 Screws
