Wall-Smart 10-01-216 In-Wall Flush Mount Adapter Designer Style 4-Gang 1/2in Drywall Paintable Depth Calibration

Description

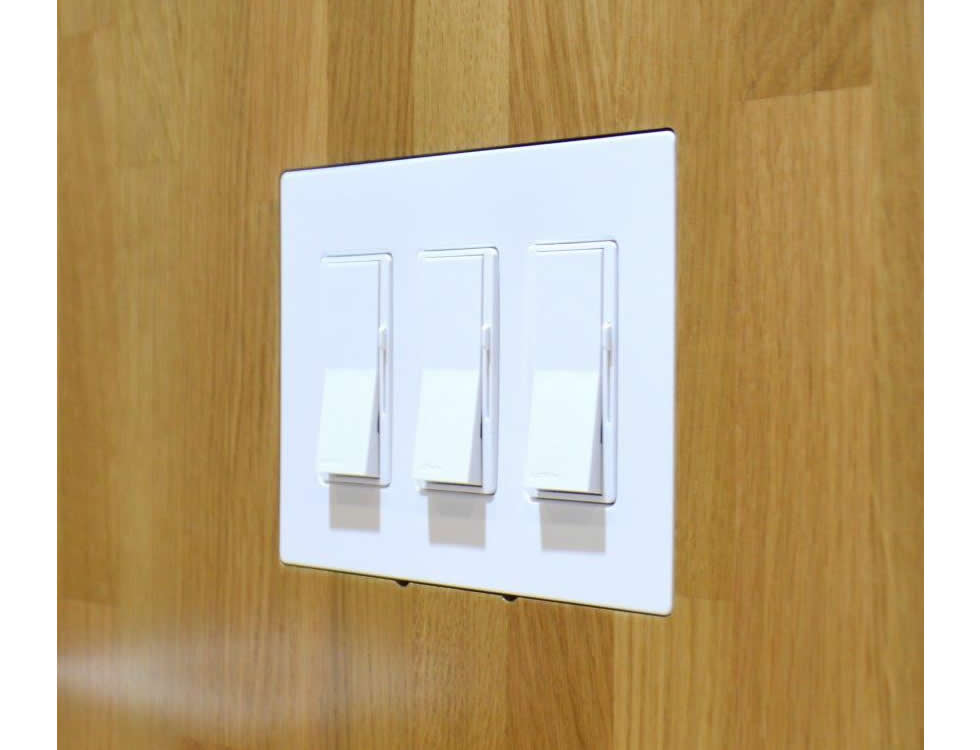

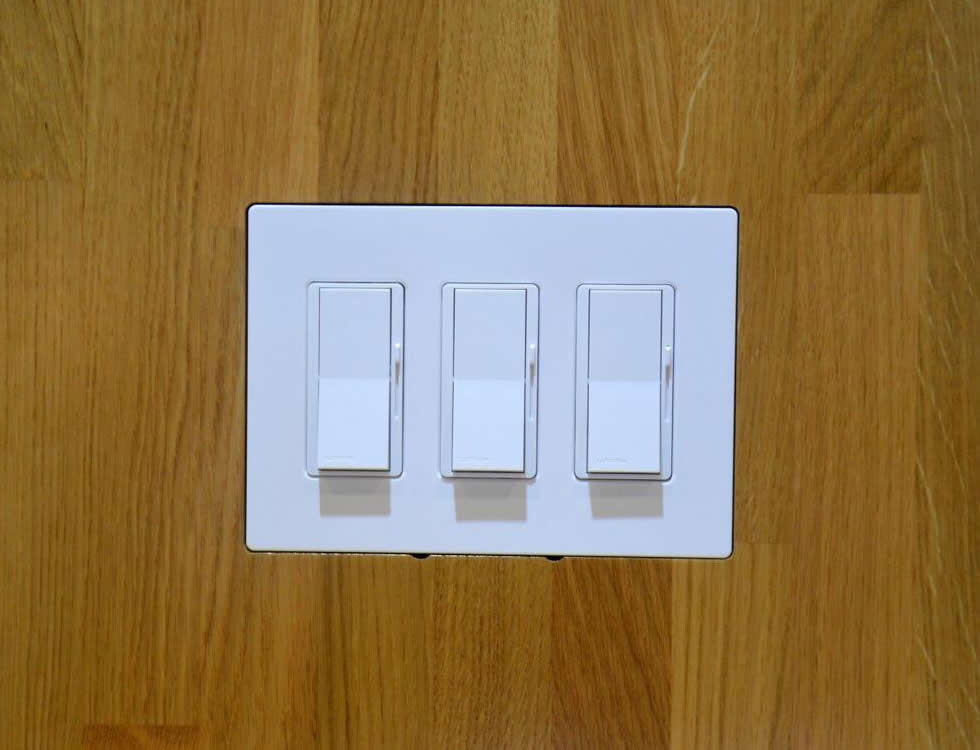

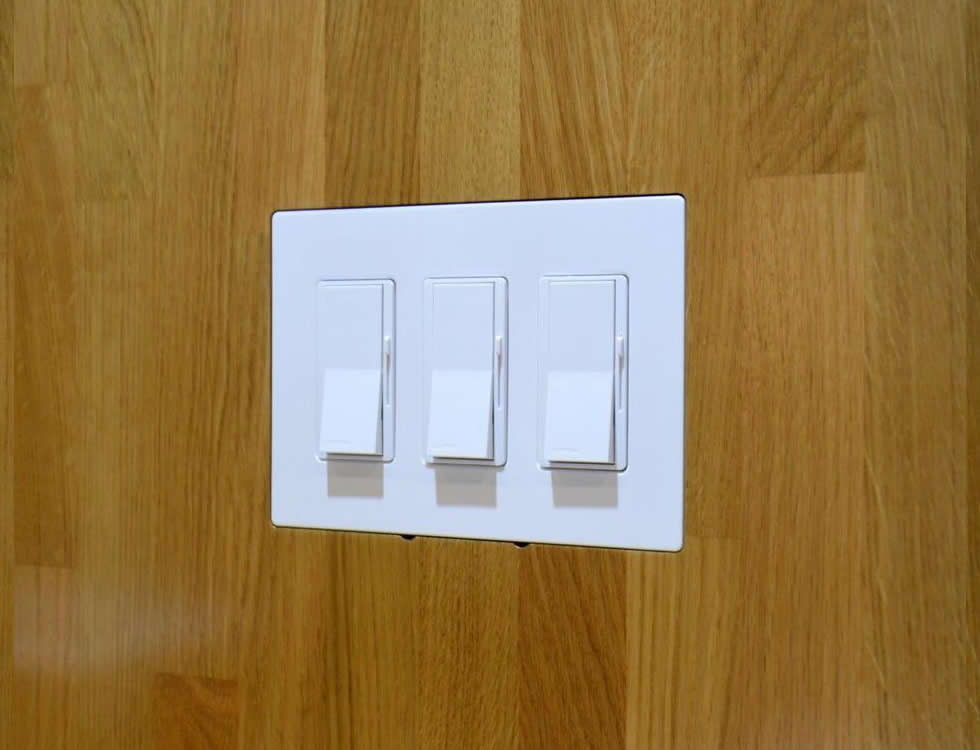

The In-Wall Flush Mount Adapter is designed to accept Designer style 4-gang faceplates and line-voltage Decora style accessories. It provides a flush, recessed mounting solution that integrates with standard 1/2in drywall. The adapter is supplied unpainted so it can be finished to match surrounding wall surfaces.

Key features include a depth calibration mechanism, paintable surface compatibility, and an installation profile that results in a flush finish with the wall. The adapter allows easy insertion and removal of faceplates and accessories while maintaining a secure mount. It is engineered for manual operation and requires no power supply.

Technical details include overall dimensions of 282.8mm x 188mm x 38.6mm and a nominal weight of 0.6Kg. The unit is constructed from moisture resistant MDF to provide a solid mounting surface and paint adhesion. The adapter is intended for installation in 1/2in drywall and does not include an internal power source.

Compatibility covers Designer style 4-gang faceplates and line-voltage Decora style accessories; faceplates, accessories and back boxes are not included. The adapter supports standard Decora form-factor accessories and is suitable where a flush aesthetic is required. Installation guidance is provided in the manufacturer instruction reference 10-04-00101-INS located on the maker’s support site.

Practical applications include residential and commercial retrofit projects where a clean flush finish is required, remodels where walls will be painted to match, and installations where secure yet serviceable access to line-voltage controls is needed. The adapter is suitable for lighting control panels, multi-gang switch arrays, and similar wall-mounted control hardware. Its paintable surface allows it to blend with custom wall textures and colors.

Installation is straightforward and follows common drywall construction practices – the adapter is secured with supplied screws and installation spacers and calibrated for depth prior to finishing. The supplied unpainted MDF is intended to be painted after installation as part of the wall finish. The assembly and materials provide a durable, serviceable mounting platform that simplifies access and maintenance.
