Description

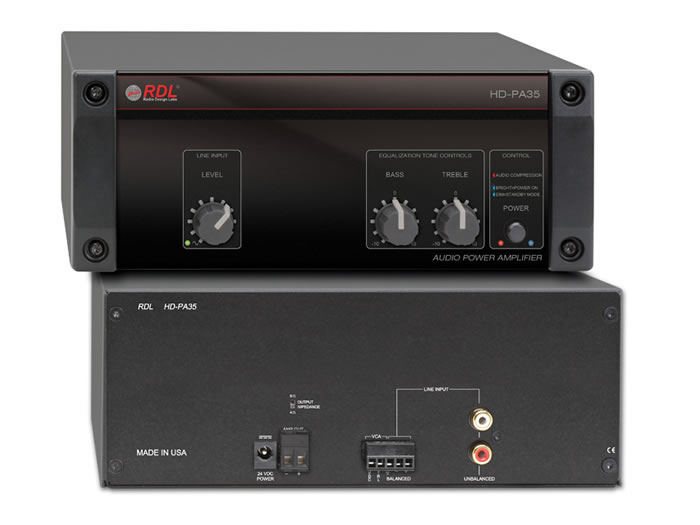

The HD-PA35X is a compact single-zone 35 W Class D power amplifier designed to deliver efficient amplified audio with low heat dissipation. It accepts an unbalanced stereo-summing RCA input and provides front-panel input gain and bass and treble tone controls. The unit includes a worldwide 24 Vdc power supply and a front-panel power/standby pushbutton.
Key features include a high-efficiency Class D output stage, a built-in analog compressor/limiter, and VCA-compatible remote level control. The compressor prevents clipping under overload conditions while preserving program dynamics, and a front-panel LED indicates compressor activity. Output impedance can be switched for 4 ohm or 8 ohm speakers to match system requirements.
Performance specifications include 35 W RMS into 4 ohms and 32 W into 8 ohms with less than 1% THD+N at rated outputs. Noise is specified at less than -75 dB at maximum gain and THD+N is under 0.5% at 1 kHz near the compressor threshold. Frequency response is flat across the audio band with tone controls offering ±10 dB treble and ±9 dB bass adjustment.
Connectivity is straightforward with unbalanced summing RCA inputs and a detachable terminal block for speaker outputs and VCA remote wiring. The VCA accepts 0 to 10 Vdc control or industry-standard 0 to 10 kΩ wall controls for remote level adjustment. Indicator LEDs show signal presence, compressor activity, and power state for quick status checks.
Typical applications include paging and background music zones, additional reinforcement for existing mixer-amplifier systems, and small meeting rooms where compact size and low thermal output are required. The analog compressor enables higher average output levels and clearer speech intelligibility when compared to a non-compressed amplifier of similar power rating. The unit is engineered and manufactured in the U.S.A.
Installation is simplified by the included universal 100-240 Vac power module that provides 24 Vdc to the amplifier chassis and a detachable terminal block for clean wiring. The metal chassis and thermal/short-circuit protection ensure reliable operation in professional environments. Front-panel controls and clear LED status make daily operation and troubleshooting quick and predictable.
