Description

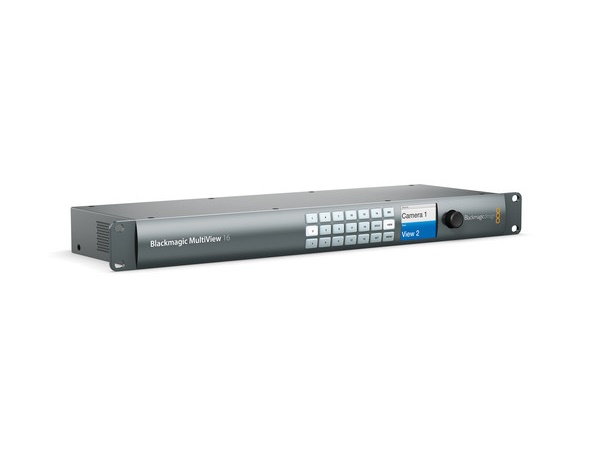

Monitor up to 16 SDI sources using an Ultra HD monitor or television so you get twice the resolution per view! Monitor from SD, HD or Ultra HD-SDI sources in any combination, in any order! Features full frame re-sync on each input.
Note: IEC power cable is not included.
Features:
- Native Ultra HD multi-view output
- 16x 6G-SDI inputs; accepts SD, HD, and Ultra HD resolutions
- Supports Ultra HD 4K (3840×2160) up to 30p; DCI 4K (4096×2160) at 24p
- 2x 6G-SDI, 2x HD-SDI, and 1x HDMI multi-view outputs

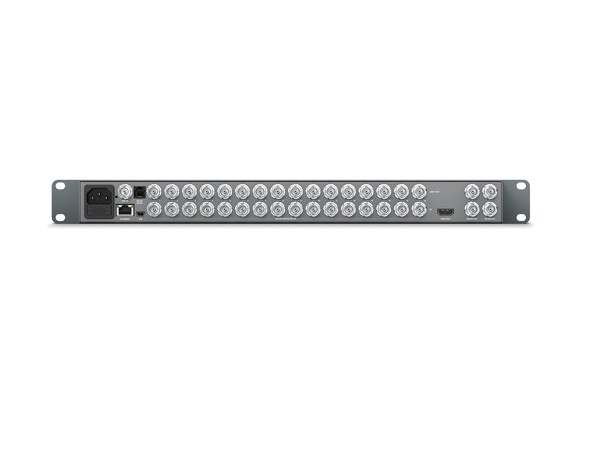

- 16x SDI loop outputs
- 2×2, 3×3, and 4×4 multi-view configurations
- SOLO button for instant full screen of single source
- 2-channel audio meters for each view
- 16×9 SD support
- Tally support with ATEM switchers
- 1RU machined aluminum chassis

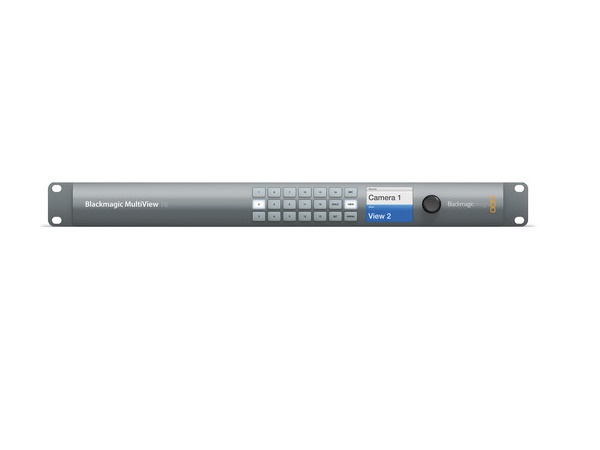

- Front panel control using illuminated buttons, spin knob, and 1.5″ LCD screen
- Software control over Ethernet; supports Videohub router protocol
- Built-in 90 to 240VAC power supply
- IEC power cable required
