Description

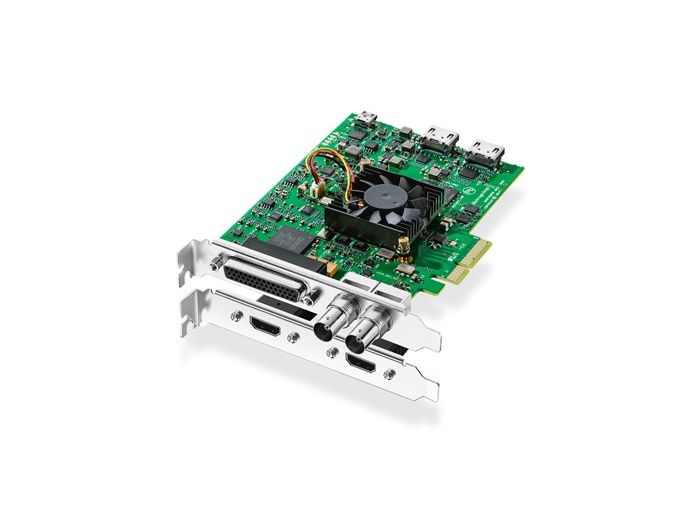

If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, Black Burst and Tri-Sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design!
Features:
- PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
- Multi-rate SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions
- 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
- 10-bit, 4:4:4 1080p by single-link 6G-SDI
- 8-bit RBG / 10-bit YUV HDMI output
- HD to SD down-conversion
- SD to HD up-conversion
- Hardware cross conversion between 720p and 1080p on playback
- RS-422 deck control
- Internal SD keying
- Reference input
- Blackburst and tri-sync
- Supports 16 channels of embedded SDI and 8 channels of embedded HDMI audio in HD, 2K, and 4K resolutions (8 channels of embedded SDI audio in SD)
