Electro-Voice MB200 Wall/Ceiling U-Bracket Kit for Sb121/Sb122PI/Sx100 and Sx300 (Black)

Description

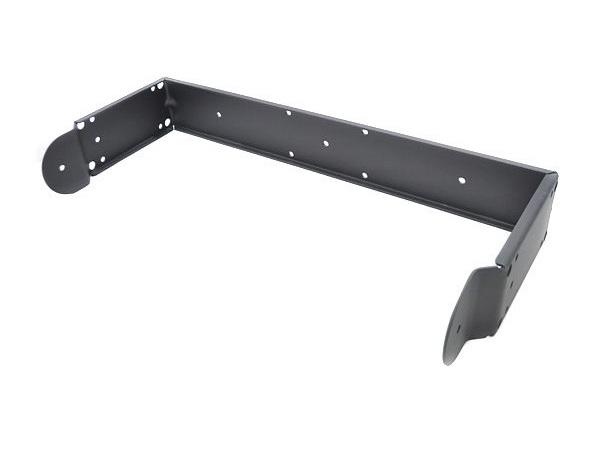

The Mb 200 installation kit consists of a U-bracket, two M8 x 1.25 hex-head bolts, four lock washers, two friction pads, and two 3 / 8 -24 hex-head bolts (see Chart 1). The kit is designed to accommodate the System 200TM installation in a variety of ways.

Wall or Ceiling Mounting:

The robust design of the Mb 200 installation bracket allows the System 200TM speakers to be mounted in almost any position to obtain the desired sound coverage (see Figure 3).

Flying Installations

The Mb 200 bracket “captures” the speaker in a rigid frame which has structurally sound locations for attaching rigging hardware. These attachment points are four 12.7-mm (1 / 2 -in.) diameter holes located on the ends of the bracket. A 3 / 8 -in. “quick link” (or similar hardware) can be readily connected to each attachment point.

System 200TM speakers can be flown individually in either a horizontal or vertical position, or two speakers can be flown together in a vertical position (see Figures 4 and 5).

System 200TM Horizontal Arrays

Arrays of two to six speakers are securely supported in a frame comprised of Mb 200 and Mb 300 brackets. To create a horizontal array, two Mb 200 brackets are simply locked into the correct alignment position using the brackets from the Mb 300 Horizontal Array Kit (see Figure 6). The array is extended by using one additional Mb 200 bracket and one Mb 300 kit for each additional speaker. To complete the circle for a six speaker array, one additional Mb 300 kit is required. Please refer to Chart 2 to select the exact number of each kit needed, based on desired array size. (Note: refer to Mb 300 Horizontal Array Kit engineering data sheet for detailed instructions on System 200TM horizontal array construction using Mb 200 Installation and Mb 300 Horizontal Array Kits.)

Features:

• Mounting kit for SystemTM 200 speakers
• May be used in conjuction with OmniMount® Series 100 support system1
• Versatile design allows the speaker to be aimed at any angle from wall or ceiling
• Provides a rigid frame for flying one or two speakers
• Creates arrays of two to six speakers when used with the Mb 300 Horizontal Array Kit
• Color: Black
