Description
- HDR
- HDCP 2.2 and 1.4
- Deep Color
- Lip-Sync
- Uncompressed LPCM digital audio up to 7.1 channels
- Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA)
Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
Built-in video wall controller accommodates any number of rows and columns up to 16×16
Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
Enhanced API for added functionality with third-party control systems
Built-in web interface, Telnet, and UDP
Compatible with the Gefen Keyboard Switching Controller software
Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
Two-port Gigabit Ethernet switch built into the Receiver unit
Mode switch on Sender for sharpness or motion-optimization of image
Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
Locking power supply connectors
Low-profile, half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
Sender and Receiver can also be surface-mounted using the included L-brackets

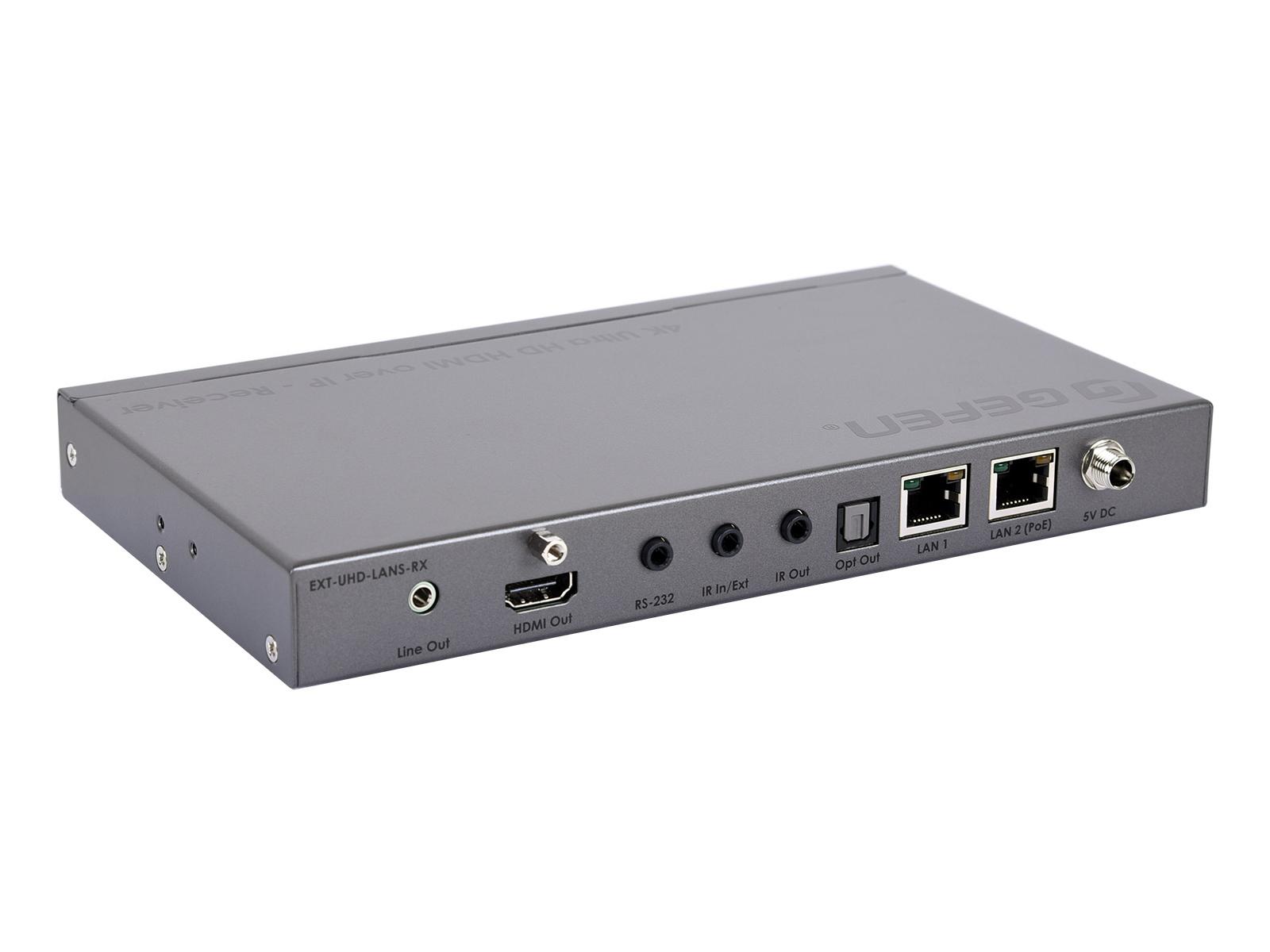

Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display
* Features and specifications are subject to change without notice.
** Pending features to be activated via an upcoming firmware update
trol systems
Built-in web interface, Telnet, and UDP
Compatible with the Gefen Keyboard Switching Controller software
Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
Two-port Gigabit Ethernet switch built into the Receiver unit
Mode switch on Sender for sharpness or motion-optimization of image
Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
Locking power supply connectors
Low-profile, half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
Sender and Receiver can also be surface-mounted using the included L-brackets
Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display
* Features and specifications are subject to change without notice.
** Pending features to be activated via an upcoming firmware update
