Description

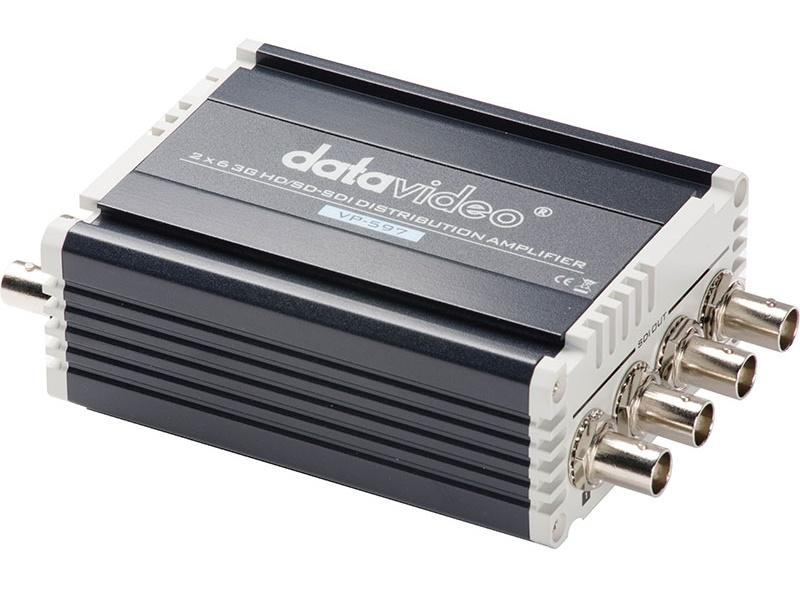

Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control (non-locked). It supports 3G/HD/SD SDI video with embedded Audio and re-clock design for long distance transmission. Two source inputs can be controlled by an A/B panel switch or thru GPI remote control interface.
VP-597 is ideal for simple A/B source switching to multiple HD displays or it can be used as a backup 3G/HD/SD SDI input sources switcher for live events.
Features:
- 2 x 3G/HD/SD-SDI inputs
- 6 x 3G/HD/SD-SDI distribution outputs with re-clock
- Supports embedded Audio SDI
- Two input video sources can be controlled by A/B switch or GPI remote (non-locked)
- DC-12V
Supported video formats:
3G-SDI
- 1080P 50/59.94/60
HD-SDI
- 1080P 23.98/24/25/30
- 1080i 50/59.4/60
- 720P 50/59.94/60
SD-SDI
- 525i /625i
