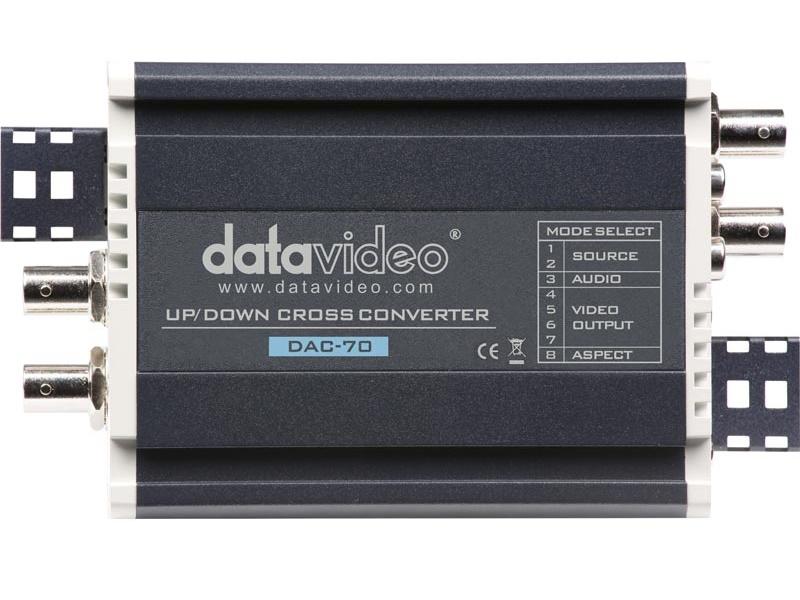

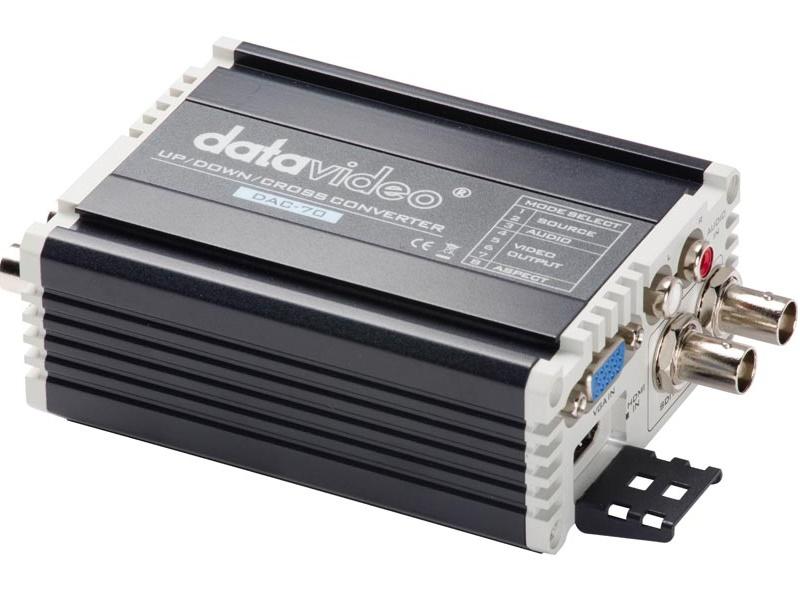

Datavideo DAC-70 Up/Down Cross Converter/3G-SDI/1080p

Description

Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA,
HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts.

Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance
SDI cable. Solutons like lecture theater, church, auditorium room and conference hall.

Features:

• 3G/HD/SD Up/Down/Cross convert
• Audio/HDMI/SDI/VGA input
• 3G/HD/SD SDI and HDMI output
• Can be rackmounted using optional RMK-2 2RU Rack solution
• DC 12V, 3.6 watts

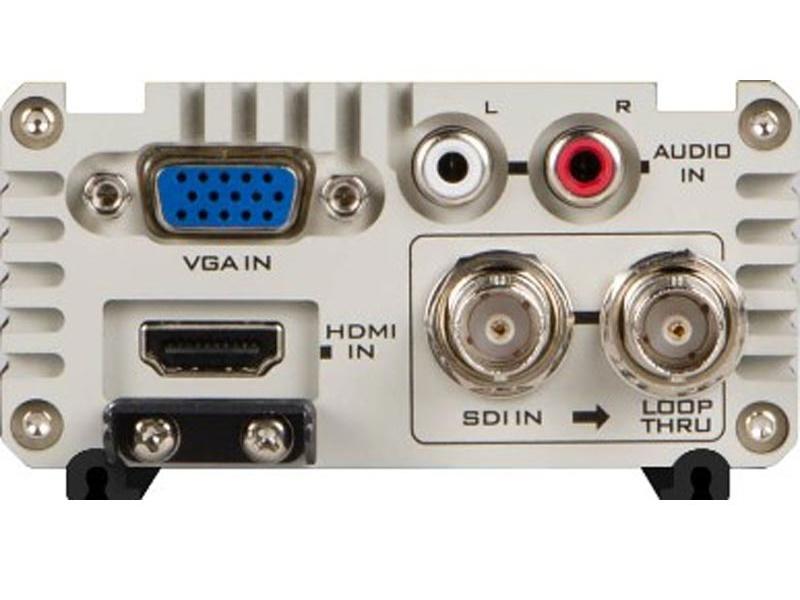

Video Inputs (VGA x 1, HDMI x 1 , HD/SD-SDI x 1)

• SDI (YUV): 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080psf30/
  29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 525i, 625i
• HDMI (YUV / RGB): 1080p60/59.94/50, 1080p30/29.97/25/24/23.98,
  1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 480p, 576p, 480i, 576i,
  800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1600×1200@60Hz

• VGA (RGB): 800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz,
  1366×768@60Hz, 1400×1050@60Hz, 1600×1200@60Hz, 1280×720@60Hz, 1920×1080@60Hz

Video Outputs (SDI x 2, HDMI x 1, SDI Loop thru BNC (front panel))

• SDI / HDMI : 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080i60/
  59.94/50, 720p60/59.94/50, 525i, 625i

Audio Format (Input)

• Analog Audio L/R : stereo audio
• SDI / HDMI embedded audio up to 8CH, 48KHz, PCM audio
• HDMI embedded audio up to 8CH, 44.1/48/96KHz, PCM audio

Audio Format (Output)

• SDI embedded audio up to 8CH, 48KHz, PCM audio
• HDMI embedded audio up to 8CH, 48KHz, PCM audio

Operating Humidity

• 10% to 80%

* USB interface for firmware upgrade
