Description

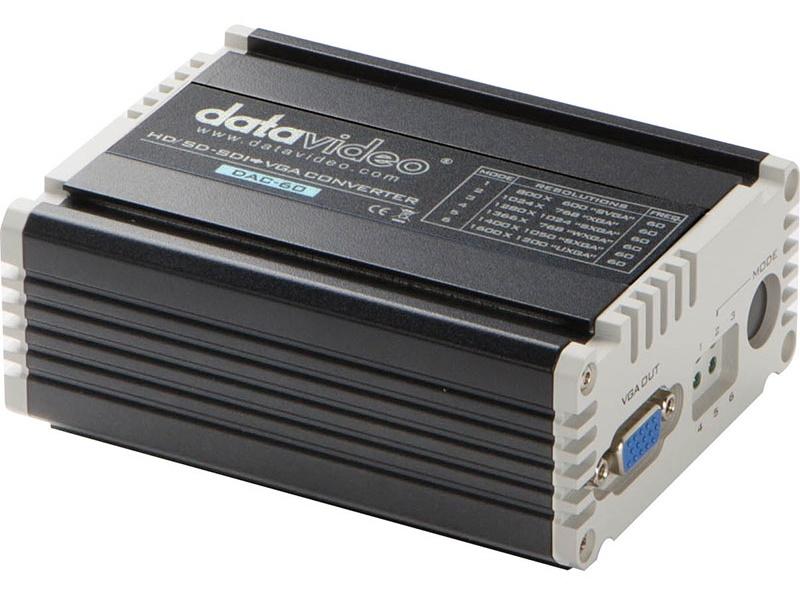

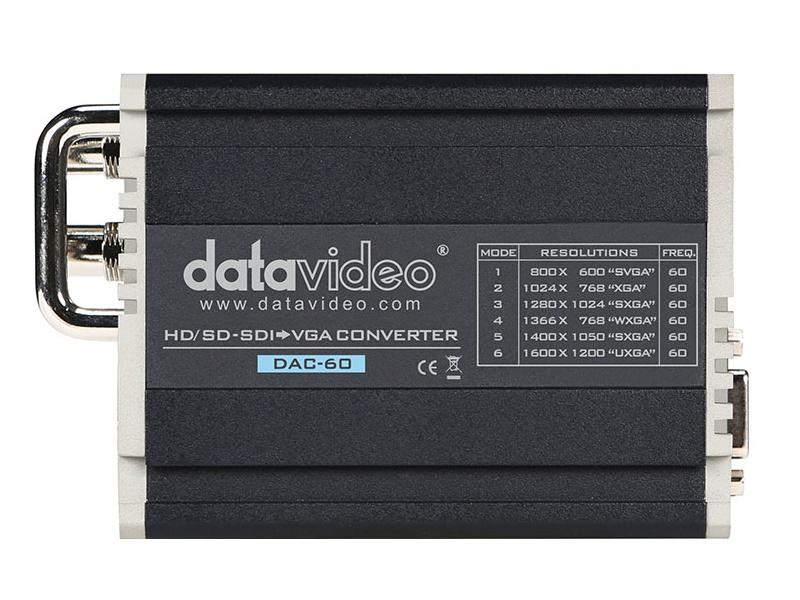

The Datavideo DAC-60 is a HD/SD-SDI to VGA converter.
It’s designed for use with equipment such as projectors, plasma TV, and LCD screens.
Features:
- Supports Brightness, Contrast, Hue and Saturation of Adjustment
- Supplied with a Windows application that connects via USB and enables adjustment
of the colour, contrast or saturation - Settings from the application are retained when the computer and power are removed

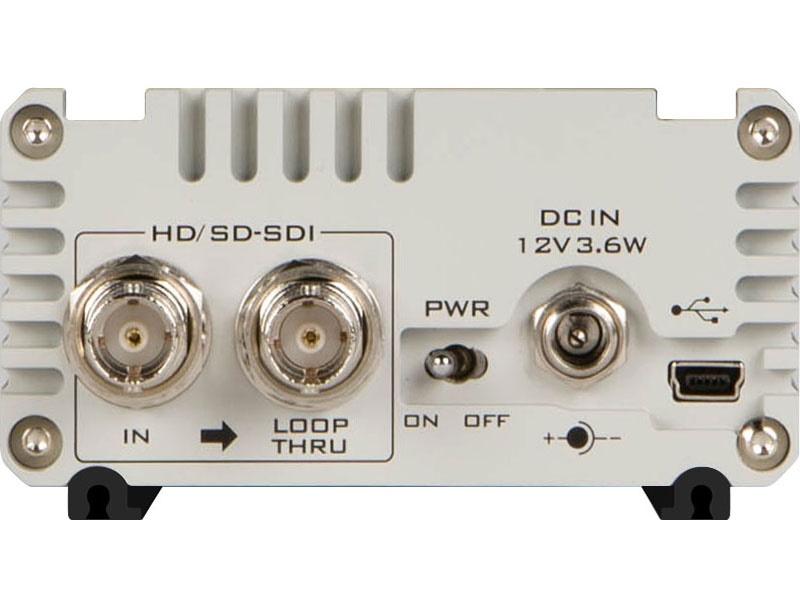

- SDI loop through is unaffected by the adjustments to the VGA signal
- Dual output available (SDI & VGA)
- Auto 3G/HD/SD-SDI detection
Supports 3G/HD/SD-SDI format :
- SD – 720 x 480 i / 720 x 576 i
- HD – 1280 x 720 50p/60p/59.94p
- 1920 x 1080 50i/60i/59.94i
- 1920 x 1080 24p/25p/30p
- 3G – 1920 x 1080 50p/60p/59.94p Support 525i & 625i SD D1 format

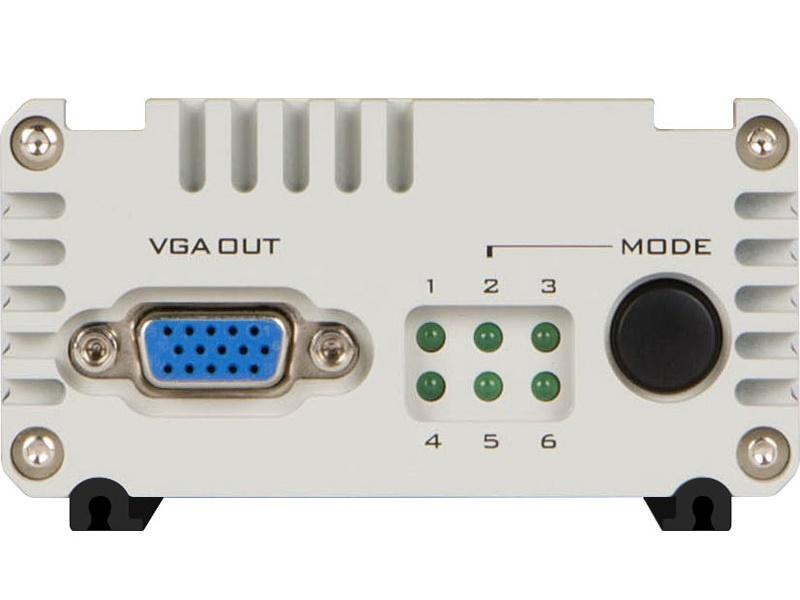

VGA Output formats:
- 800 x 600
- 1024 x 768
- 1280 x 800
- 1280 x 1024
- 1366 x 768
- 1400 x 1050
- 1600 x 1200
- 1920 x 1080
- 1920 x 1200
