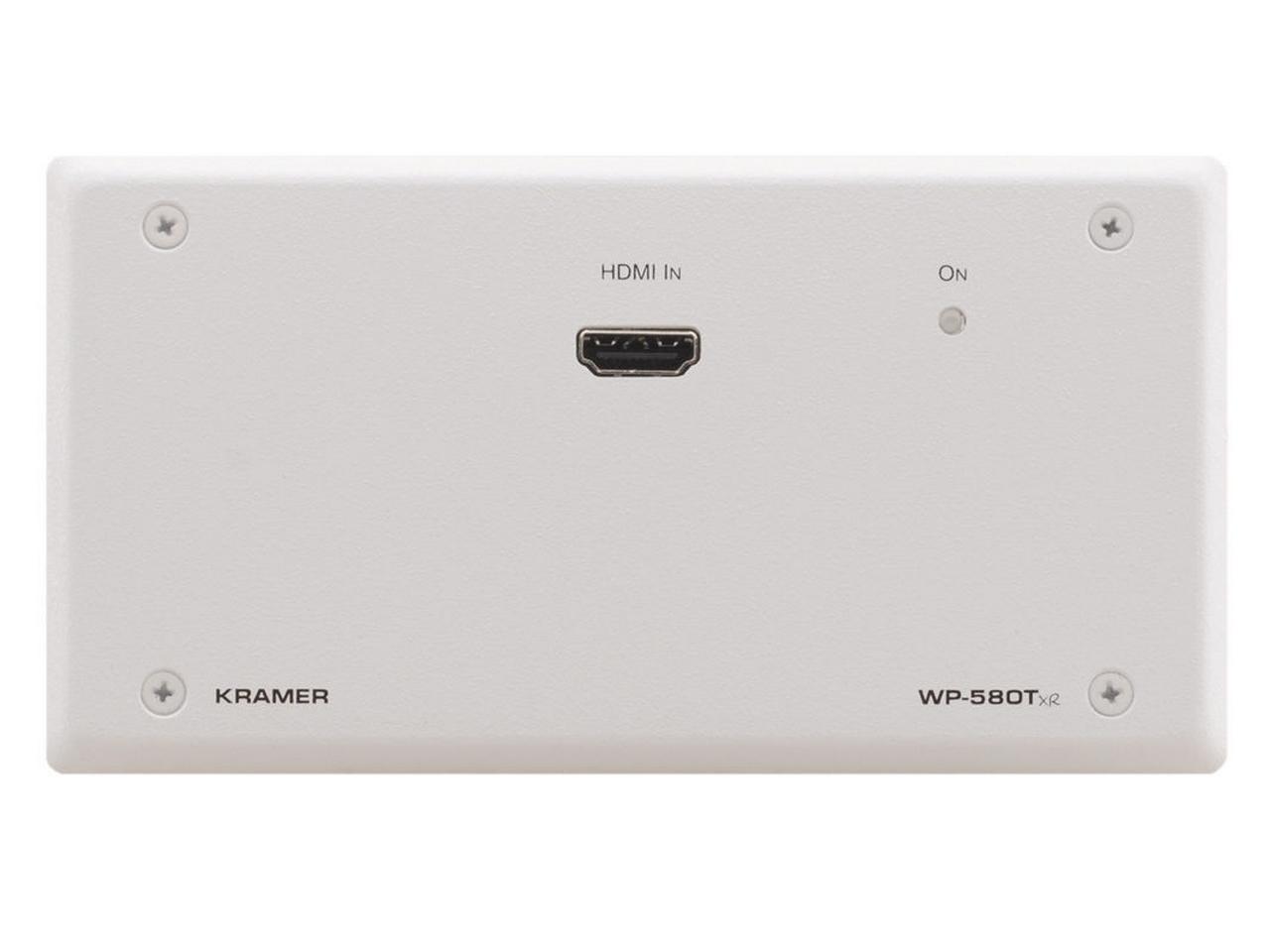

Kramer WP-580T Active Wall Plate – HDMI over HDBaseT Twisted Pair Transmitter

Description

The WP-580T is a high-performance, HDBaseT twisted pair wall plate transmitter for HDMI signals. The WP-580T inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP-580R receiver.

• Max. Data Rate – 10.2Gbps (3.4Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliance.
• HDBaseT™ Technology.
• HDMI Support – Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
• 3D Pass-Through.
• EDID PassThru – Passes EDID signals between the source and display.
• 2K & 4K Support.
• System Range – Up to 70m (230ft).
• Cable – Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer’s BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
• Indicators – Status LEDs for input, output, link and power.
• Dimensions – 12.4cm x 3.12cm x 7.9cm (4.88″ x  1.29″  x 3.12″) US; 15.1cm x 2.96cm x 8.6cm (5.95″ x 1.17″ x 3.39″), 15.1cm x 2.96cm x 8.0cm (5.95″ x 1.17″ x 3.15″) EU (W, D, H).
• Wall Plate Size – 2 gang EU/US.
