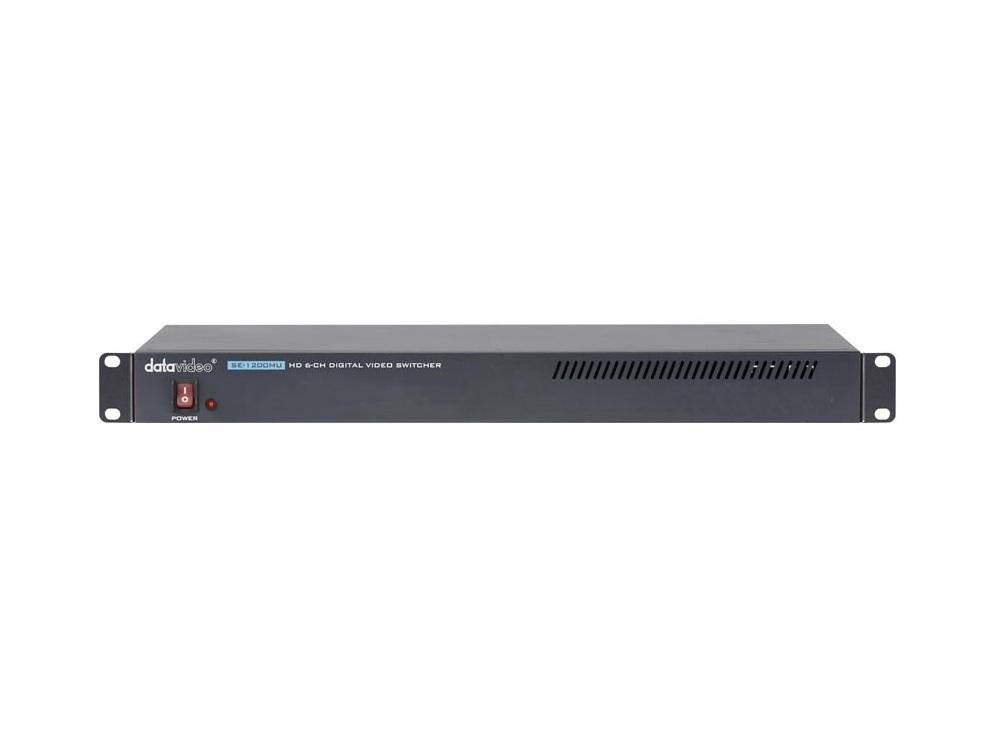

Datavideo SE-1200MU 6 Input Rackmount HDMI/HD-SDI Switcher

Description

Whether you are filming a seminar or conference, conducting a live outside
broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video
switcher enables you to switch seamlessly between video sources and blend high-
quality digital content on the fly.

SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It
features a 6-Channel HD video input that is incredibly reliable, unlike PC-based
systems that are prone to crashing mid production.

SE-1200MU streams out multi-view screen video in real-time to a control PC for
monitoring and control remotely. It is designed to be fully controlled from any
Windows Laptop / PC with the included SE-1200 software control panel, or the RMC-260
control panel.

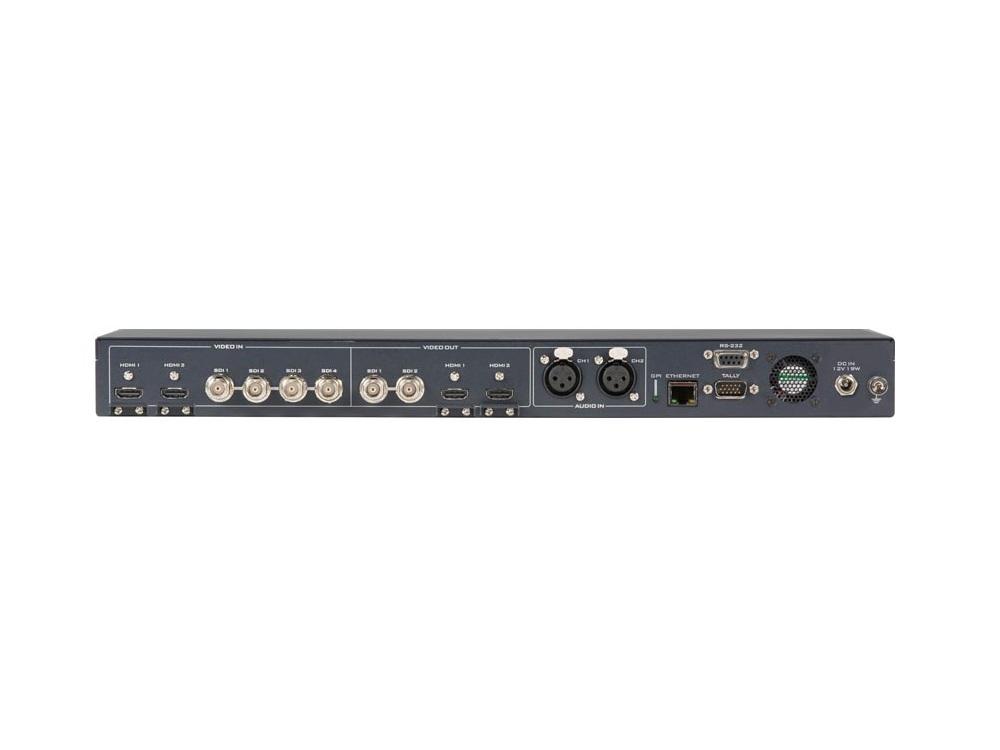

SE-1200MU includes four HD-SDI and two HDMI inputs and an internal frame
synchronizer so you can use sources without gen-lock such as consumer HDMI cameras
or even computers for live PowerPoint™ presentations.

Two assignable HD-SDI and two HDMI outputs for connecting an HD recorder, monitor
and a streaming encoder, plus two Balanced XLR audio inputs for connecting an
external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still
stores, audio delay, tally and RJ-45/RS-232 remote control interface.

Features

• 6 video inputs ( HD-SDI x 4 + HDMI x 2)

  • Frame Sync on each input
  • Flexible Mix/Effects Processor with
  • 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
  • 2 DSK, supporting Linear & Luma Key Modes
  • 1 PIP (assignable to any of the 4 keyers
  • Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders
    & Softness Control
  • Wipe, Mix & Cut Transitions
  • Full M/E Preview function
  • Any Input (1-6) can be used as a Frame store
  • Assignable Outputs
  • Each HD-SDI output can be switched in the Menu as:
    • PROGRAM (w/ DSK)
    • Clean PROGRAM (w/o DSK)
    • Clean PREVIEW (w/o DSK)
    • MULTISCREEN
    • Input 1-6
  • XPT (Cross Point Assignment)
  • PC control
  • Control Switcher via USB / Laptop keyboard
  • RMC-260 optional – SE-1200MU Digital Video Switcher remote controller
  • Remote streaming of Multi view out using built-in Motion JPEG Streaming
    processor
  • Tally output
  • GPI output
  • 1U rack mount (with rack ears)
