Description

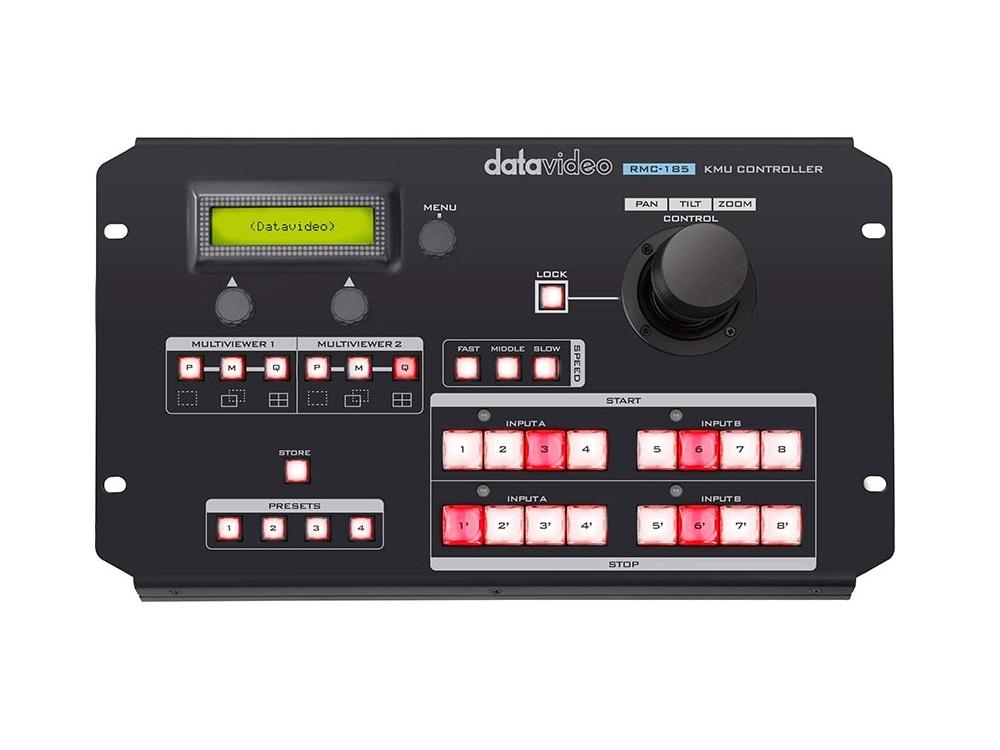

The RMC-185 is a cost effective physical controller designed specifically for
control of the KMU series 4K Multi-Camera Processor.
The RMC-185 interfaces with the KMU-100 via an RS-422 interface. This dedicated
controller allows operators to make smooth zoom and pan/tilt motions by using the
joystick.
4 presets are available that hold scale, position, motion path and speed of all 4
individual 3Gb/s outputs, per channel. Buttons allow start/stop/reset of motion in a
predefined speed of every individual output.
Features
- Dedicated control surface for KMU-100
- Provides easy and intuitive control of the KMU-100
- Easily pan, tilt and zoom to create the user defined windows on the 4K signal
- Switch between live and preview inputs
- LCD display showing setup menu options
- Three Multiviewer modes (Preview, A to B Motion and Quad)
- Robust, rugged metal housing
- Dimensions: 310 x 129.98 x 170mm
- Weight: 1.5 Kg
