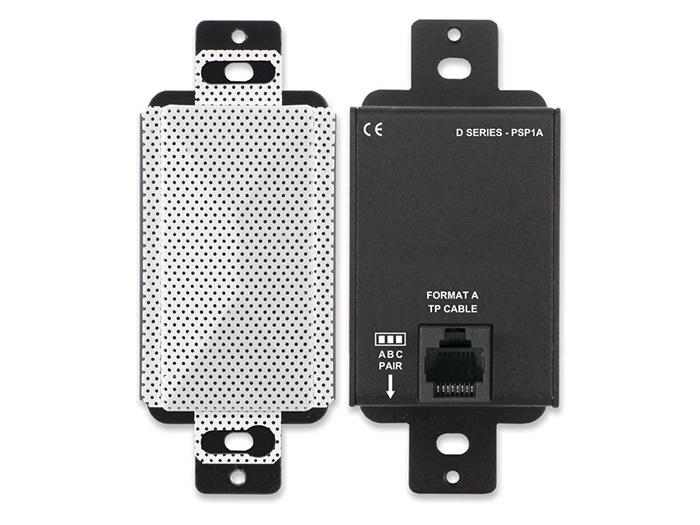

RDL D-PSP1AF Decora-Style Active Loudspeaker/Format-A/White

Description

The D SERIES-PSP1AF is a compact active loudspeaker that delivers rich, detailed
sound in Decora-compatible wall or chassis mounts. It is a single-pair audio
amplifier module compatible with RDL Format A twisted pair products. The PSP1AF
receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch
set during installation determines which of the three FORMAT-A pairs is amplified.
Amplification is provided by a high-efficiency Class D power stage with audio
filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D
output stage produces negligible heat for all levels of expected voice or music
modulation. The amplified output level is set by the installer using a volume
control located behind the speaker grill. The PSP1AF includes an analog compressor/
limiter that makes higher average sound output levels possible without clipping.

The driver is constructed of materials found in premium larger speakers. The
unique steel enclosure provides full baffling in a tightly sealed rigid structure.
This produces sonic presence within an extended frequency range expected from larger
speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion
and increase peak power capability. Dispersion covers a spherical area of nearly 180
degrees with the speaker mounted in a wall.

Features:

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface
• Color: White
