Description
The SF-NP40D is an audio power amplifier that converts two Dante network audio
channels to two 4 Ohm or 8 Ohms amplified outputs. Each output provides 20 watts
into 8 ohms for a network digital audio level of 0 dBFS. Special software is not
required to configure the module.

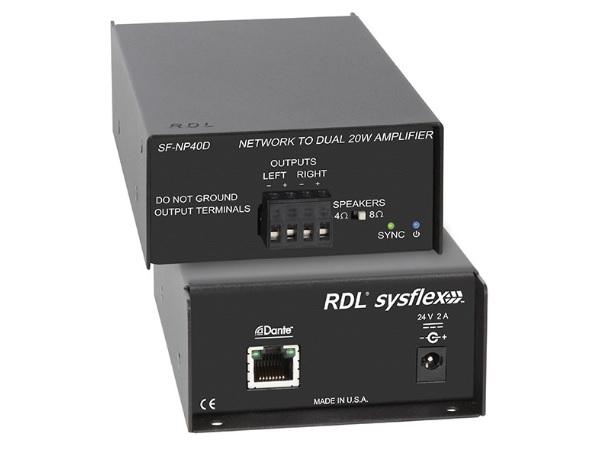

A front-panel blue LED illuminates when the SF-NP40D is powered from its included
external 24 Vdc power supply. The module is equipped with both thermal and output
short-circuit protection. The high-efficiency Class D output stages produce minimal
heat for all levels of expected voice or music modulation. Valid synchronization to
the Dante network is indicated by a green LED visible from the front of the unit.
The SF-NP40D is constructed in a durable, professional all-metal enclosure
suitable for free-standing, surface-mounted or rack-mounted operation. This full-
featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous
duty in demanding installations. The versatility of SYSFLEX products adds enormous
flexibility in the design and installation of professional A/V systems.
Features:
- Converts Two Dante Network Audio Signals to two 20 W Outputs into 8 Ohms
- Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- 0 dBFS Input for 20 W per channel into 8 Ohms or 15 W per channel into 4 Ohms
- Special Software Not Required for Module Setup
- LED Indicator for Network Sync
- High-Efficiency Class D Operation
- Thermal and Short-Circuit Protection
- Included Power Supply 100 to 240 VAC, 50/60 Hz, 1.5A Input; 24 Vdc Output
- SF-NP40D includes North American Cord; SF-NP40DE excludes Power Cord
