Aten PE6208AV 8-Outlet eco PDU

Description

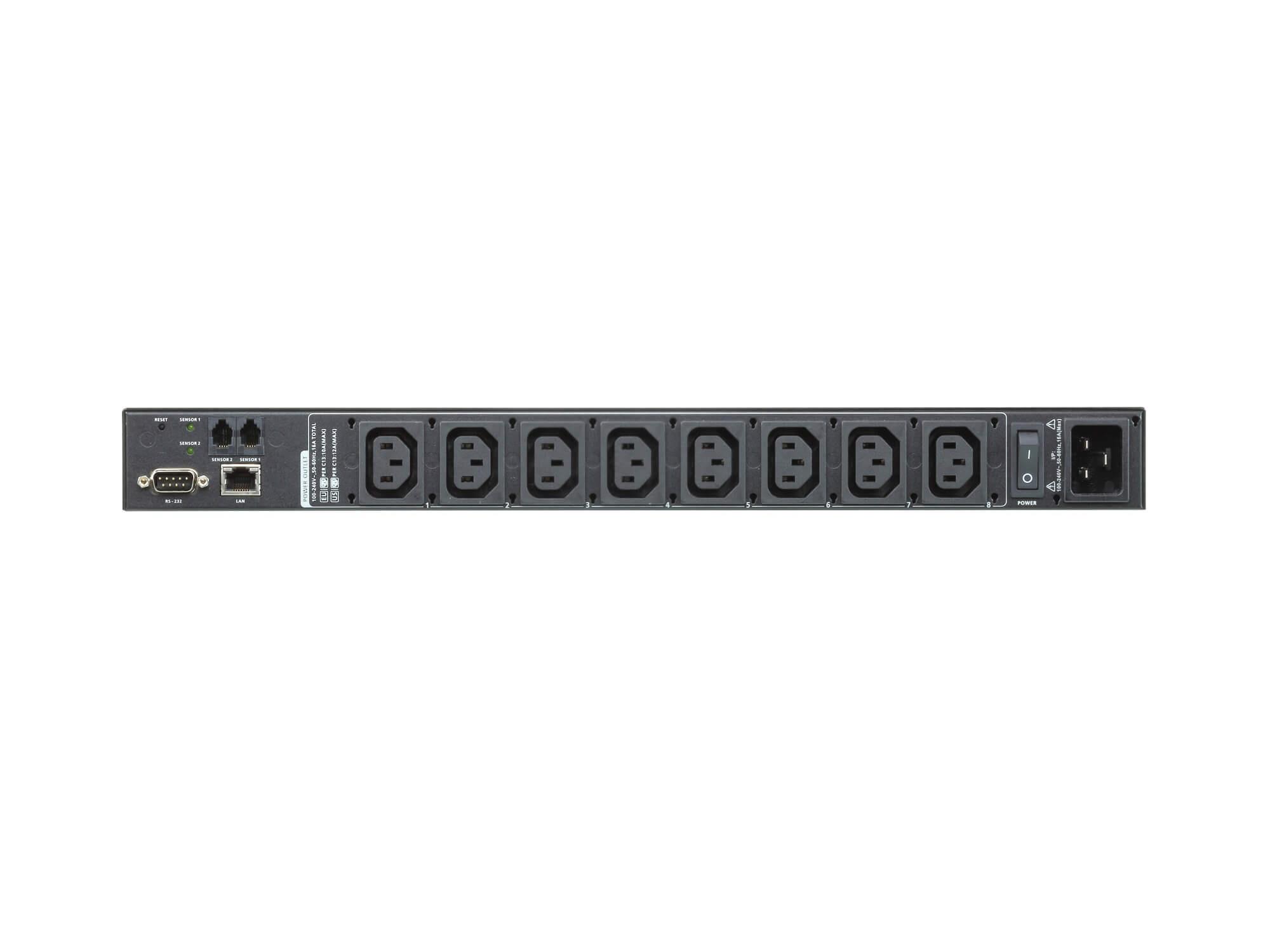

Ideal for Pro-A/V applications, the ATEN NRGence™ PE6208AV eco PDUs are
intelligent, 1U rack PDUs that contain 8 AC outlets available in an IEC socket

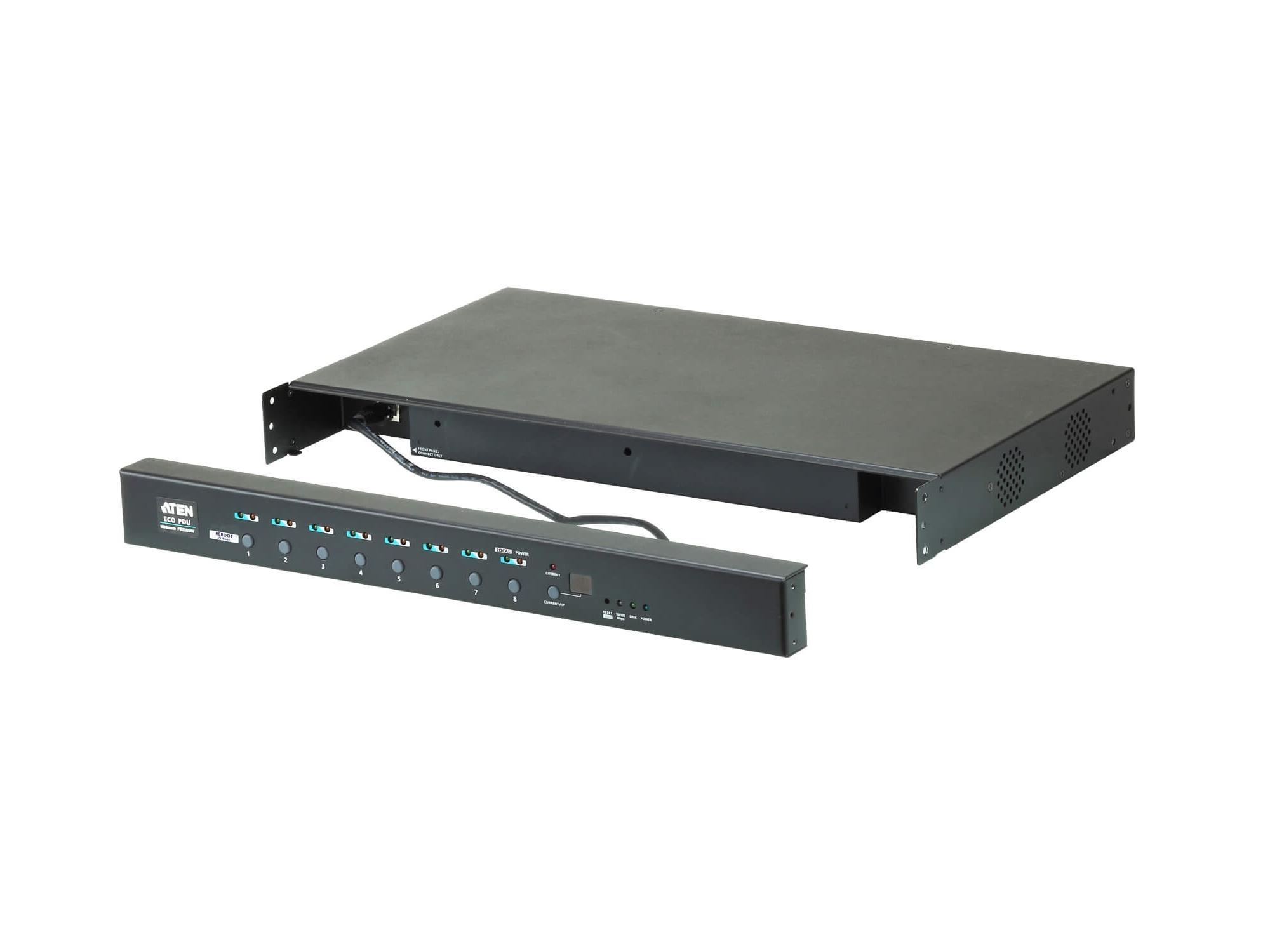

configuration. The unique design with detachable front panel is convenient and
mounts with different Pro-A/V equipment in 19” racks with different depths. In
addition to remotely controlling individual outlets over the LAN, the front panel
pushbuttons offer an extra option to control the outlets locally, allowing the
flexibility to easily shutdown Pro-A/V equipment on the spot or from a remote
location – for reduced power consumption. The outlets feature a sequential
power-ON function that ensures Pro-A/V systems are powered on safely. Furthermore,
compatibility with the ATEN Control System and Control4 libraries allow the PE6208AV
to integrate with any Pro-A/V equipment for full control of all devices without
complex programming.

The PE6208AV are optimal energy solutions for data centers as well. With the
combination of ATEN eco PDUs and eco Sensors Energy Management software, a data
center will be equipped with real-time monitoring, measurement, and analysis of
energy consumption – with reports of power usage, PUE, RCI, and RTI to meet
the ISO 50001 requirements. These indices reflect the data center’s energy
usage and offer energy saving suggestions for optimizing energy use and reducing
costs.

Features:

Connections

• Detachable front panel fits 19” racks with different depths
• Built-in 10/100 Mbit Ethernet Interface
• Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense,
  Ping, SNMP V1, V2, and V3, Telnet
• 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
• Browser access via IE, Firefox, Chrome, Safari, and more
• Easy integration with ATEN Control System and Control4 libraries
• Supports RS-232 port and power outlet control (on/off) by outlet group

Metering

• 1% Metering Accuracy – supports bank-level power metering
• Environment Monitoring – supports external temperature or temperature and
  humidity sensors for rack temperature and humidity monitoring

Outlet Switch Control

• Remote and local power outlet control (On/Off, Power Cycle) by individual
  outlets and outlet groups
• Multiple Power Control Methods – Wake on LAN, System After AC Back, Kill
  the Power
• Power-On Sequencing – users can set the power-on sequence and delay time
  for each outlet to allow equipment to be powered on in the correct order to enhance
  equipment safety
• Proactive Overload Protection (POP) – automatically powers off the last
  outlet that caused the current overload to protect high-end pro-A/V equipment and
  servers

eco Sensors Energy Management Software*

• Automatic discovery of all ATEN PDUs within the same intranet
• Remote real-time power measurement and monitoring of PDUs
• Real-time environment monitoring via sensors
• Plotting and monitoring of all ATEN PDU devices
• Exceed threshold alerts through real-time monitoring, SMTP, and System logs
• Power analysis reports

* eco Sensors is designed to work with NRGence™ eco PDUs and is bundled
with all PE Series models.
