Description

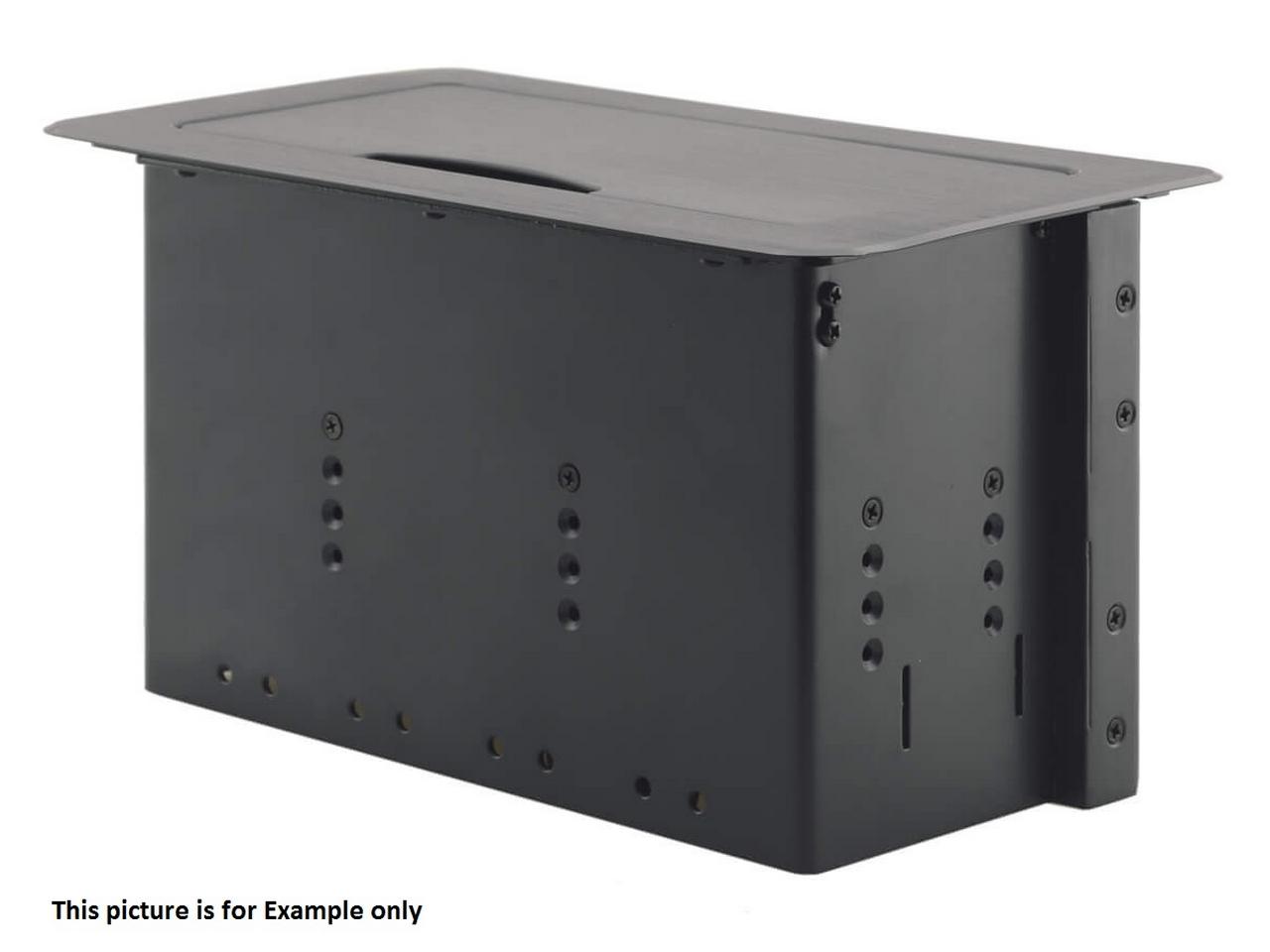

The TBUS-6xl is the enclosure of a new modular system with a tilt-up lid. A complete
TBUS system requires the enclosure, an inner frame, a power socket, inserts and a
power cord.
NOTE: The TBUS enclosure, power socket, power cord &
inserts are purchased separately.
- Inner Frame – 3 different “T3F”
inner frame options are available that can accommodate a combination of up to 4 power
sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer
TOOLS. - Power Sockets – 8 different “TS” single power socket options
are available to accommodate the power requirements worldwide. - Power Cord
– 8 different “C-AC” single power cords (and 3 “Y” power cords) for each power
socket. - Optional Accessories – TBUS Brackets, K-ABLE Box Cable
Reels, Step-In Modules and Controllers are available. - Retractable Lid
– Manually slides into unit. - Connector Depth – Adjustable.
- Installation Requirement – Table cutout of 225mm x 123mm (8.87″ x
4.85″). - Dimensions – Top plate: 24.3cm x 14.0cm (9.6″ x 5.5″) W, D;
Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7″ x 4.0″ x 5.1″) W, D, H. - Weight
– 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx. - Size – T-BUS®
- Color – Brushed Clear
