Description

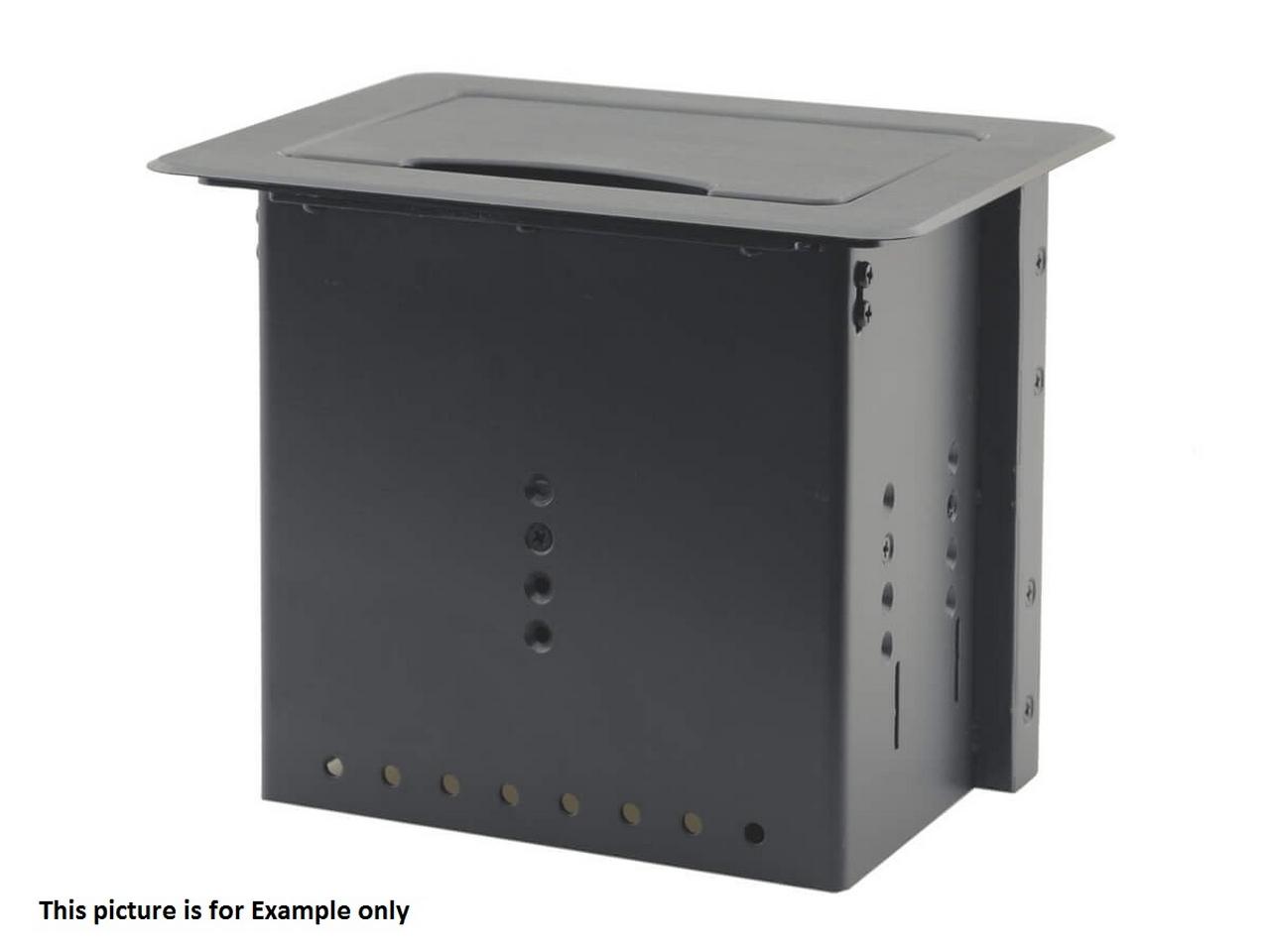

The TBUS-5xl is the enclosure of a new modular system with a retractable lid. A
complete TBUS system requires the enclosure, an inner frame, a power socket, inserts
and a power cord.
NOTE: The TBUS enclosure, power socket, power cord &
inserts are purchased separately.
- Inner Frame – 2 different “T5F”
inner frame options are available that can accommodate a combination of up to 4 power
sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer
TOOLS. - Power Sockets – 8 different “TS” single power socket options
are available to accommodate the power requirements worldwide. - Power Cord
– 8 different “C-AC” single power cords for each power socket. - Optional Accessories – TBUS Brackets, K-ABLE Box Cable Reels, Step-In
Modules and Controllers are available. - Retractable Lid – Manually
slides into unit. - Connector Depth – Adjustable.
- Installation Requirement – Table cutout of 158mm x 123mm (6.23″ x 4.85″).
- Dimensions – Top plate: 17.6cm x 14.0.4cm (6.9″ x 5.5″) W, D;
Enclosure: 15.4cm x 10.2cm x 13.0cm (6.1″ x 4.0″ x 5.1″) W, D, H. - Weight
– 0.9kg (2.0lbs) approx.; table clamps: 0.25kg (0.55lbs) approx. - Size – T-BUS®
- Color – Brushed Clear
