Description

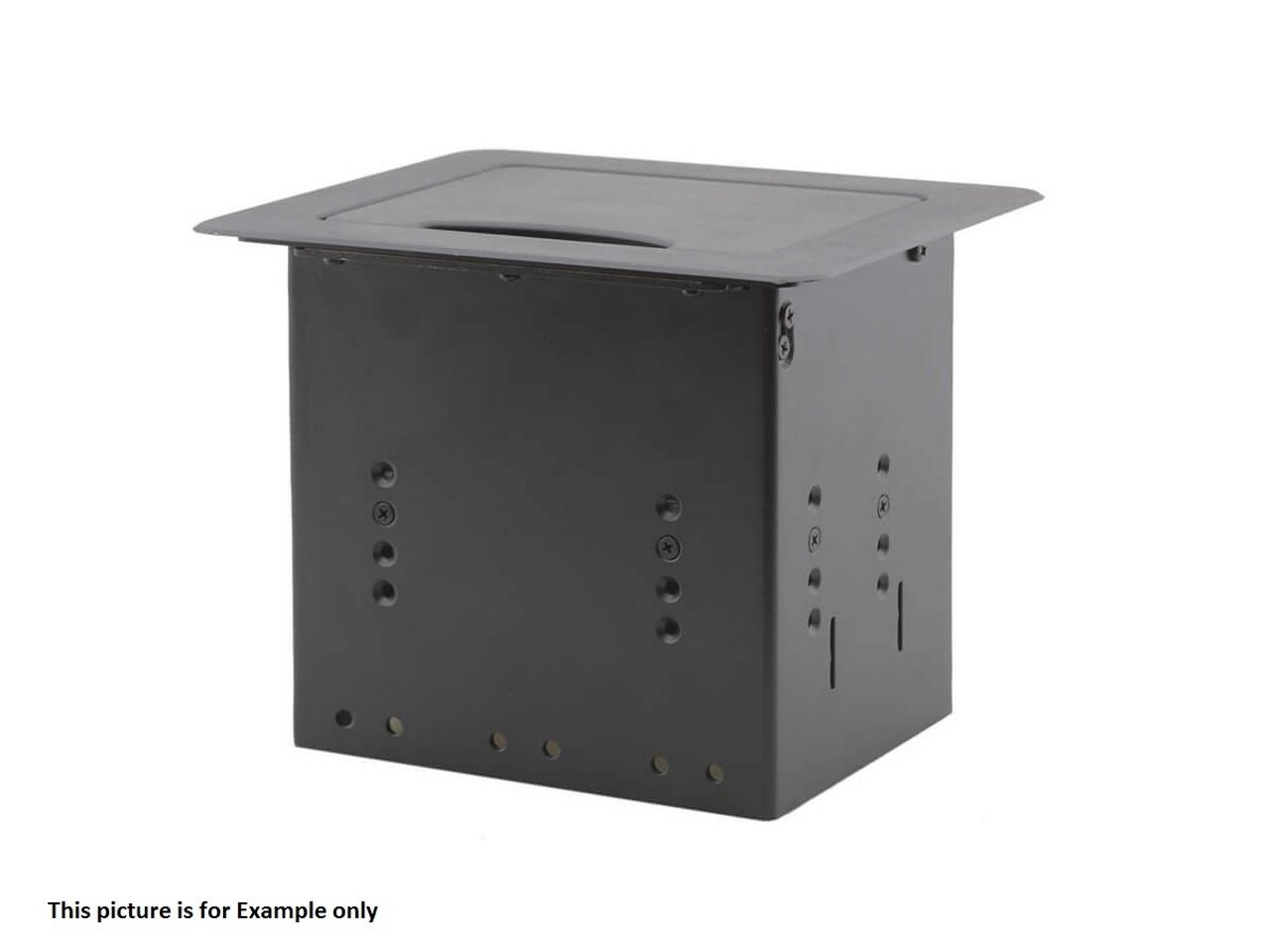

The TBUS-3xl is the enclosure of a new modular system with a tilt-up lid. A complete
TBUS system requires the enclosure, an inner frame, a power socket, inserts and a
power cord.
NOTE: The TBUS enclosure, power socket, power cord &
inserts are purchased separately.
- Inner Frame – 3 different “T3F”
inner frame options are available that can accommodate a combination of up to 4 power
sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer
TOOLS. - Power Sockets – 8 different “TS” single power socket options
are available to accommodate the power requirements worldwide. - Power
Cords – 8 different “C-AC” single power cords for each power socket. - Optional Accessories – TBUS Brackets, K-ABLE Box Cable Reels, Step-In
Modules and Controllers are available. - Cover – Manually opens &
closes. - Connector Depth – Adjustable.
- Installation
Requirement – Table cutout of 158mm x 123mm (6.23″ x 4.85″). - Dimensions – Top plate: 17.6cm x 14.0cm (6.9″ x 5.5″) W, D; Enclosure:
13.6cm x 10.2cm x 13.0cm (5.4″ x 4.0″ x 5.1″) W, D, H. - Weight
– 1.02kg (2.25lb) approx.; table clamps: 0.257kg (0.566lbs); template: 0.125kg
(0.275lbs). - Size – T-BUS®
- Color – Brushed Clear
