Description

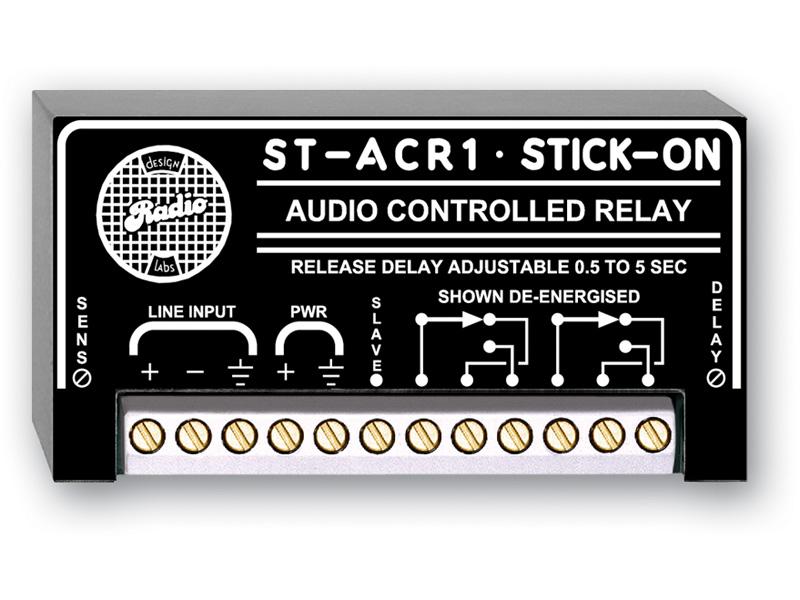

The ST-ACR1 is an Audio Controlled Relay in the STICK-ON® series. These products are designed for quick, convenient installation, and reliable operation in a variety of control applications. The ST-ACR1 is designed to switch on line level sources.
Two multiturn trimmers are provided. The SENS potentiometer adjusts the audio input sensitivity. A threshold LED facilitates accurate adjustment. The module can be set to trigger on signals between -30 dBu and 0 dBu. The DELAY control sets the time required for the relay to release when the audio drops below the threshold.
The delay adjustment range for the ST-ACR1 is from 0.5 seconds to 5 seconds.
Features:
- Switching Controlled by Audio Signal
- Sensing of Line-Level Signal
- Silence Sensing
- DPDT Switching Contacts
- Open-Collector SLAVE Output
