Description
This listing is for RU-VDA4B (BNC) only. Use description below as a general reference.

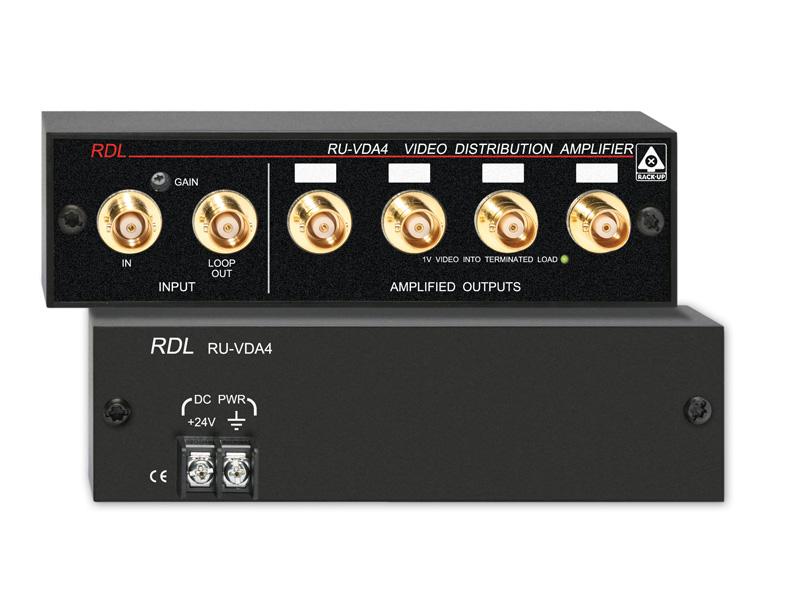

The RU-VDA4B is the ideal choice in most applications where video signals need to be distributed. Video inputs and outputs are made on the front panel via BNC, PHONO, or type F jacks. Power connections are made using full-size barrier block terminals on the rear panel.
The RU-VDA4B has two jacks in the input stage. One jack is for the input signal; the other is a loop through output of the source signal.The input stage is bridging. If 75 O termination of the input signal is required, the termination is plugged onto the LOOP OUT jack.
Gain is user adjustable from the front panel. The GAIN potentiometer allows adjustment from -1 dB to +7 dB.
Features:
- Video Distribution with 4 Outputs
- Adjustable Gain Amplification
- Input LOOP OUT Jack
- Video 1 Volt Signal Indicator
- 10 MHz Bandwidth, NTSC or PAL
- 1/3-Rack, High-Density Rack Mounting
