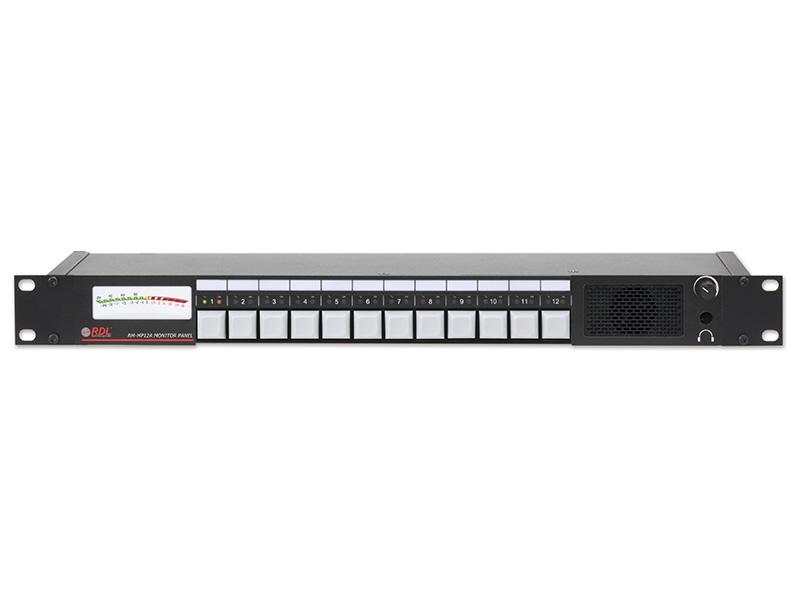

RDL RM-MP12A Audio Monitor Panel/12 Line or Speaker Inputs

Description

This listing is for RM-MP12A only. Use description below as a general reference.

Each RM-MP12 input may be individually calibrated for unbalanced consumer, balanced professional, 8 Ohm speaker line or constant voltage speaker lines. There is a variable intensity LED on the front panel to show audio presence for each input. If the RM-MP12 is set to the interlocking operating mode, front-panel pushbuttons select one of the twelve inputs to feed the calibrated meter, front-panel speaker (or external speaker if connected) and headphone jack. In the mixing mode, the buttons allow the use to mix multiple sources. The front-panel volume knob controls the audio level of the front-panel headphone jack, front-panel speaker, external speaker output and variable line level (+4 dBu) rear-panel output. A separate fixed line-level output is provided.

Features:

• Twelve Individually Selectable Audio Inputs
• Selectable Operating MODE Provides Interlocking Source Selection or Mixing Multiple Sources
• LED Above Each Button to Show Selected Source
• VU Ballistic LED Above the Button for Each Input
• Calibrated Front-Panel Meter Display
• Front-Panel Speaker and Headphone Jack
• Front-Panel VCA Control for Headphone and Speaker Output Levels
• Internal 4.5 W RMS Power Amplifier and Speaker
• Audio Inputs and Outputs on Detachable Terminal Blocks
