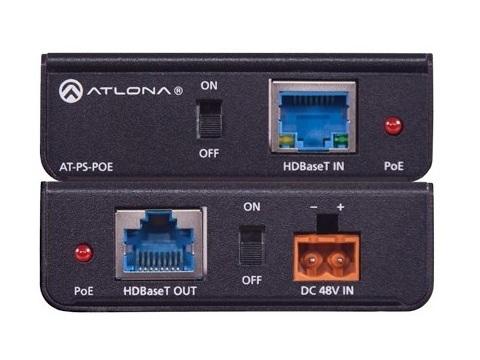

Atlona AT-PS-POE Power Over Ethernet Mid-Span Power Supply

Description

The AT-PS-POE is a 48 VDC mid-span PoE injector designed to send remote power to HDBaseT™ products that require IEEE 802.03af Power over Ethernet. It supports the combined action of two PoE-powered products when put between HDBaseT transmission lines. It has two power switches which send power upstream or downstream selectively. The two power streams can operate at the same time.

With a data speed of 10.2 Gbps, it allows resolutions up to 4K/UHD, multiple channel audio formats, compatible with all HDCP signals and enables full 3D pass-through. It is enclosed in a small mounting bracket and easily placed anywhere between the receiver and transmitter to power PoE compatible devices.

Power Sourcing Equipment (PSE) devices are powered by an internal power supply or plugged to an external power supply via HDBaseT cable. The HDVS Series extends power from the receiver while the UHD-EX Series extends power from the transmitter. It enables combined use of HDVS-150 and 200 Series switchers with UHD-EX Series receivers. It is also compatible with non-PoE products that require a new receiver like displays or AT-PRO2HD1616M matrix switchers. These applications ensure the AT-PS-PoE powers the AT-UHD-EX-100CE-RX at a new point in the installation. Ideal use in meeting spaces and classrooms.
