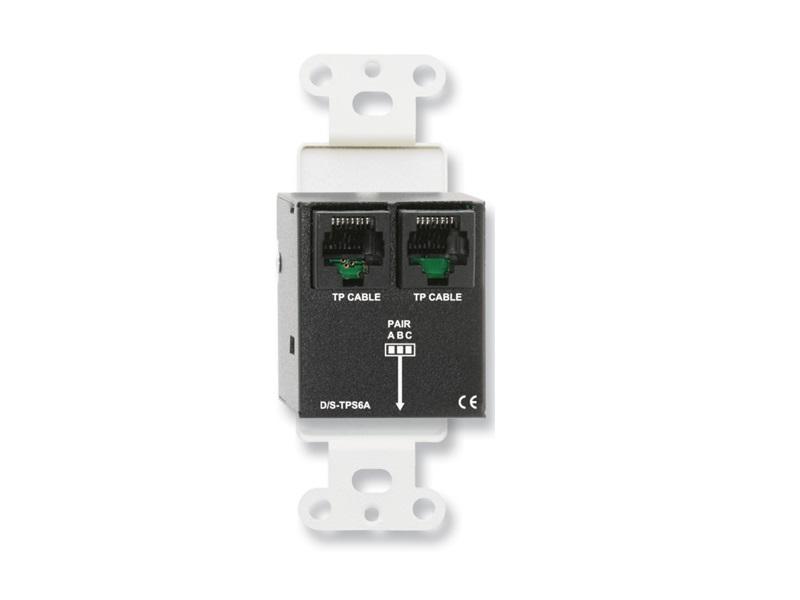

RDL D-TPS6A Passive Single-Pair Extender (Transmitter)/Format-A/stereo jack in

Description

This listing is for D-TPS6A only. Use description below as a
general reference.

The -TPS6A is a single-pair
audio sending module compatible with RDL® Format-A twisted pair products. The front
panel features two gold plated phono jacks intended for stereo consumer line level
audio sources. A studio-quality transformer provides isolation between the audio
source and the RJ45 TP CABLE.

The -TPS6A is a single-pair sender, feeding the
input signal to the cable pair set on the rear-panel switch during installation. This
module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to
accept signals and power from other mic-level or line-level Format-A senders. Two
other single-pair senders may be chained to a TP CABLE jack, or a single two-pair
sender may be connected. If three single-pair senders are connected together, each
sender must feed a different pair: A, B or C. The -TPS6A must be set to feed pair A if
it is connected together with an RDL two-pair sender that feeds stereo audio on pairs
B and C.

The -TPS6A is a passive module that does not require power to
operate. If power is present on a cable connected to a TP CABLE jack, that power is
passed through to the modules connected to the other TP CABLE jack.

Features

• Stereo Audio Input Combined to Mono Output
• Input on Dual RCA Jacks
• Switch Selects which RJ45 Pair (A, B or C)
  is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Passive Circuitry Does Not Require Power
• Galvanic Isolation through a
  Studio-Quality Transformer
• Daisy-Chain with Single-Pair or Two-Pair Format-A
  Senders
