Description

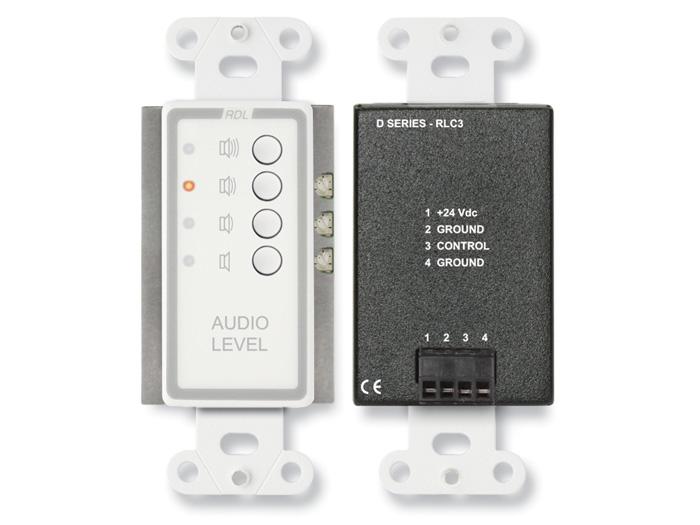

The D-RLC3 is designed to directly interface with RDL® control modules which feature a 0 to 10 Vdc control input utilizing an external 10 k? resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The D-RLC3 has four momentary pushbuttons, each corresponding to one of four levels selected.
In a typical installation, the D-RLC3 is wired to an RDL VCA. The D-RLC3 runs from the same power supply as the VCA. When power is applied, the D-RLC3 defaults to the NORM level. One higher level, HIGH, and two lower levels, LOW and MIN, are then available for selection. When the DB-RLC3 is set to the HIGHposition, the VCA is at maximum gain. The NORM, LOW, and MIN levels are each adjustable by the installer using trimpots on each side of the D-RLC3´s body. Once installed, the adjustments are concealed from the user.
Features
- Remote Selection of Preset Audio Levels
- Pushbutton Level Selection
- 4 Selectable System Levels, or 3 Levels Plus Off
- LED Indication (Green)
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
