RDL DB-CIJ3 Consumer Audio Extender with Input Jacks/Mono/Black

Description

This listing is for DB-CIJ3 only. Use description below as a general
reference.

The D/S-CIJ3 is the ideal choice in installations
requiring the passive mixing of two unbalanced line level audio sources to feed a mono
balanced (or unbalanced) audio line.

The D/S-CIJ3 is a complete unbalanced

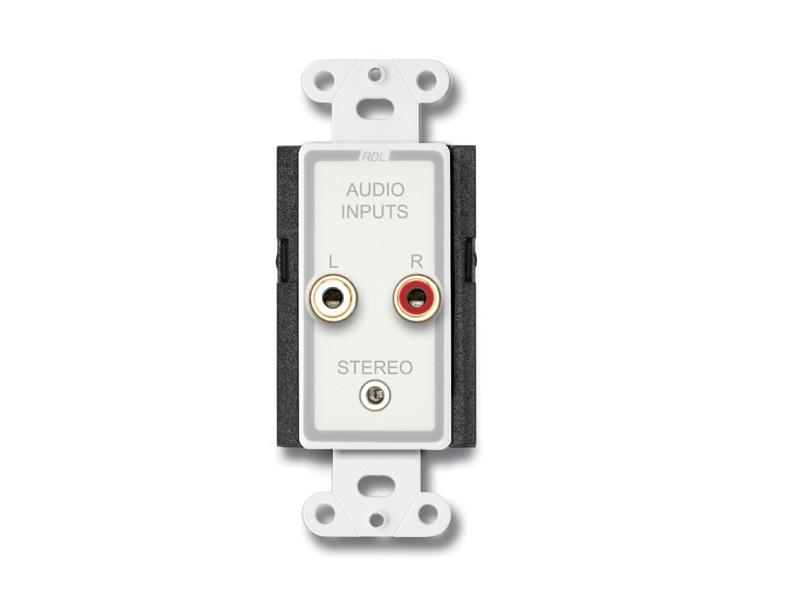

line-level audio input module. The front panel features two gold plated phono jacks
and a single stereo mini-jack, intended for mono or stereo consumer level sources. An
input signal may be connected to either the phono jacks or to the mini-jack. The left
and right signal inputs are combined and balanced through audio transformers

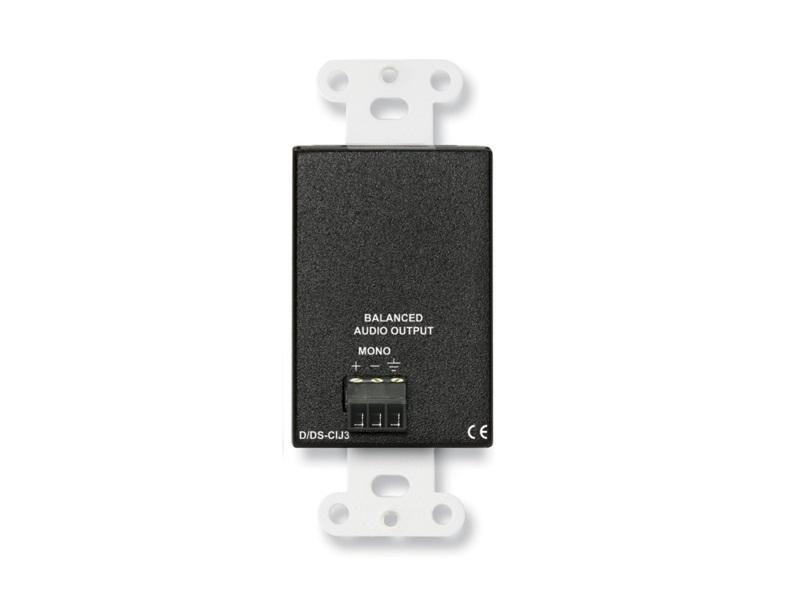

configured to reject induced hum. A mono line-level output is provided on the rear-
panel detachable terminal block for connection to a 10 kO or higher input impedance
line-level module or equipment input.

Features

• Stereo Inputs to Mono Output
• Stereo Inputs on RCA Jacks and Stereo Mini-
  Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer
  Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line
  Inputs
• Line-Level Output to Feed 10 kO Equipment Inputs
• Output
  Connections on Detachable Terminal Block
• Mix Stereo Inputs to Mono Balanced
• Available in RDL White/Gray (D-CIJ3)
• Available in Stainless Steel
  (DS-CIJ3)
