DESCRIPTION

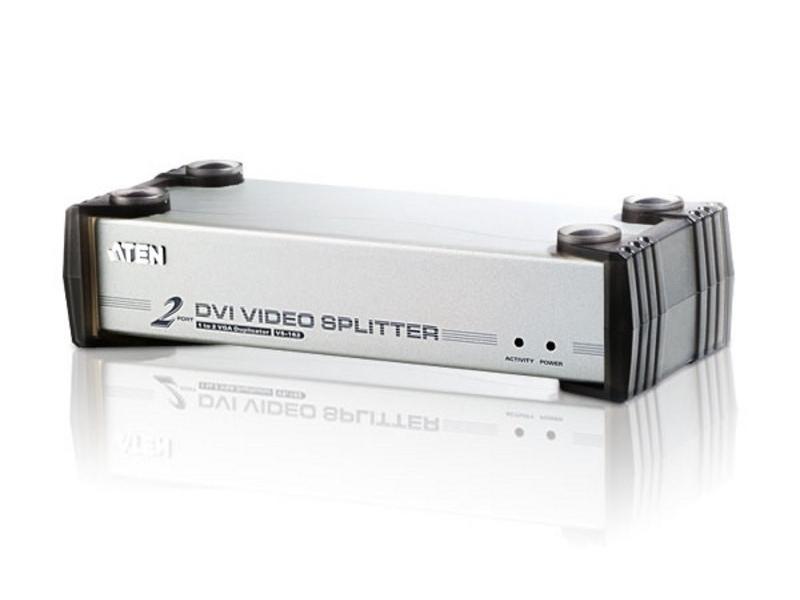

VS162 KVM Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
FEATURES
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels – provides up to 8 video signals.
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
- Installs in minutes.
- Maintains highest single link video resolution (up to 1920 x 1200).
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- HDCP Compliant.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
SPECIFICATIONS
| Housing | |
| Case | Metal |
| Power Consumption | DC5.3V, 3.4W |
| Video Resolution | 1920×1200 |
| Operating Temperature | 32F~122F (0C~50C) |
| Storage Temperature | -4F~140F (-20C~60C) |
| Humidity | 0~80% RH, Noncondensing |
| Signal Type | DVI-Digital and DVI-Analog |
| Connectors (Input) | 1 x DVI Female, 1 x Earphone Jack Female |

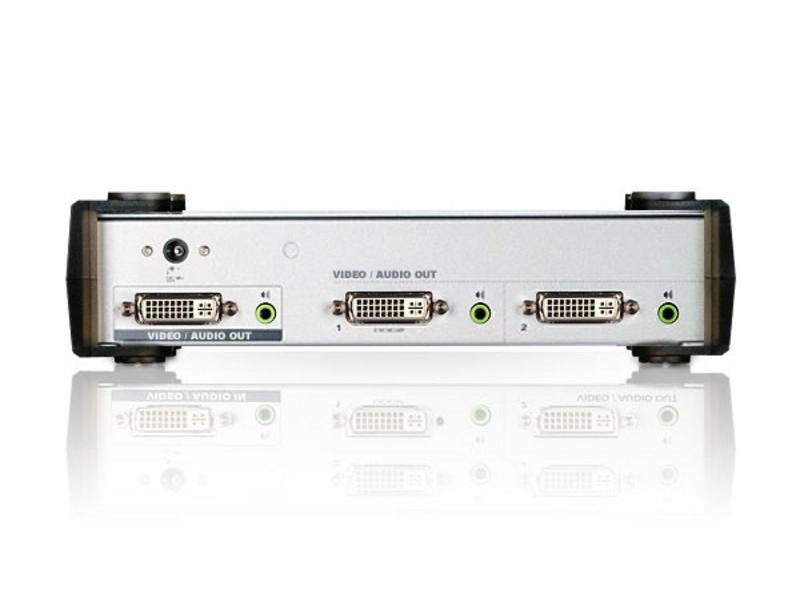

| Connectors (Output) | 2 x DVI Female, 2 x Earphone Jack Female |
| Video connections | |
| Input | 1 x DVI Female |
| Output | 2 x DVI Female |
| Power Adaptor Part | |
| for North America | 0AD8-0605-241G |
| for Continental Europe | 0AD6-1605-241G |
| for UK | 0AD4-3605-241G |
| Unit Dimensions | |
| Width | 3.5 in. (8.8 cm) |
| Height | 2.2 in. (5.6 cm) |
| Length | 8.3 in. (21.0 cm) |
| Unit Package Dimensions | |
| Width | 11.25 in. |
| Height | 7 in. |
| Depth | 4 in. |
| Master Carton | |
| Width | 12.0 in. (30.5 cm) |
| Height | 8.5 in. (21.6 cm) |
| Depth | 20.5 in. (53.0 cm) |
| Master Carton Qty. | 5 |
| Weight | |
| Master Carton Wt. | 13.6 lb. (6.2 Kg) |
| Unit Pack Wt. | 2.6 lbs. |
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
Package Contents
- 1x 2-Port DVI Video Splitter
- 1x Power Adapter
- 1x User Manual
