DESCRIPTION

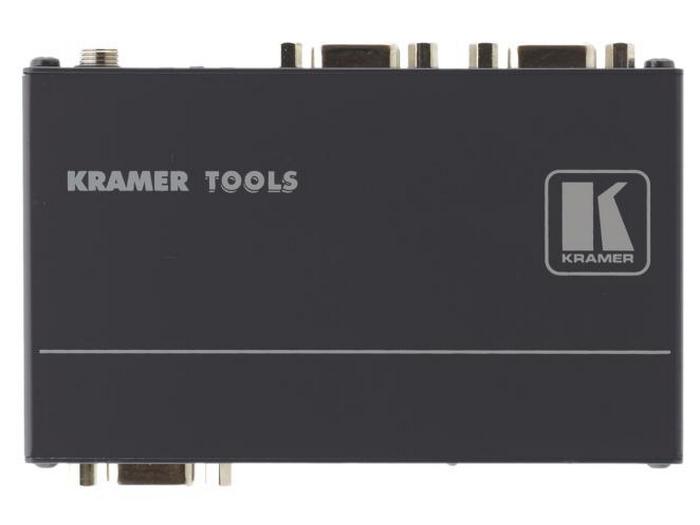

The VP-200K is a distribution amplifier for computer graphics signals up to and exceeding UXGA. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.
- High Bandwidth – 400MHz (-3dB).
- HDTV Compatible.
- ID Bit Control.
- Kr-isp® Advanced Sync Processing – Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp® advanced sync processing can be enabled or disabled.
- EDID PassThru – Passes EDID/HDCP signals from source to display.
- Selectable Sync Input Impedance – 75ohm (video), 510ohm (Graphics/TTL).
- DC Coupling.
- 3ft 15-pin HD Cable Included.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Related Products: VP-300K , VP-400K This product replaces the VP-200 , VP-200N , VP-200NK , VP-250
SPECIFICATIONS

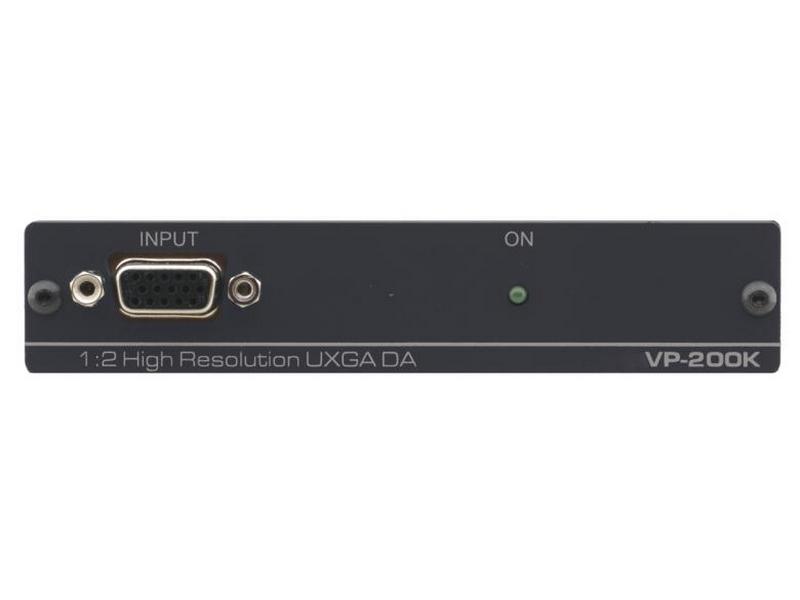

| INPUT: | 1 UXGA on an 15-pin HD connector. |

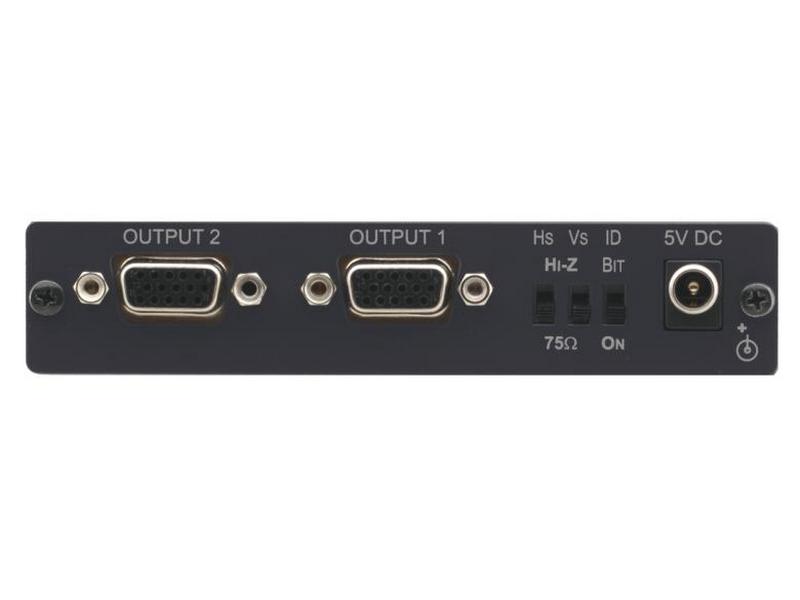

| OUTPUTS: | 2 UXGA on 15-pin HD connectors. |
| MAX. OUTPUT LEVEL: | 2.2Vpp. |
| BANDWIDTH (-3dB): | 400MHz. |
| DIFF. GAIN: | 0.03%. |
| DIFF. PHASE: | 0.03Deg. |
| K-FACTOR: | <0.05%. |
| S/N RATIO: | 72dB @5MHz. |
| CONTROLS: | ID BIT switch; analog/TTL switches for setting the sync. |
| COUPLING: | DC. |
| POWER SOURCE: | 5V DC, 130mA. |
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76″ x 2.83″ x 0.95″) W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: | Power supply (5V/2.6A), mounting bracket. |
| OPTIONS: | RK-3T 19″ rack adapters. |
