DESCRIPTION
The VM-3VN is a distribution amplifier for composite video signals. The unit takes one input, provides correct buffering and isolation and distributes the signal to three identical outputs.
- High Bandwidth – 430MHz (-3dB).
- Selectable Input Signal Termination.

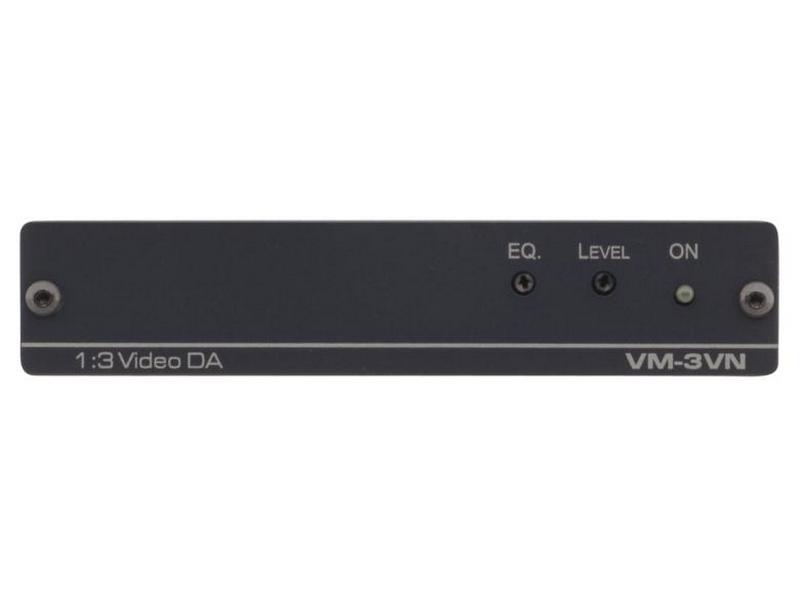

- Level (Gain) & EQ (Peaking) Controls.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
This product replaces the VM-3Vxl
SPECIFICATIONS

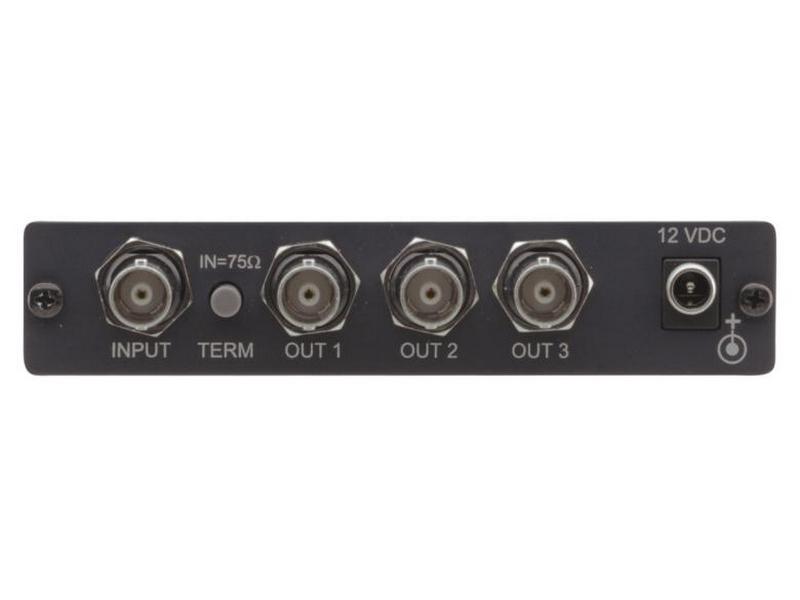

| INPUT: | 1 composite video on a BNC connector. |
| OUTPUTS: | 3 composite video on BNC connectors. |
| MAX. OUTPUT LEVEL: | 1.8Vpp. |
| BANDWIDTH (-3dB): | 430MHz. |
| DIFF GAIN: | 0.12%. |
| DIFF PHASE: | 0.03Deg. |
| K-FACTOR: | <0.05%. |
| S/N RATIO: | 74.3dB. |
| CONTROL: | Level: -1.6 to +6dB; Equalization: 0 to +6dB. |
| COUPLING: | AC. |
| POWER SOURCE: | 12V DC, 27mA. |
| DIMENSIONS: | 11.7cm x 6cm x 3.2cm (4.6″ x 2.4″ x 1.3″) W, D, H. |
| WEIGHT: | 0.28kg (0.62lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK-3T 19″ rack adapter. |
