Description
DESCRIPTION

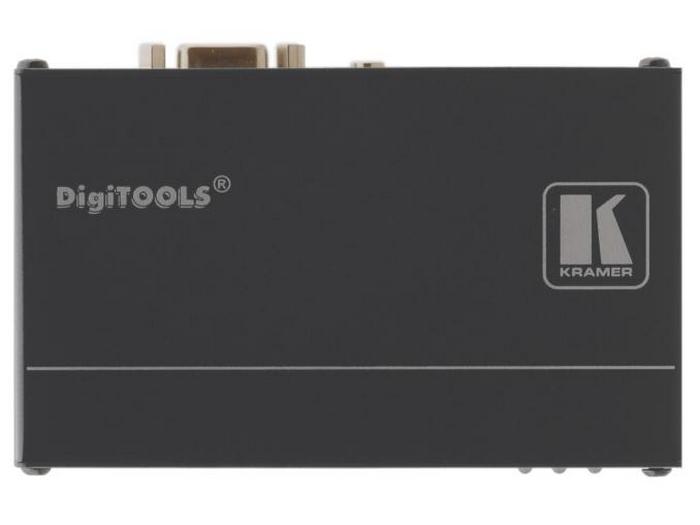

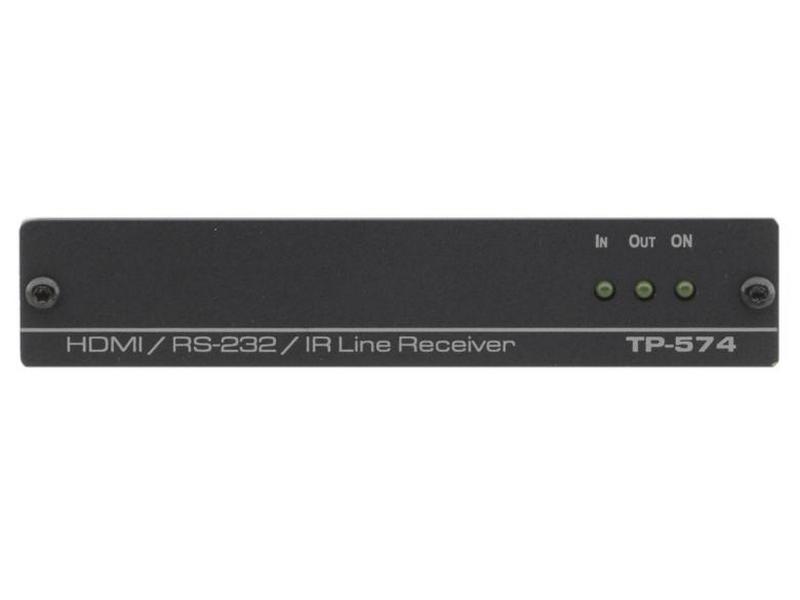

- The TP-574 is a twisted pair receiver for HDMI, bidirectional RS-232 and infrared signals. The TP-573 converts the input signals to a twisted pair signal and the TP-574 converts it back to HDMI, RS-232 and infrared signals.
- Max. Data Rate – 1.65Gbps.
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support – HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD).
- 3D Pass-Through.
- EDID PassThru – Passes EDID/HDCP signals from source to display.
- Bidirectional RS-232 & IR Interface. – 38400 max baud rate.
- System Range – Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat723 cable.
- Cable – Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer’s BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Power Connect System™ – A single connection to the transmitter powers both units.
- Compact DigiTOOLS® – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Rack Adapters: 19″ (1U): RK-3T Compatible Transmitters: TP-573
SPECIFICATIONS
| INPUTS: | 1 CAT 5 IN on an RJ-45 connector. |

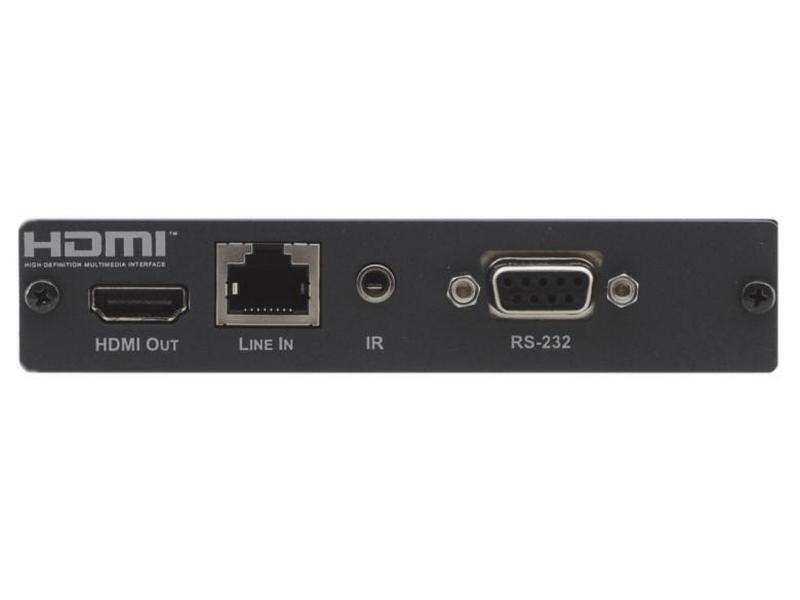

| OUTPUTS: | 1 HDMI connector, 1 bidirectional IR port on a 3.5mm mini jack, 1 bidirectional RS-232 port on a 9-pin D-sub connector. |
| BANDWIDTH: | Supports up to 1.65Gbps bandwidth per graphic channel. |
| COMPLIANCE WITH HDMI STANDARD: | Supports HDMI and HDCP. |
| POWER SOURCE: | 12V DC from TP-573. |
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76″ x 2.83″ x 0.95″), W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: | 12V DC power supply. |
| OPTIONS: | RK-3T 19″ rack mount, Kramer remote external receiver, Kramer BC DGKat524 (CAT 5 24AWG) and BC DGKat623 (CAT 6 23AWG) cables. |
