Description

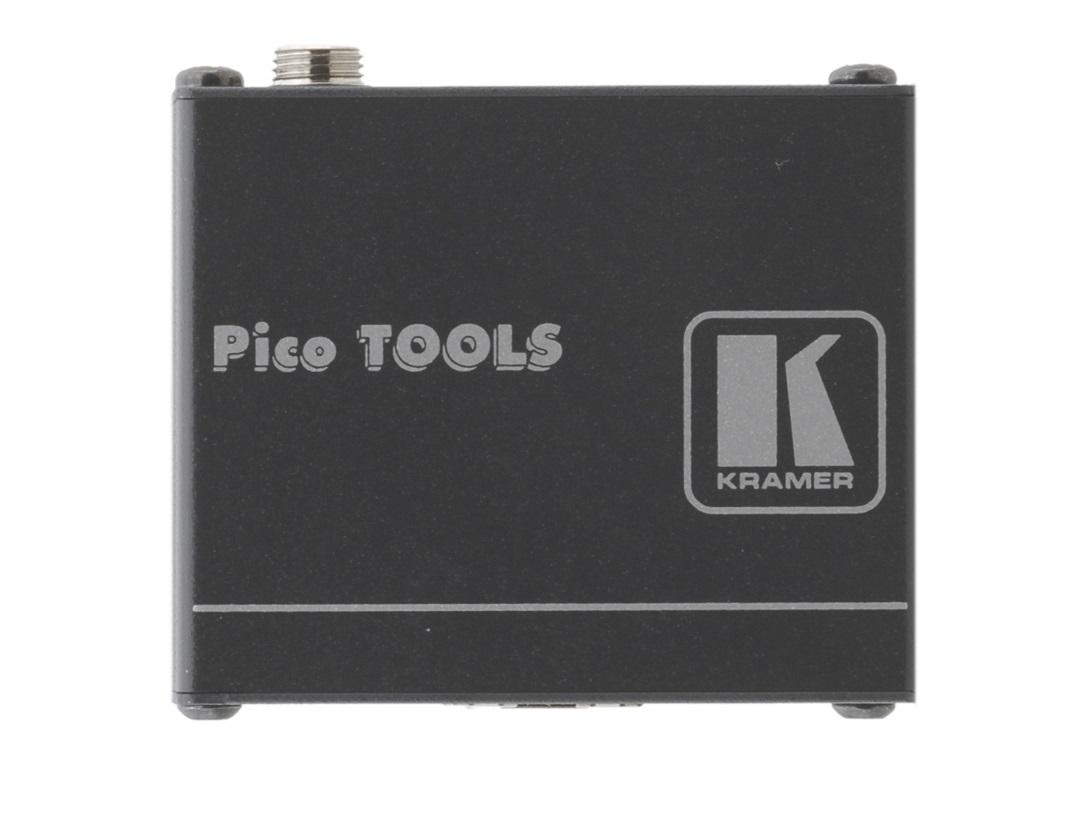

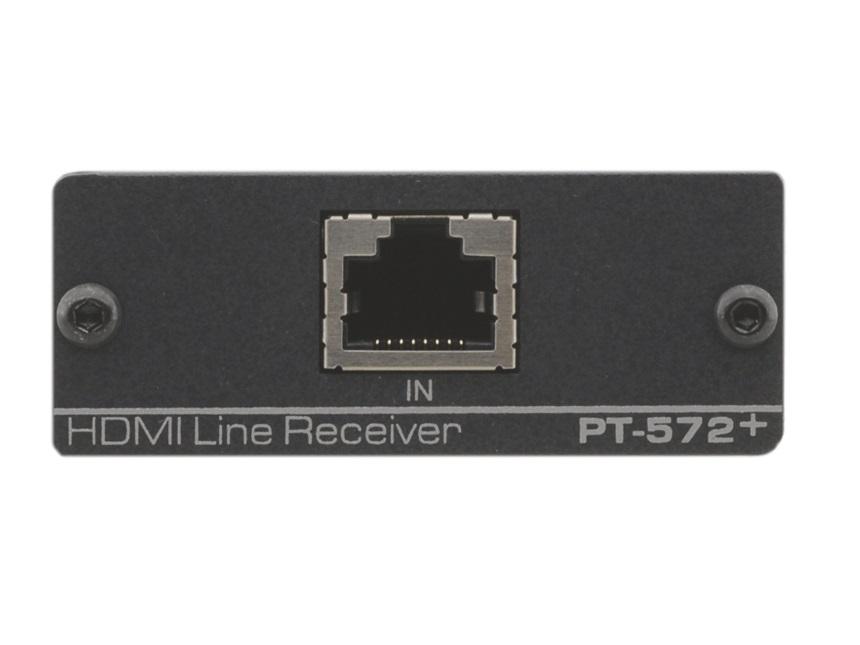

The PT-572+ is a twisted pair receiver for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572+ converts the twisted pair signal back to an HDMI signal.
- Max. Data Rate – 1.65Gbps.
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support – HDMI (V.1.4 with 3D, Deep Color, x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD).
- 3D Pass-Through.
- DGKat™ Signal Integration – Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
- System Range – Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat723 cable.
- Cable – Requires Shielded Twisted Pair (STP) cable. For optimum range and performance use, use Kramer’s BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- EDID PassThru – Passes EDID/HDCP signals from source to display.

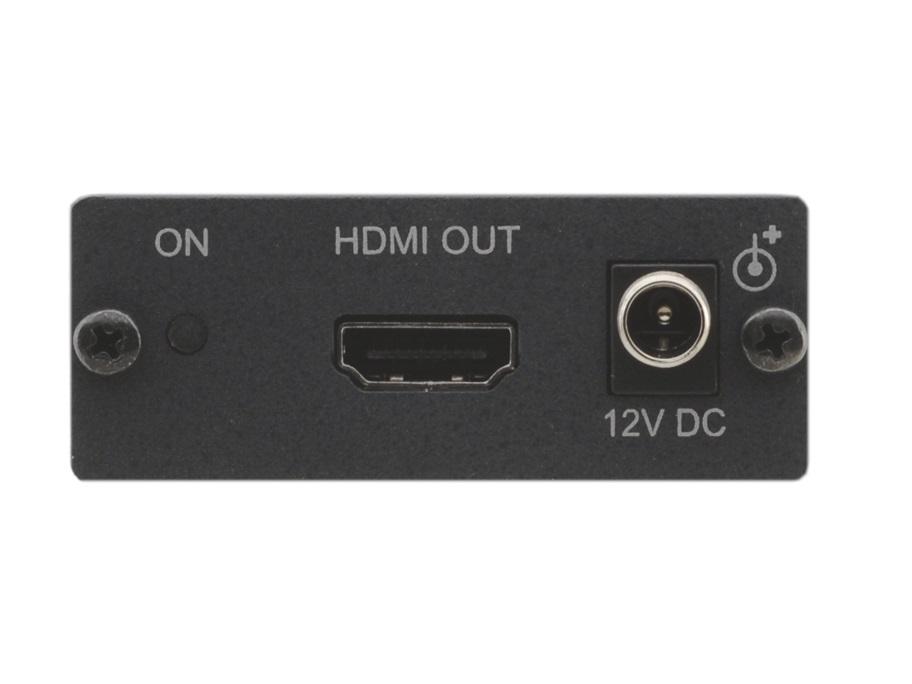

- Status LED – Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.
- Power Connect™ System – A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other.
- Ultra-Compact Pico TOOLS™ – 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.
This product replaces the PT-572
