Description
DESCRIPTION
The 900N is a high-performance power amplifier for balanced or unbalanced stereo audio signals. Either input can deliver a speaker output of 8.4 watts RMS power per channel into a 4ohm load.

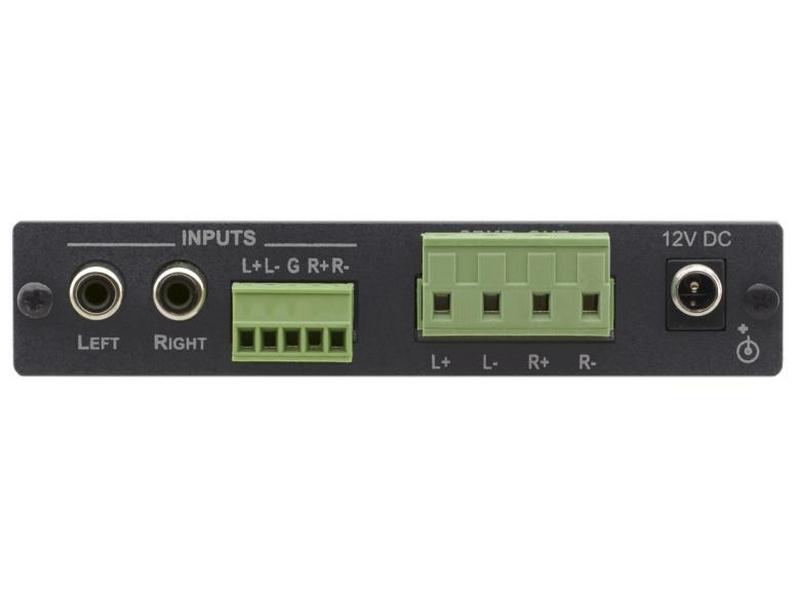

- Inputs – 1 unbalanced (2 RCA), 1 balanced (terminal block).
- Output – 4-pin terminal block (speakers).
- S/N Ratio – 55dB.

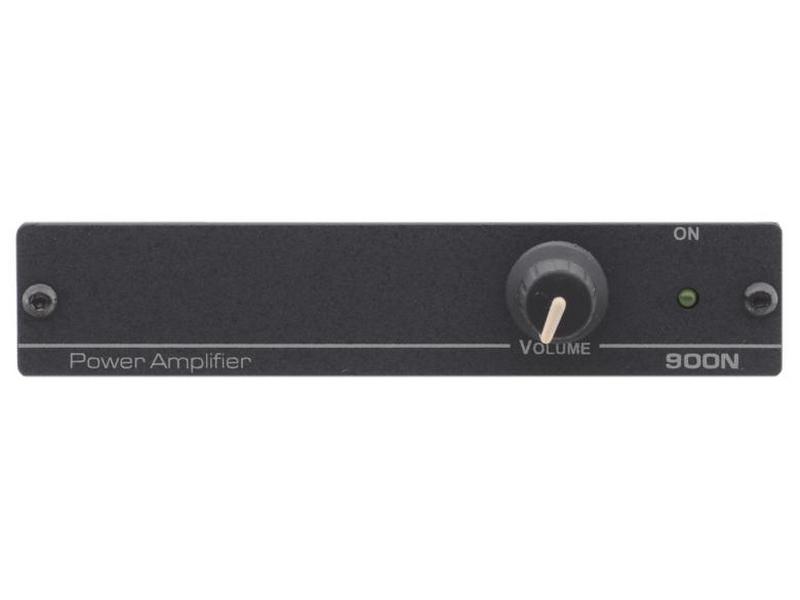

- Controls – Volume knob, On LED.
- Special Note – Before turning on the 900N, make sure the volume is turned down to the minimum.

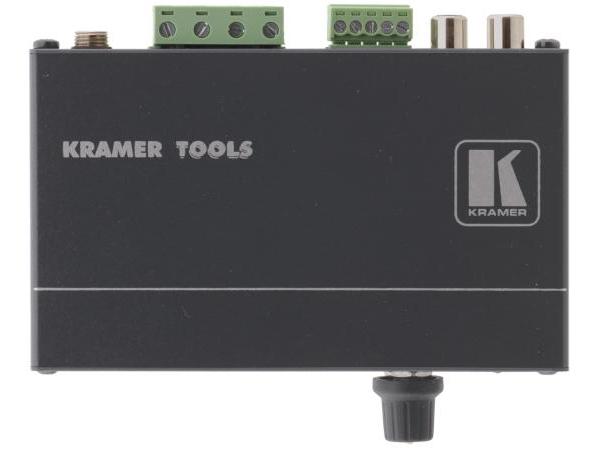

- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
This product replaces the 900
SPECIFICATIONS
| INPUTS: | 1 unbalanced stereo audio on RCA connectors; 1 balanced stereo audio on a 5-pin terminal block connector. |
| OUTPUTS: | 1 stereo loudspeaker output on a 4-pin terminal block connector. |
| OUTPUT POWER: | 8.4W RMS per channel into a 4ohm load. |
| OUTPUT MUSIC POWER: | 35W RMS per channel into a 4ohm load. |
| BANDWIDTH (-3dB): | 24kHz. |
| S/N RATIO: | 55dB. |
| CONTROLS: | –40dB to +19dB until the compression threshold. |
| COUPLING: | Input: AC; speakers out: DC. |
| AUDIO THD + NOISE: | 0.5% @1kHz. |
| AUDIO 2nd HARMONIC: | 0.04% @1kHz. |
| POWER SOURCE: | 12V DC, 2.1A. |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7″ x 2.95″ x 0.98″) W, D, H. |
| WEIGHT: | 0.3kg (0.66lbs) approx. |
| ACCESSORIES: | Power supply, mounting bracket. |
| OPTIONS: | RK-3T 19″ rack adapter. |
