DESCRIPTION

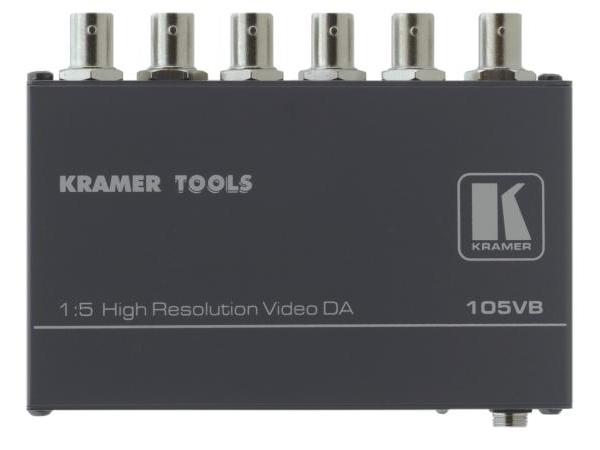

The 105VB is a high-performance distribution amplifier for composite video signals. It takes one input, provides correct buffering and isolation and distributes the signal to five identical outputs.
- Bandwidth – 400MHz (-3dB).
- Connectors – BNC (105V has RCAs).
- Level (Gain) Control.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
SPECIFICATIONS
| INPUT: | 1 composite video, 1Vpp/75ohm on a BNC connector. |

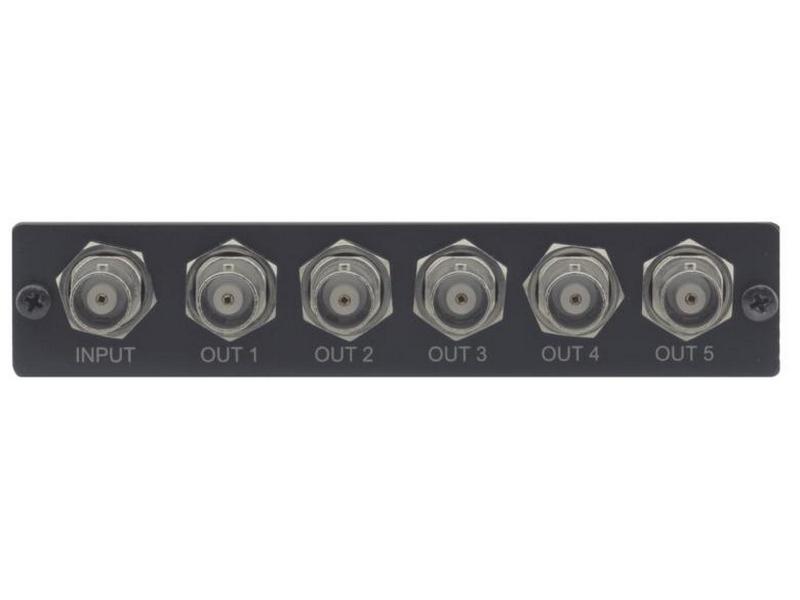

| OUTPUTS: | 5 composite video, 1Vpp/75ohm on BNC connectors. |
| MAX. VIDEO OUTPUT: | 2Vpp. |
| VIDEO BANDWIDTH (-3dB): | 400MHz. |
| DIFF. GAIN: | 0.1%. |
| DIFF. PHASE: | 0.1Deg. |
| K-FACTOR: | <0.05%. |
| S/N RATIO: | 80dB. |
| CONTROL: | Up to +6dB. |
| COUPLING: | AC. |

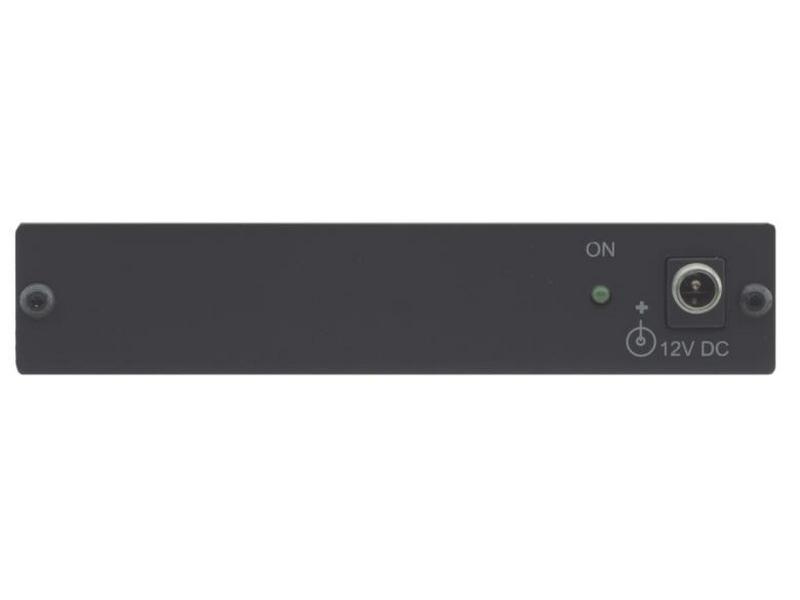

| POWER SOURCE: | 12V DC, 100mA. |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7″ x 2.95″ x 0.98″) W, D, H. |
| WEIGHT: | 0.3kg (0.66lbs) approx. |
| ACCESSORIES: | Power supply, mounting bracket. |
| OPTIONS: | RK-3T 19″ rack adapter. |
