Gefen GTV-HDMI1.3-441N TV 4×1 Switcher for HDMI/RS232

Description

Route any of four (4) HDMI inputs to one (1) HDMI output

The GefenTV 4×1 Switcher for HDMI routes any of four (4) HD sources
to a single HDTV display. It supports resolutions up to 1080p Full HD

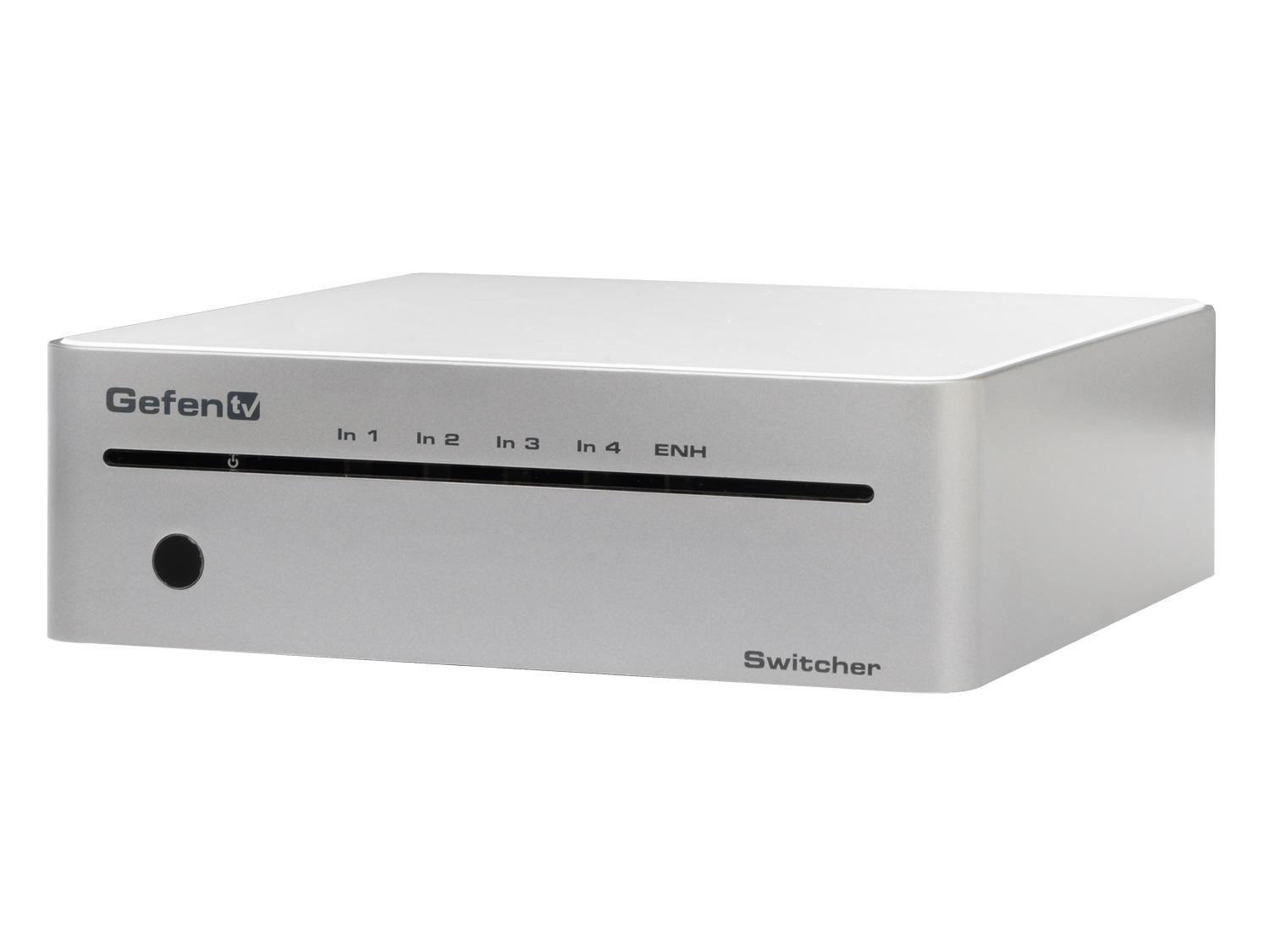

with multiple channel digital audio. The front panel LEDs show the
currently chosen source. This 4×1 Switcher features auto-switching: If
you connect or turn on a new source, the unit will automatically
switch to that input. The GTV-HDMI1.3-441N will revert to the previous
input once the user turns off or disconnects the current device.
Select any of the four (4) HD sources by the push-button, IR remote
control, or the RS-232 control. It allows DVI sources and DVI displays
with an HDMI-to-DVI adapter

How It Works

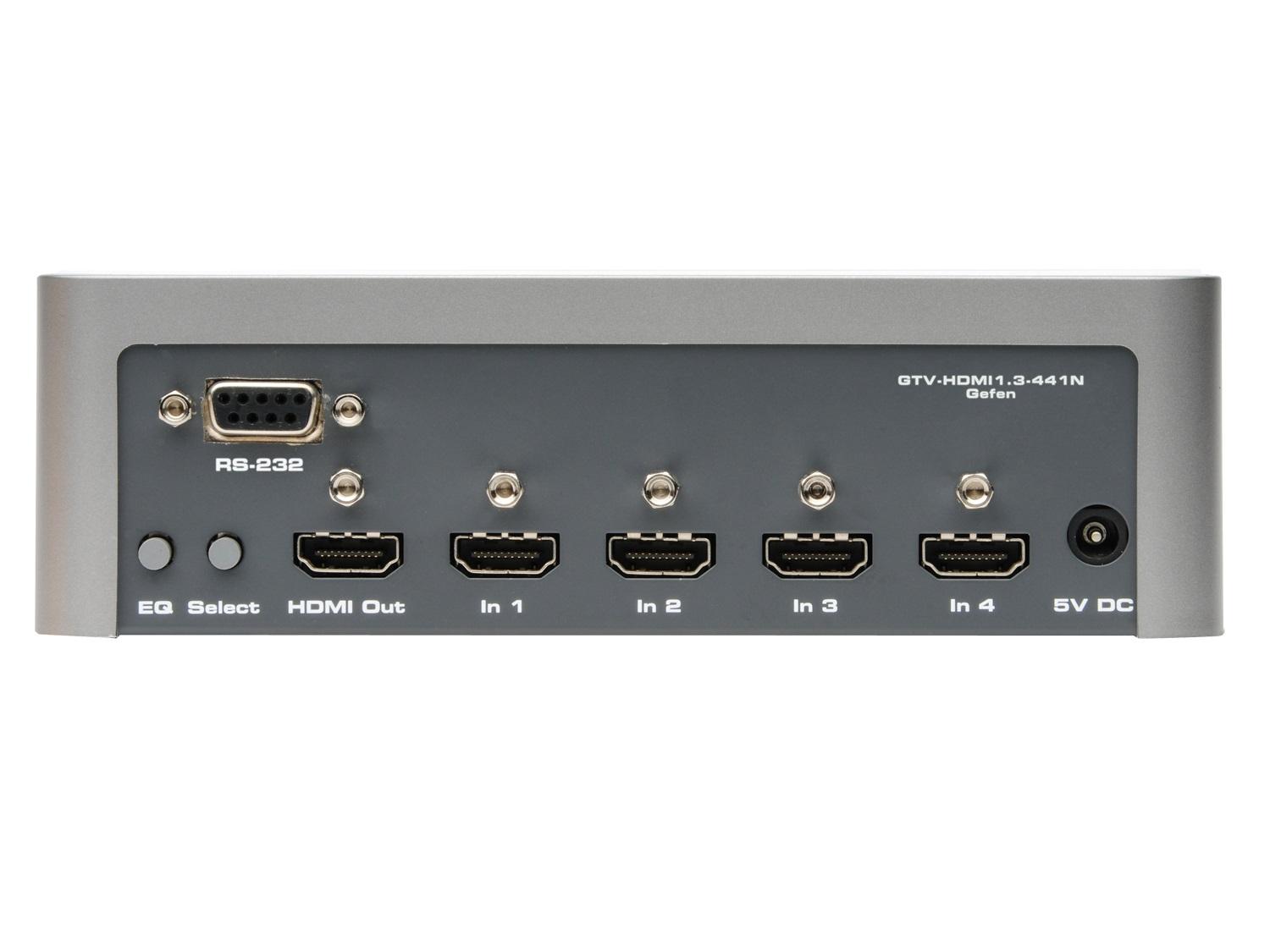

Connect up to four (4) HDMI sources to the GTV-HDMI1.3-441N
Switcher for HDMI with RS232 via the supplied cables. Link the HDTV
display to the HDMI output. Attach the 5V power supply to the
Switcher. Supply power to the source products and the display. The HD
source shows and will follow the selected current switching.
It is HDMI 1.3 Compliant. It supports Deep Color and 3DTV Pass-
Through. It features Lip-Sync Pass-Through and CEC Pass-Through. It
supports digital audio signals such as Dolby TrueHD and DTS-HD Master
Audio. The unit has maximum pixel clock of 225 MHz (up to 12 bit YUV
444 @ 1080p). It is Energy Star Compliant.

Note: This Switcher is fully HDCP-compliant.
